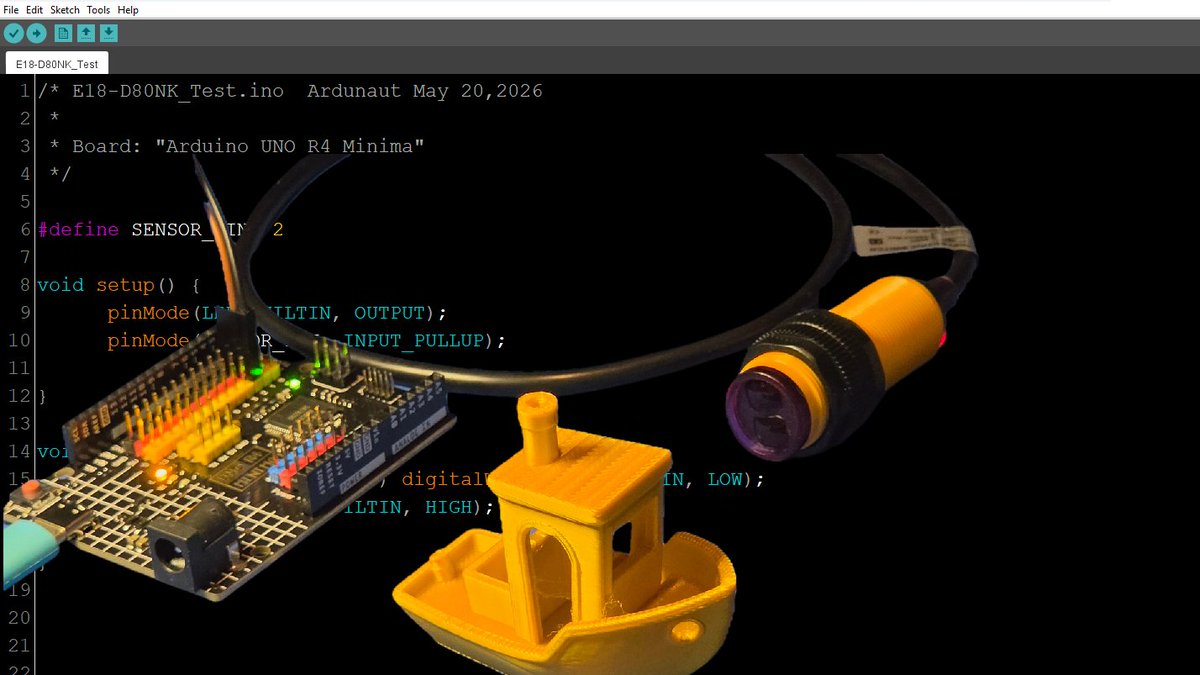

Benchy detected! Doing some tests to use E18-D80NK ir proximity sensors in simple model trains setups with the IMSAI 8048 replica. #IMSAI8048 #D8748H #D8749H #INTEL #Retrocomputing #MCS48 #Microcontroller

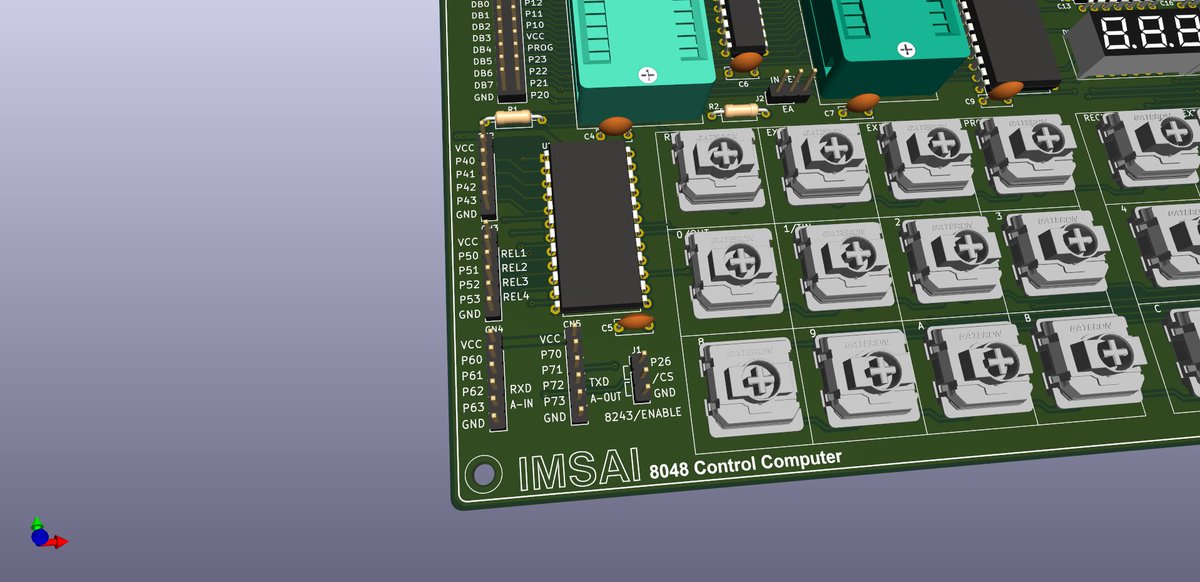

The relay module has arrived—time to test the relay routine from the IMSAI 8048 manual. #IMSAI8048 #D8748H #D8749H #INTEL #Retrocomputing #MCS48 #Microcontroller

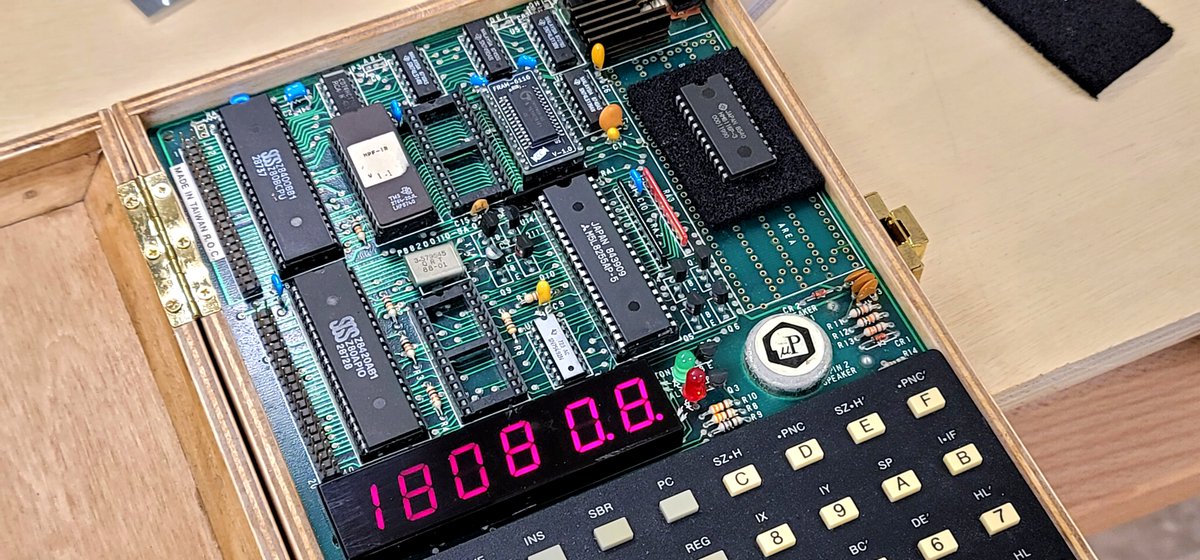

Replacing my vintage microprocessor trainer's RAM with FM16W08 F-RAM is the best way to enjoy those nostalgic routines without having to retype them or deal with the hassle of a cassette recorder or serial terminal. #IMSAI8048 #D8748H #D8749H #Retrocomputing #vintagecomputers

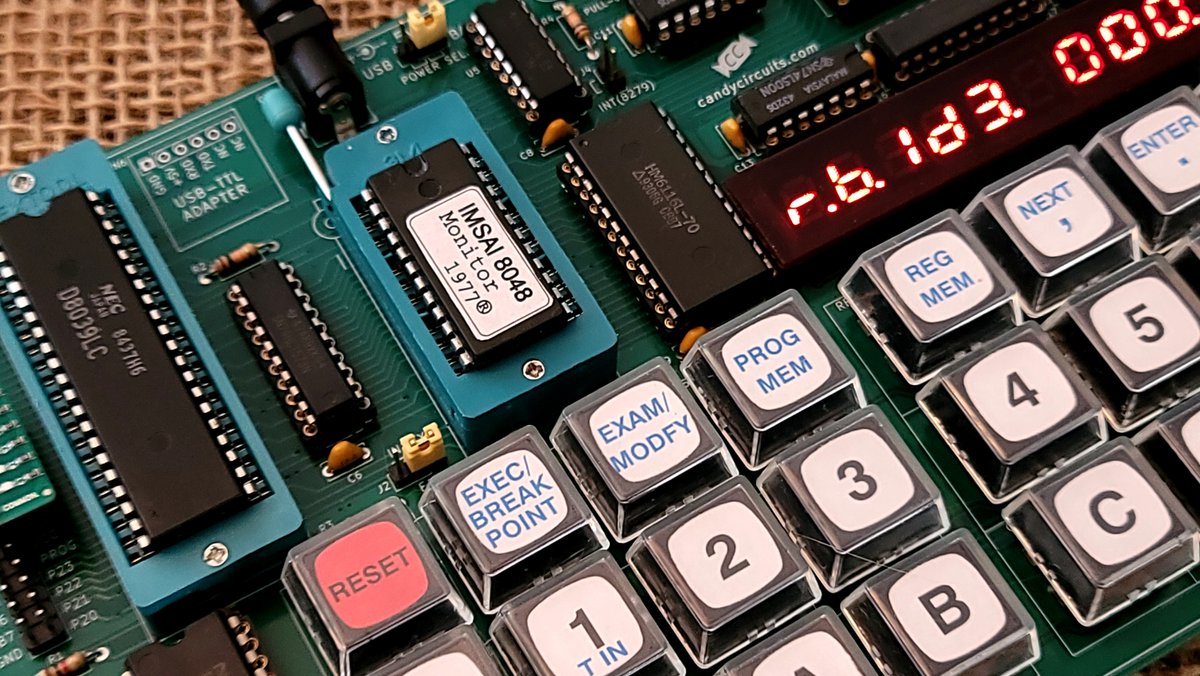

Bringing a rare piece of computing history back to life! The IMSAI 8048 Control Computer is a total rarity (only about 350 were ever produced) it was overshadowed by the success of the IMSAI 8080. #IMSAI8048 #D8748H #D8749H #INTEL #Retrocomputing #MCS48 #Microcontroller

Using an online OCR tool to extract the monitor program from the IMSAI 8048 manual, I made some adjustments to use the 2500 A.D. cross-assembler and linker. Everything is going well so far. #IMSAI8048 #D8748H #D8749H #INTEL #Retrocomputing #MCS48 #Microcontroller

@vintagechips I am aware of your illness, and it was yet another reason for me to complete this project. I enjoy your work, and I hope to continue enjoying your ideas for a long time to come. Thank you for everything; what matters is maintaining a positive attitude and taking care of yourself.

@Arduining 日本のみで販売している部品を入手し日本語の説明を読んで見事に完成させたことに敬意を表します。いまボクは病気療養中で丁寧な返信ができませんが生きる活力をもらった気がします。

Finally, everything fell into place—my @vintagechips board is up and running. Time to move on to some others #MCS48-related projects in my stack. #D8748H #D8749H #INTEL #Retrocomputing #vintagecomputing

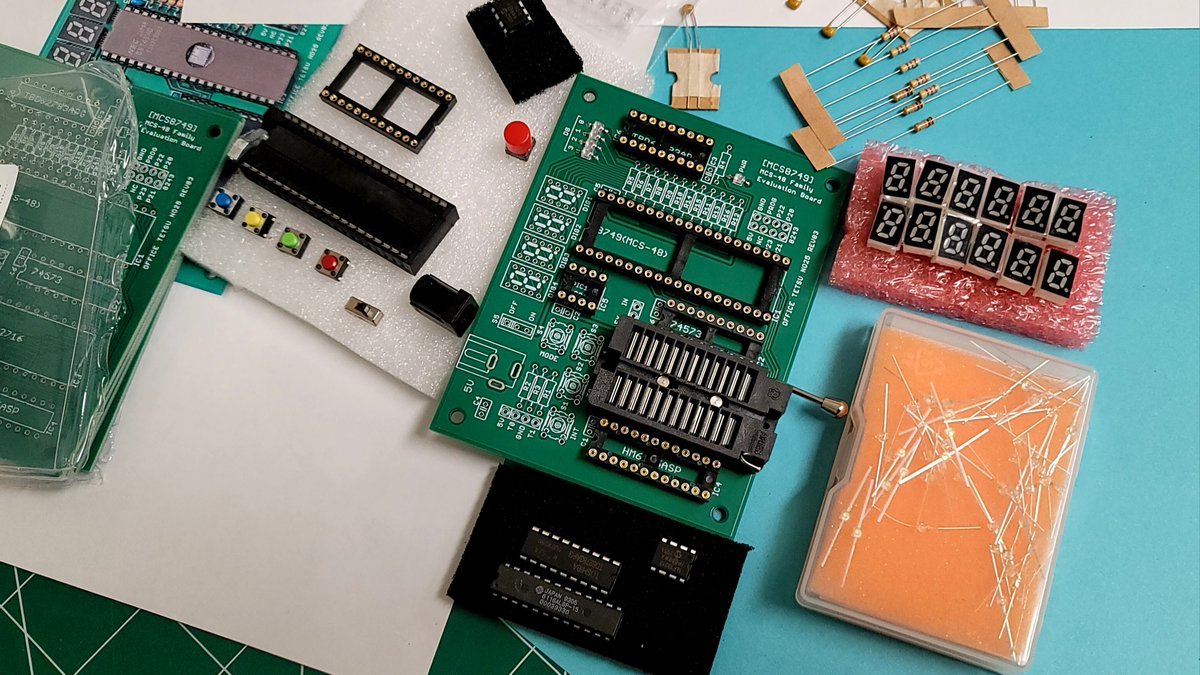

After nearly a month in customs, the LEDs and 7-segment displays finally arrived from Poland... I have no more excuses not to solder the board from @vintagechips. #D8748H #D8749H #INTEL #Retrocomputing #MCS48 #vintagecomputing

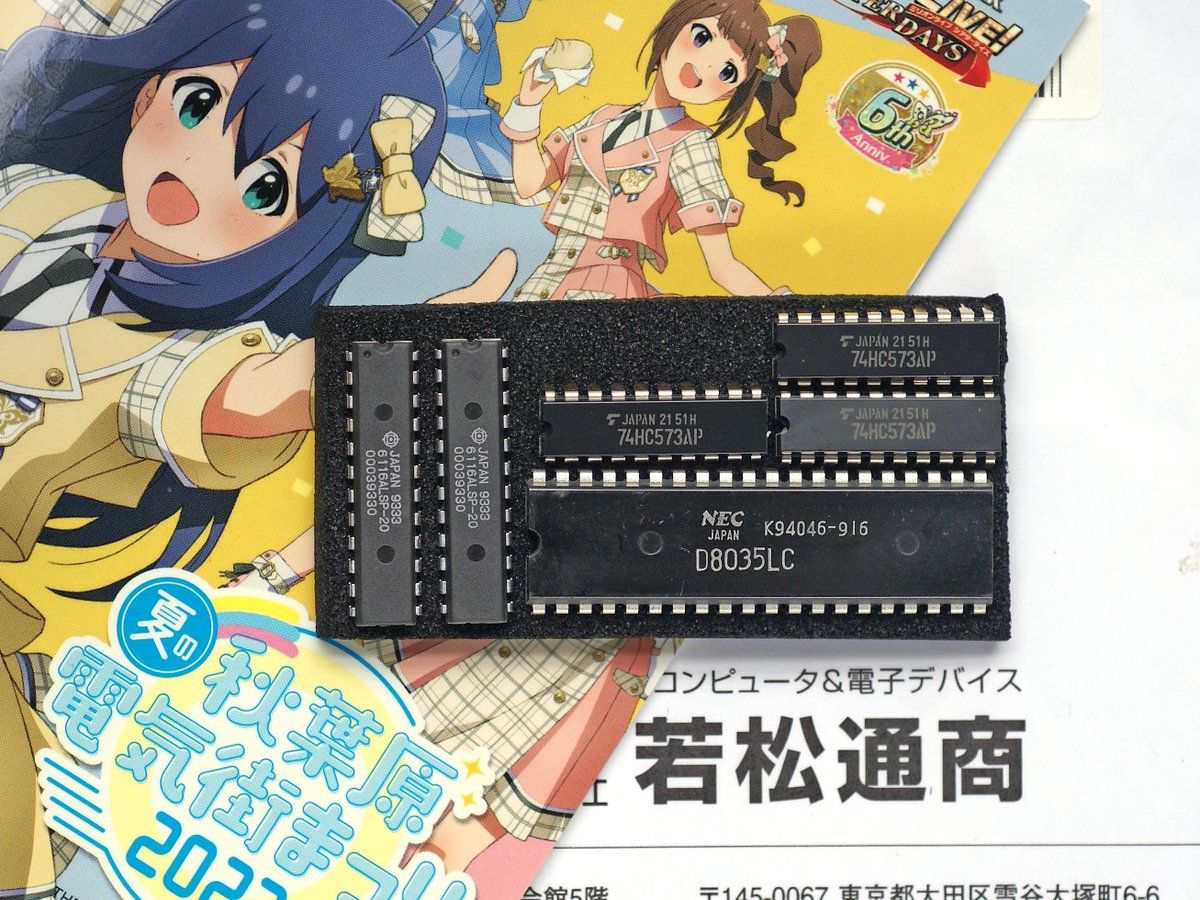

@vintagechips Just a heads-up on the D8035LC and 74HC573. The TTL-to-CMOS voltage mismatch can cause hidden errors. As you add more devices to the bus, loading will cause logic glitches. Using a 74HCT573 is a more reliable, drop-in fix. I really love the projects you are working on.

本日の新着、夏の香り同封。8035はMCS48評価基板で動く最小の型番、ちなみに最大の型番は8749。74HC573は秋月で検索すると違うものがヒットし、結局、売ってないぞ。てことで、ボクにとっては安定の若松通商。

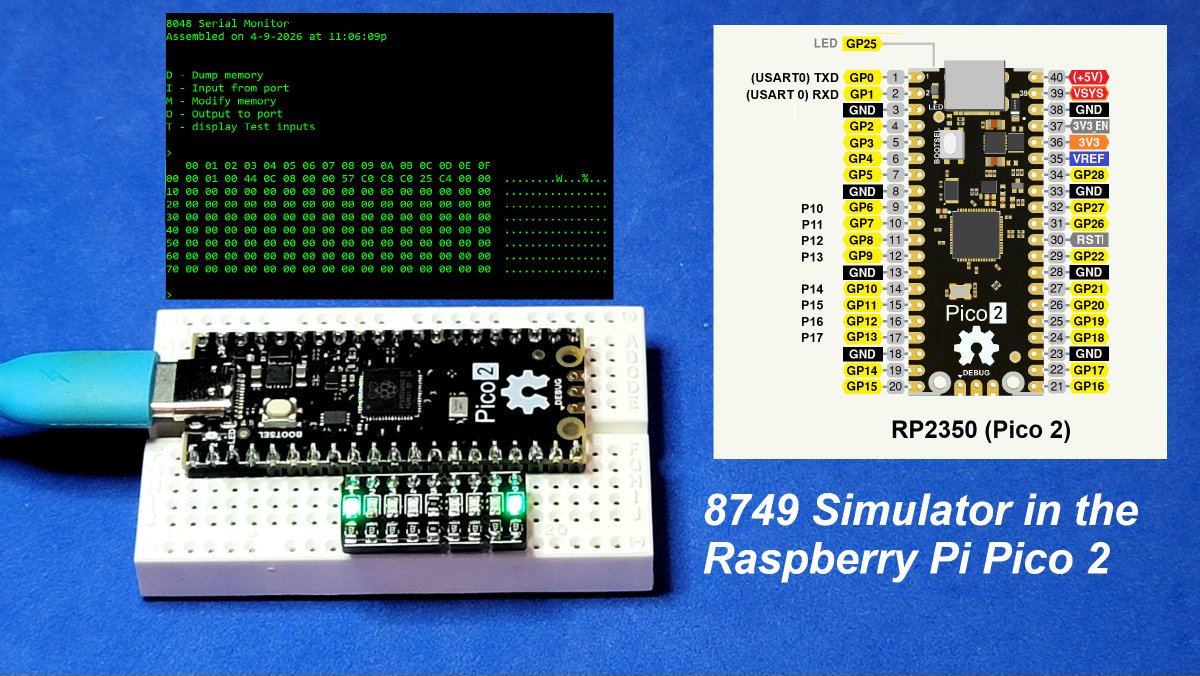

Running an Intel 8749 simulator on a Raspberry Pi Pico 2. Assembler monitor program Bit-banging at 9600 bauds. Next up: adding binary/hex file downloads. MONITOR.ASM github.com/jim11662418/In… #Retrocomputing #MCS48 #Intel8749 #VintageComputing #RaspberryPi #ArduinoPico

Usually, it does not matter which USB-to-TTL interface chip is used by Arduino Nano clones; however, at lower speeds (300–1200 baud), it is always preferable to have the FTDI used by the original Nano. #Maker #Arduino #Nano #ArduinoNano #Electronics #Hardware #Microcontroller

Now simulating the 8749 with the #Arduino #NanoR4 . Original Jim11662418's monitor program runs on the 8049 at 10 MHz. Simulation at 1/8 of the speed: 9600 bauds becoming 1200. github.com/jim11662418/In… #D8748H #D8749H #INTEL #Retrocomputing #MCS48 #vintagecomputing #Arduino

After several tricks—such as using a LUT in RAM... I am updating a single byte (8 bits) on the #Arduino #NanoR4 pins four million times per second. #Maker #Arduino #NanoR4 #Electronics #Hardware #Microcontroller

Arduino Nano running an 8748 binary ROM!.Accurate machine cycle emulation. Jim11662418's monitor program using bit-banging serial comms. Original speed 10MHz (9600 bauds), simulation 625kHz (600 bauds), #D8748H #D8749H #INTEL #Retrocomputing #MCS48 #vintagecomputing #Arduino

The 8748 simulated using an Arduino Nano. Jim11662418's monitor program running on the 8047 at 10 MHz. 1/16 speed simulation: 9600 baud -> 600. github.com/jim11662418/In… #D8748H #D8749H #INTEL #Retrocomputing #MCS48 #vintagecomputing #Arduino

I set up a simple 8048 simulator on an Arduino Nano. Here, you can see @vintagechips' DEMO8749 running. It is executing at 16 scans per second. This is likely half of the actual speed. #D8748H #D8749H #INTEL #Retrocomputing #MCS48 #vintagecomputing

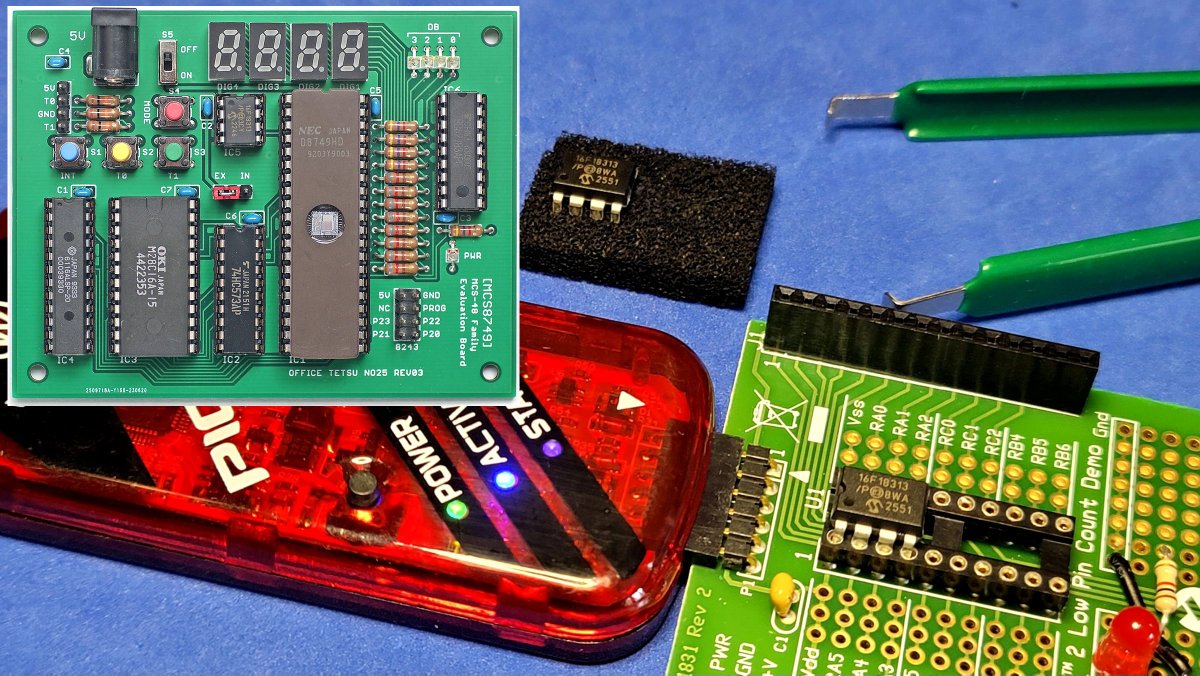

I'm going to reproduce MCS48 evaluation board from @vintagechips. While I wait for the hard-to-find axial LEDs and 7-segment displays to arrive from Poland, I'm programming the PIC (clock and single-step function). #D8748H #D8749H #INTEL #Retrocomputing #MCS48 #vintagecomputing

I replaced the Microprofessor's 6116 RAM with my #FM16W08 FRAM adapter card. It works perfectly, retaining its contents during power-off. #SDK85 #Microprofessor #retrocomputing #MCS84 #MCS85 #Z80 #MOS6502 #vintagecomputing

I made my own adapter cards to create a simulated 6116 RAM using the #FM16W08 to retain what I was programmed in my vintage microprocessor trainers #SDK85 #Microprofessor #retrocomputing #MCS84 MCS85 #Z80

Only ~350 units of the IMSAI 8048 Control Computer were ever produced, making it a very rare find. My goal is to build a hardware version to get the original ROM running again. #IMSAI8048 #MCS48 #D8748H #D8749H #INTEL #Retrocomputing #MCS48 #vintagecomputing
