Craig Scarborough

Fren Sistemi Detayları | Brake System Details x 📸 Photo by @xavigazquez F1 araçlarında frenler sadece "durdurma" değil, tam bir mühendislik sistemi. Bu kareler, tekerlek söküldüğünde ortaya çıkan fren kaliperi ve diskinin yakın detayı: 🔴 Fren balatası destek plakası — diske baskı uygulayan ana yüzey (Brake pad backing plate — the surface pressing onto the disc) 🟠 Sensör soketleri — sıcaklık/basınç verisi toplar (Sensor connectors — gathering temperature/pressure data) 🔵 Fren soğutma diski — havalandırmalı, yüksek ısıyı dağıtır (Brake cooling disc — ventilated to dissipate extreme heat) 🟢 İç soğutma kanalları — kaliperi aşırı ısınmadan korur (Internal cooling ducts — keep the caliper from overheating) 🟡 Parça takip kodu — her komponentin dijital geçmişi var (Component tracking code — every part has a digital history) Bir F1 frenleme noktasında saniyeler içinde 1000°C'ye yaklaşan ısı, bu detaylar sayesinde kontrol altında tutuluyor. --- Temperatures can approach 1000°C under braking and these details are what keep it all under control. #F1Teknik #F1Tech

Job opportunity: videographer with @McLarenF1 linkedin.com/posts/alicia-h…

@xavigazquez @redbullring Superb shot ! 👏

Hi guys, Details from the PitLane, from my camera 📸 in the @redbullring 🧐🧐 . #xaviimages #aeroporn #f1technicalphotographer 📸 #F1Tech #F1 . PD: To my friend @ScarbsTech 😜😜😜 .

@Forza_Martin measuring air pressure

@ScarbsTech What kind of measuring device is this and what does it measure? @ScarbsTech

Big update from Red Bull, the revised floor & tea tray aren't visible here. But there are revised sidepod inlet/mirror-mounts. Plus the undercut is filled in, which aided by changes to the wakeboards, helps push the front tyre wake away from the car, #F1 #F1tech #AustrianGP

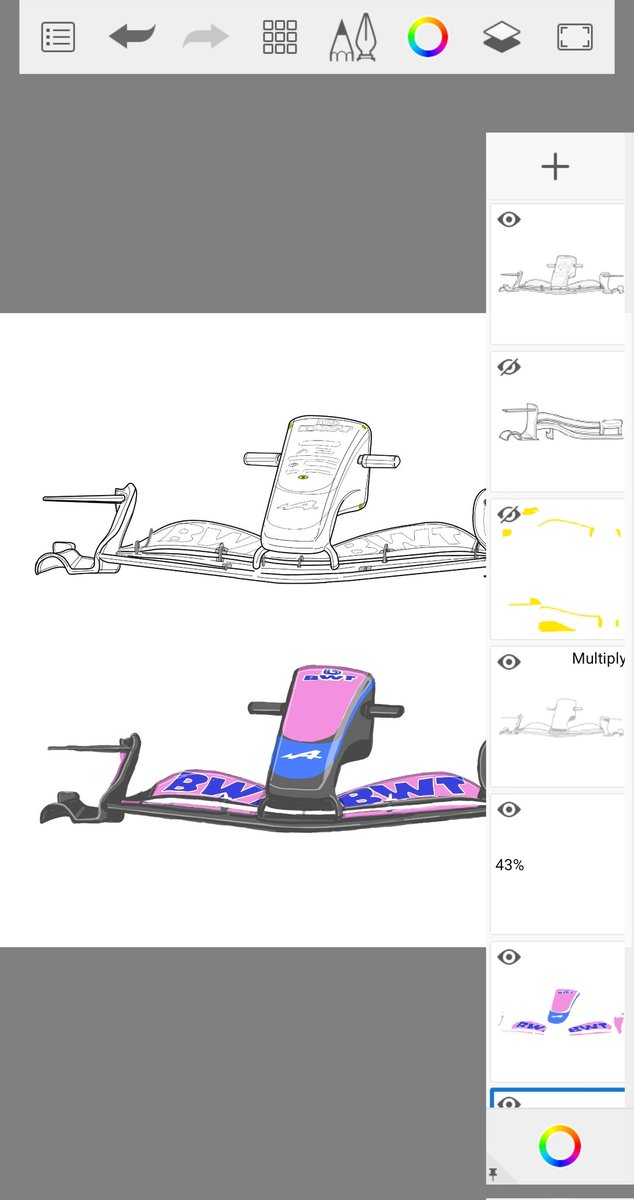

@vincyp882602 @AlpineF1Team I use @autodesk sketchbook on my phone with the S-pen. All lines are hand drawn.

@ScarbsTech @AlpineF1Team Hi craig how do you do these draws? And for sponsors names you draw them by your hand or do you use some templates?

All new front wing for @AlpineF1Team. Their old wing was quite unique, but the new version takes them along the same direction as most other teams. #F1 #F1tech #AustrianGP

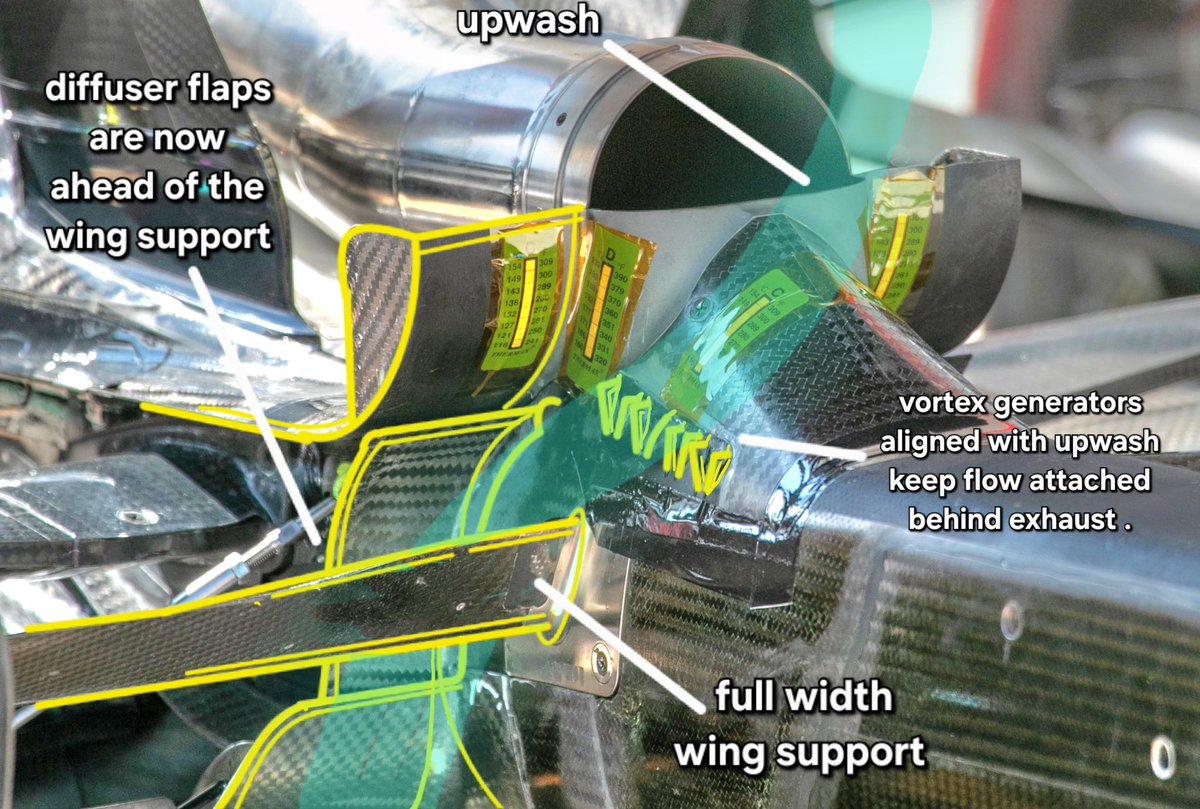

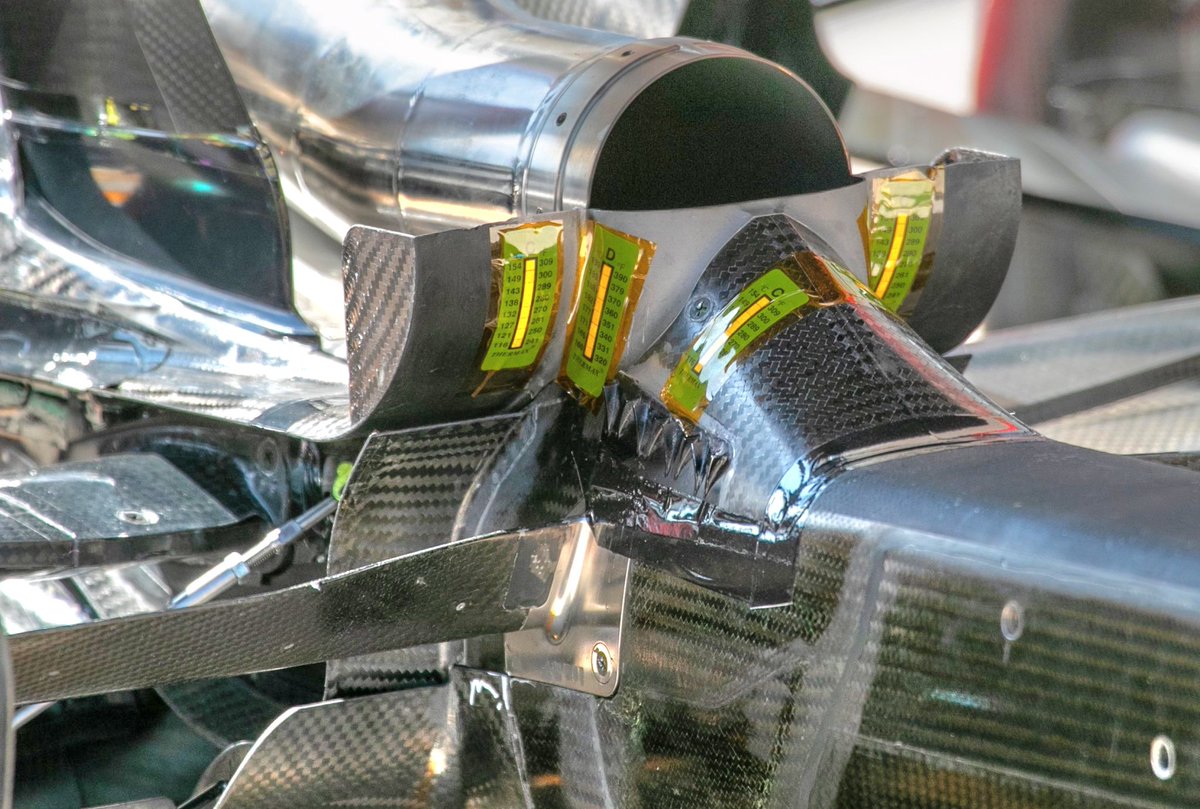

FIA oficjalne zakazała stosowania charakterystycznych skrzydełek (opracowanych przez Ferrari) w obszarze wylotu układu wydechowego od sezonu 2027. #F1PL #ElevenF1 #F1

@trentonhockeybp Its often done in the garage, but can be on an outlap. It doesn't need to be repeated frequently through the weekend.

@ScarbsTech When does "learning" process take place? And how often does it need to be done, I'd assume once during 1st practice?

Since the early 2000s to get a seamless gearshift #F1 gearboxes run two selectors, one controls odd gears, the other even gears. But the gearbox needs to know the exact position of each gear, which is done by a process called 'learning' Without this, the shifts have to be slower

Quick tutorial on how F1 and motorsport photographers work by shooting through fences when there’s no photo window to use. It’s a pretty simple mix of lens choice, aperture and shutter speed. Full breakdown with example photos and more detail on my Youtube channel!

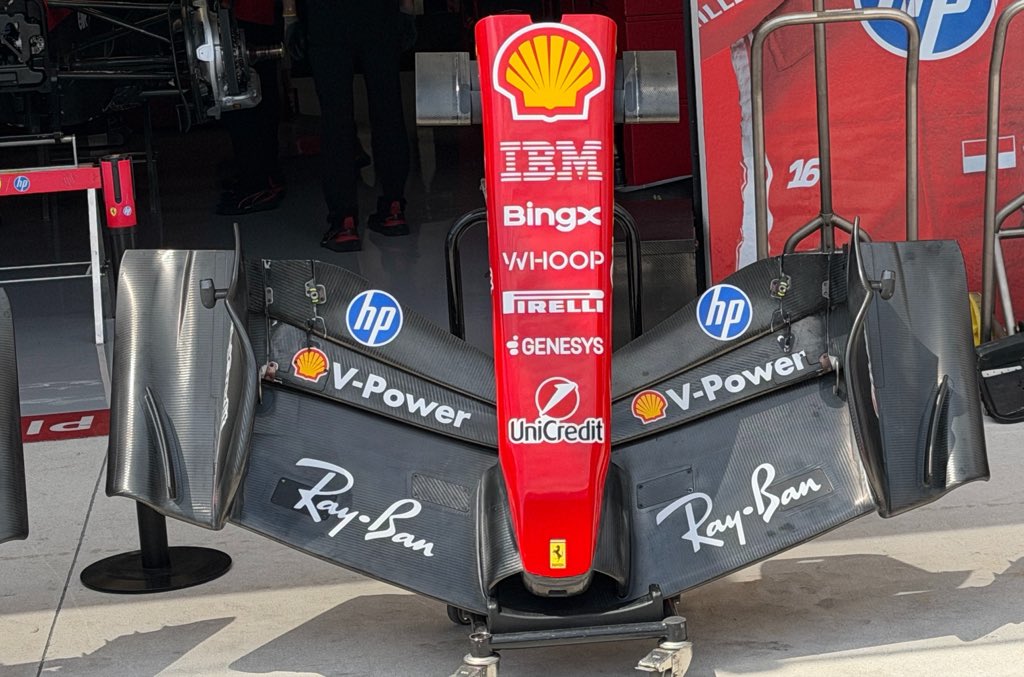

Ferrari's recent updates were augmented with a subtle revision to the front wing diveplane & the footplate's vane has been shifted rearwards. The vertical wakeboard section is now just one element & a small change to the mirror mountain. Plus another update to the bib support.

Changes all over the mid-rear of the @Cadillac_F1 too... #F1 #F1tech #AustrianGP

Audi have enlarged the scrolled, venturing footplate on the front wing. Plus, added sophisticated winglets under the guise of rotation brackets to the rear wing #F1 #F1tech #AustrianGP

McLarena wing...

The updated Red Bull RB22 with revised sidepod inlets and panels, front floor edge, and rear wing pylon fairings. #F1 #AustrianGP

Massive aero update at @redbullracing for Austria - and crucially a lot of weight taken out as well:

Not the smoothest practice start 😅 @37_pedroacosta #DutchGP 🇳🇱

La nueva ala trasera de McLaren
