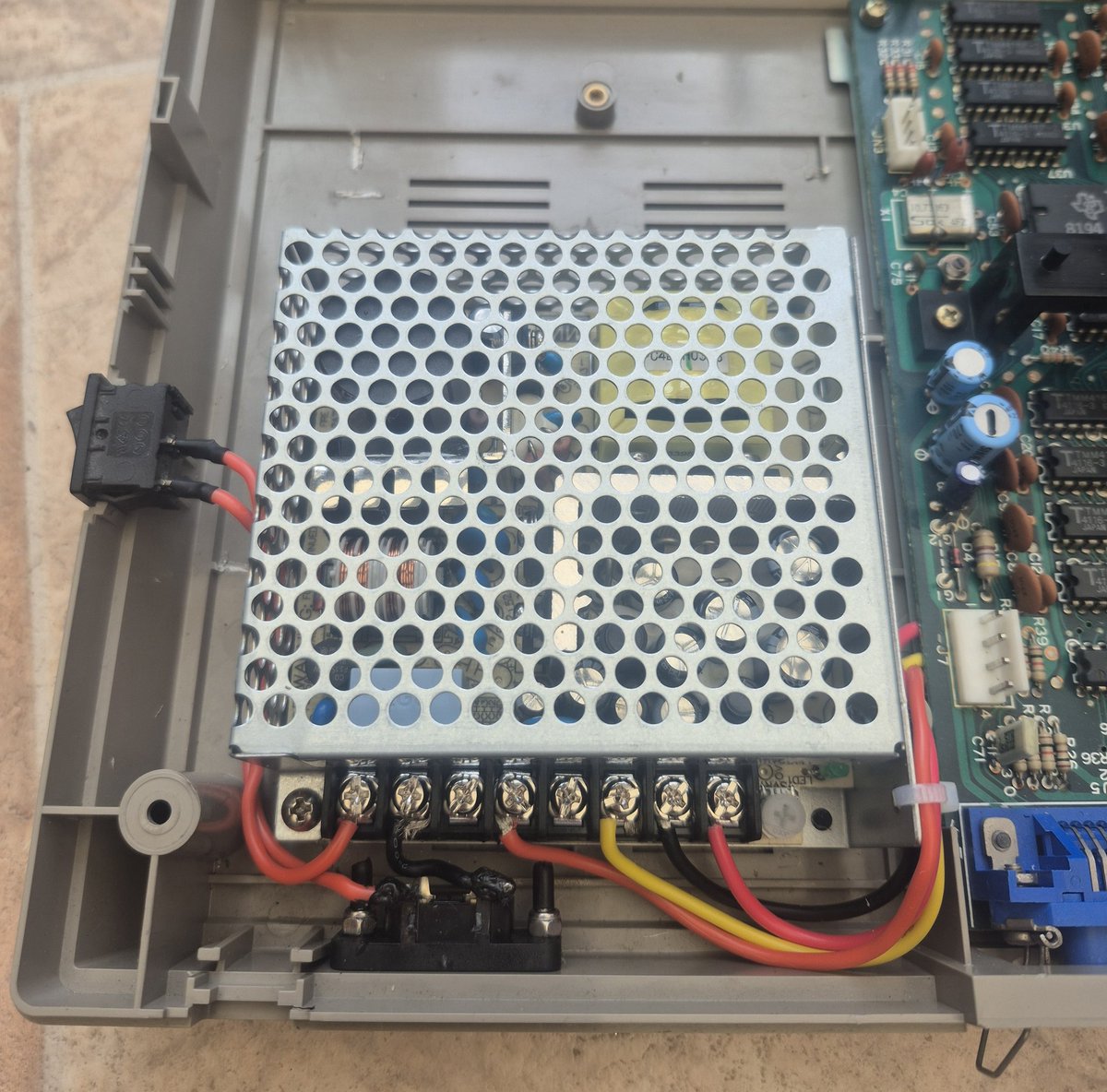

Replaced the power supply in this Canon V-10 MSX Home Computer with a new Meanwell PSU. The original PSU was working but was only 110v and had the cord leading out of the console. I stole a figure of 8 socket from an original xbox psu and mounted it at the back. It also now accepts 110-240v. #canon #msx

I've been working on something a bit different and I need help! I have finished fully restoring this machine i picked up locally. Unfortunately it doesn't boot due to a faulty EPROM which houses the game code. Does anyone out there have this machine and could help me with copying the eprom so I can burn onto a new eprom. Thank youuuu #pachislo #pachislot #yamasa

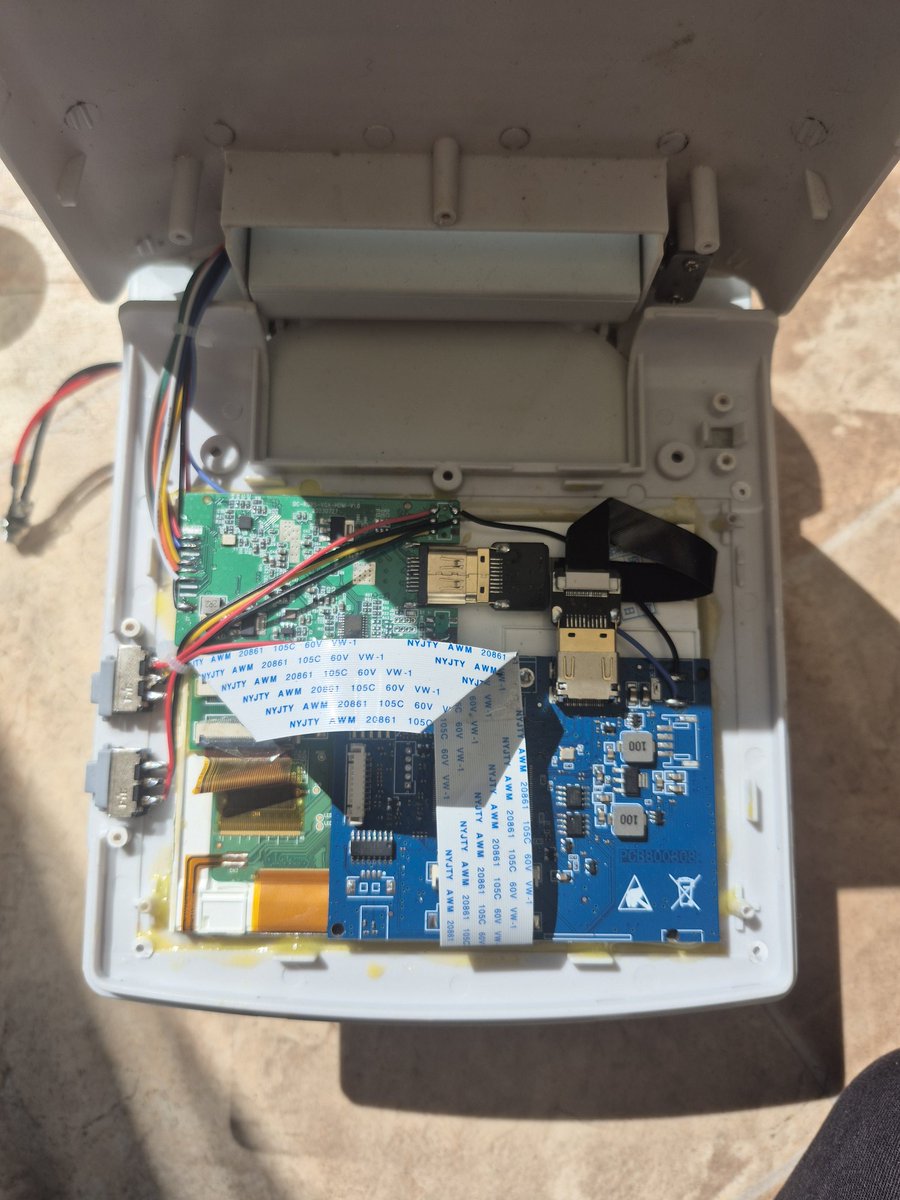

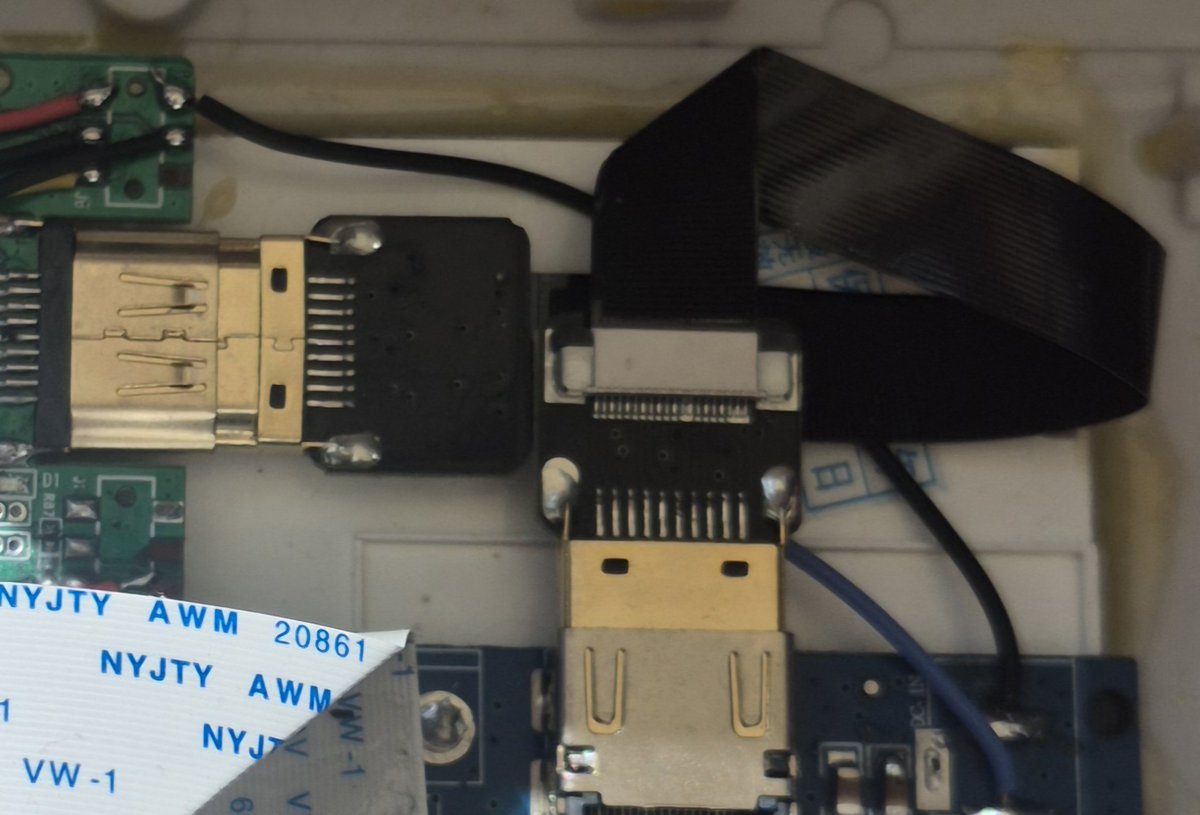

Over 6 months ago, I purchased a "untested" Complete Treamcast bundle from eBay. Upon receiving it. It was obvious that the original TFT screen was broken due to showing coloured lines and bad contrast. So I scoured all the usual places, AliExpress etc, with no luck on sourcing an original panel. I finally found a new HD panel that matched the parameters I needed. It arrived, I lined it up, and epoxied it to the top frame. I then sourced a BitFunx DC to HDMI adaptor and a flat flex HDMI cable to connect it all up. This new panel combination will give me superior visual quality. I also removed the Brightness & Contrast wheels and installed switches which controlled the aspect ratio and signal type. I recapped the audio amplifier while I was in there as the Treamcast had built in audio with 2 small speakers. The original Treamcast PSU was custom made which was super cheaply made and needed to be put in the trash. I wired up a PicoPSU as it would just "drop-in" due to screw hole placement in the bottom casing. I added USB-C with a custom printed mount at the back. A GDEMU was added with a 3D printed mount which was remixed by me to hold a fan to keep things cool. Obviously a ressetable fuse and rechargeable clock battery were needed. Lastly, I replaced all the microswitches in the controllers as they were worn.

Another teaser....full post coming later today....

Finished up a personal project and it's come out better than expected 😘 Here's a hint.... Full post tomorrow....

Final result for the day! Going back in a few weeks for the rest to be done! Was getting a but sore

I've not been on here much lately due to some major changes in my life....but.... I'm excited to show this off...currently in progress... My love for the PS1 😘

@jlawless2690 I will be soon :)

@WillConsole Hi will are you still accepting work for PS2 region mods by any chance ??

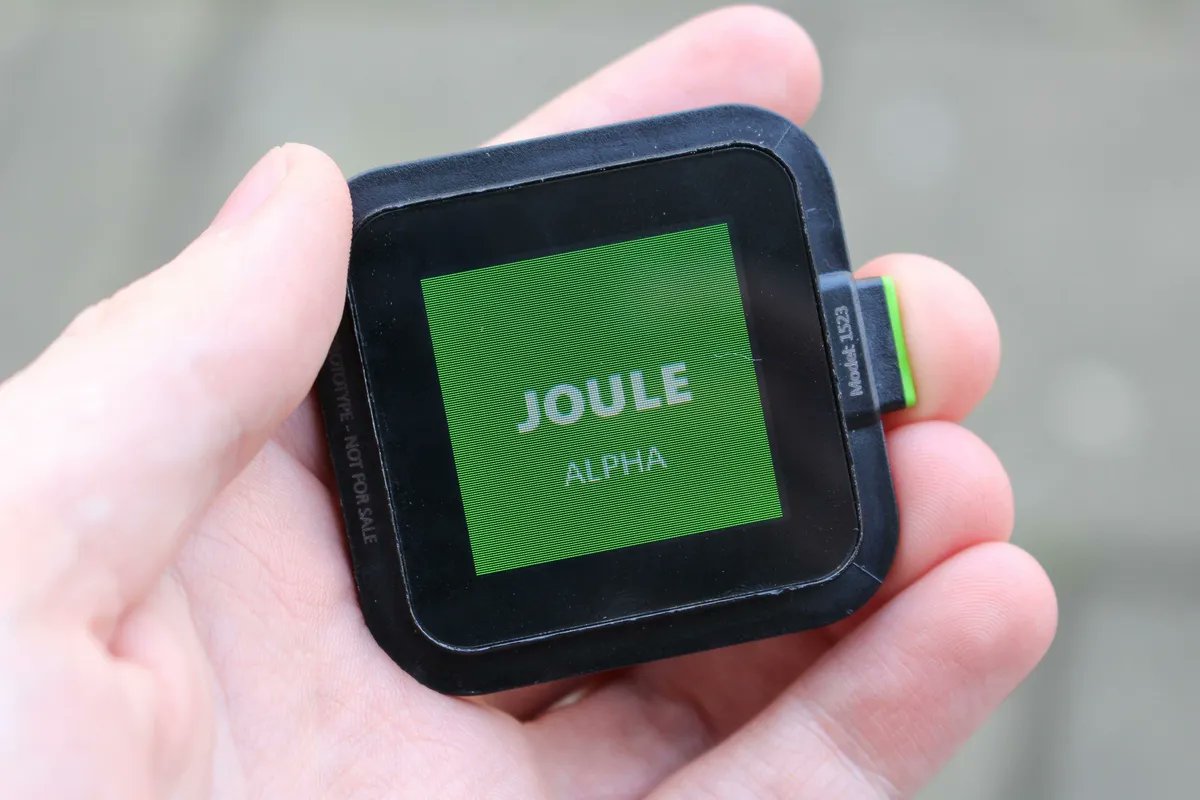

I recently acquired an Xbox Joule - prototype fitness watch. It has 4 contacts on the backside. Maybe for charging / USB connection. Other prototypes have been found but has anyone got the pinout for the 4 pins so I can power this thing up? #xbox #joule

Nice local pickup yesterday 😍 Spot the bargain 😋

@PeepoUK @grandoldian Wooooo

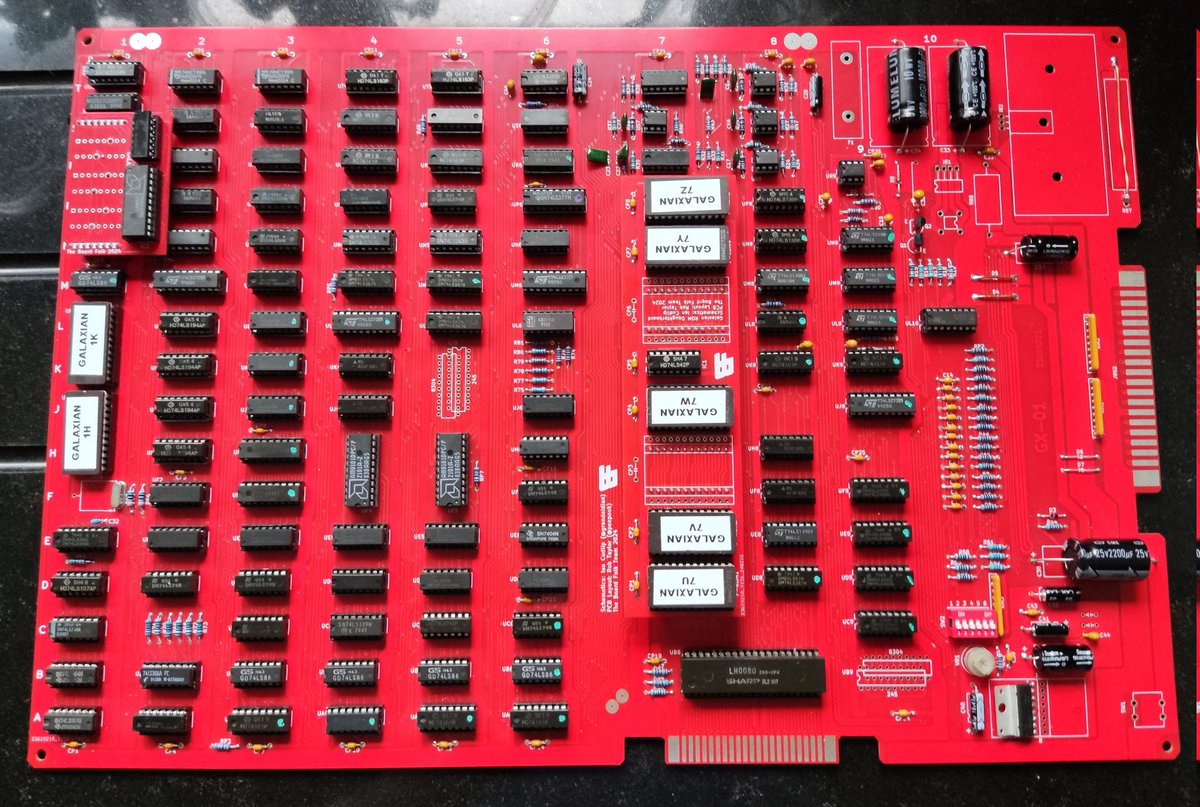

Had a wrecked Galaxian board. Made this new set of PCBs along with @grandoldian. 85% of ICs were OK. It lives for another 40 years. 😁

Got a few NeoGeo MV1F boards in a job lot. Unfortunately they are battery damaged :( So I stripped 3 boards of all the chips and kept them safe for one day when they are needed

That's another 9 PS2 modchips added to thr collection. I wonder how many left I've gotta collect for a full set? 😅

@KaneBlueriverCL It's from a car diagnostic machine

@WillConsole What kind of board is this?

Varta strikes again! I have fixed way too many of these boards with leaked acid.

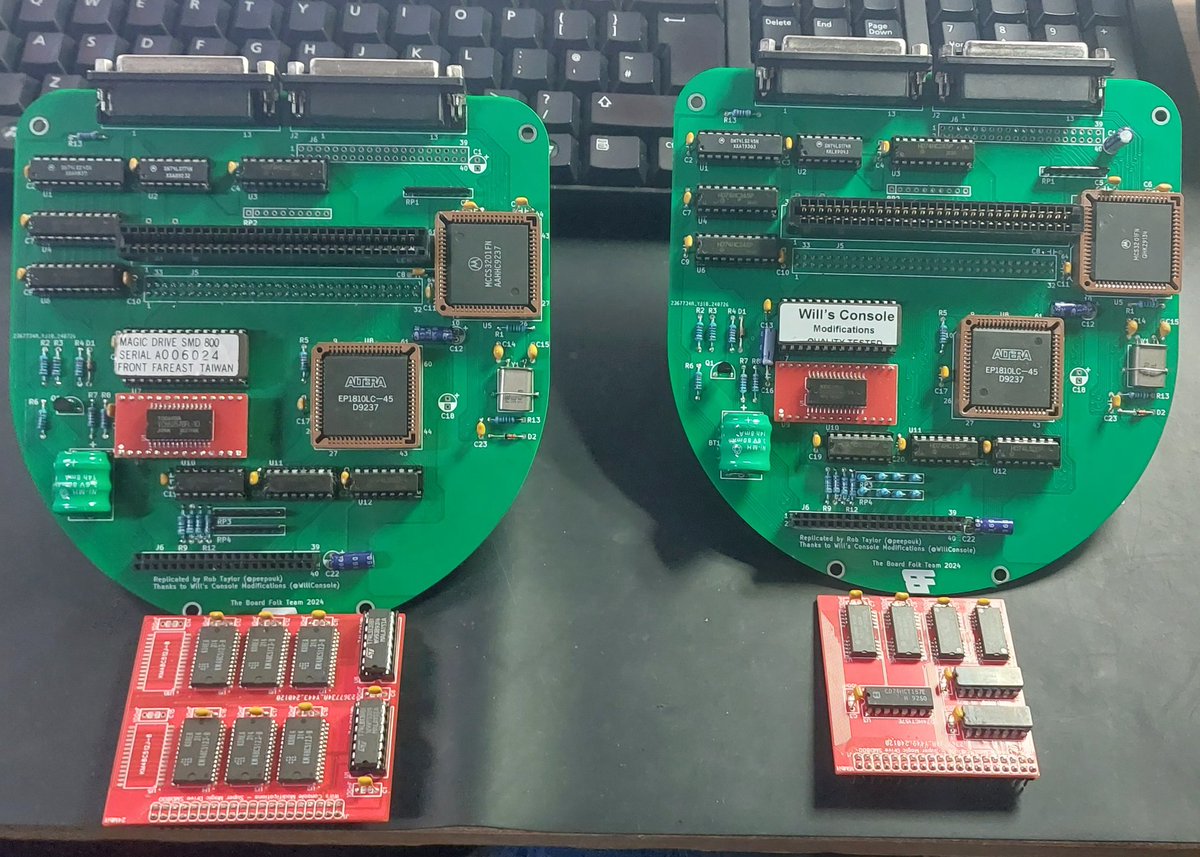

Super Magic Drive Box and Unit 16MB

Random job lot turned up today. Some of the more interesting finds. PS2 console with removed motherboard and a laptop motherboard inside. I assume old PS1 copies, but these aren't CD-R's, these are all pressed.

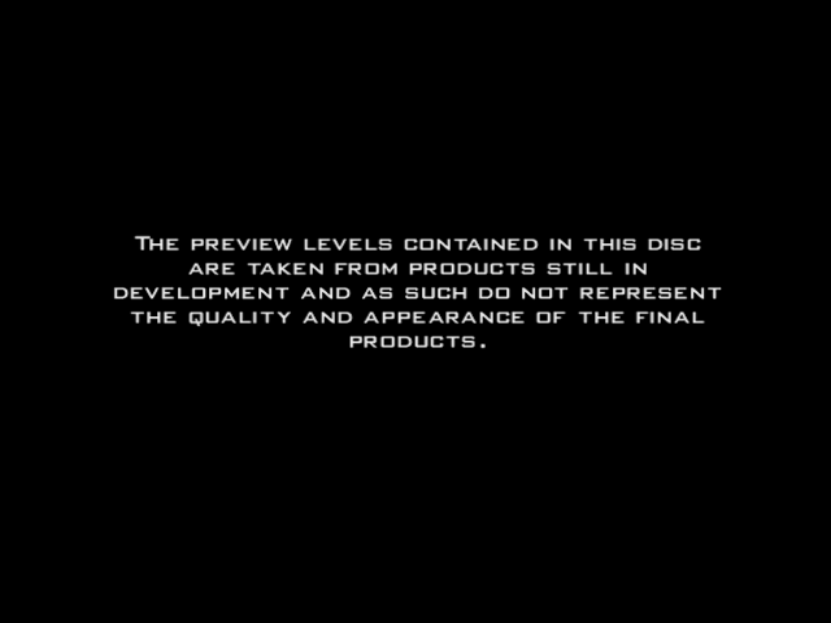

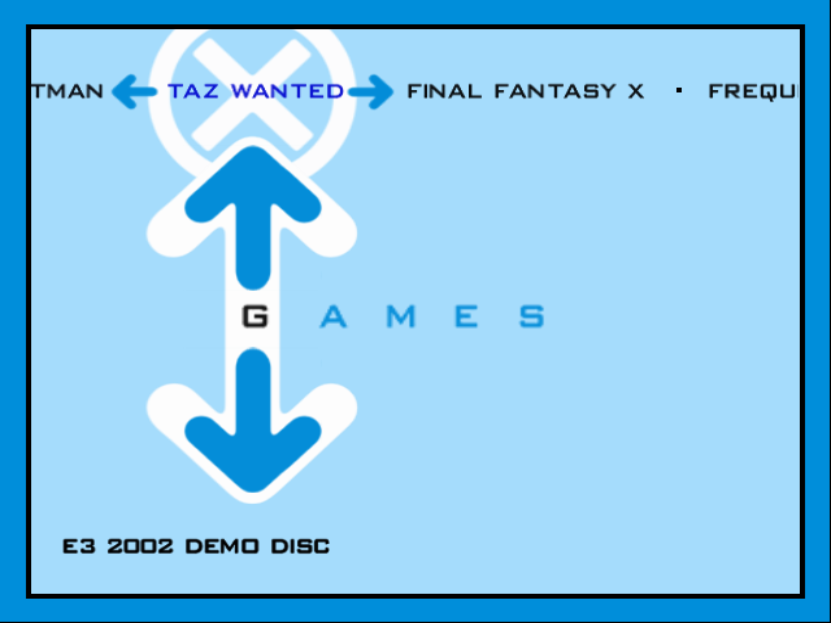

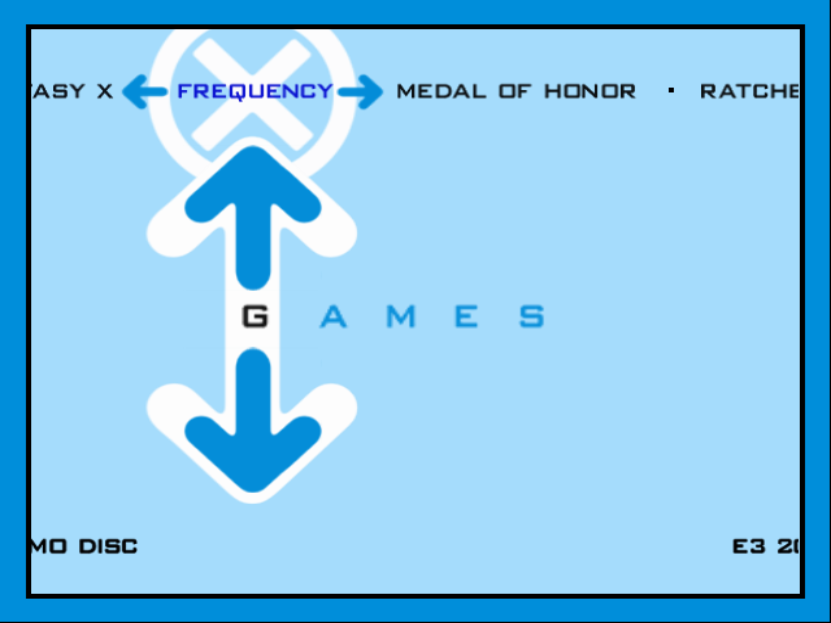

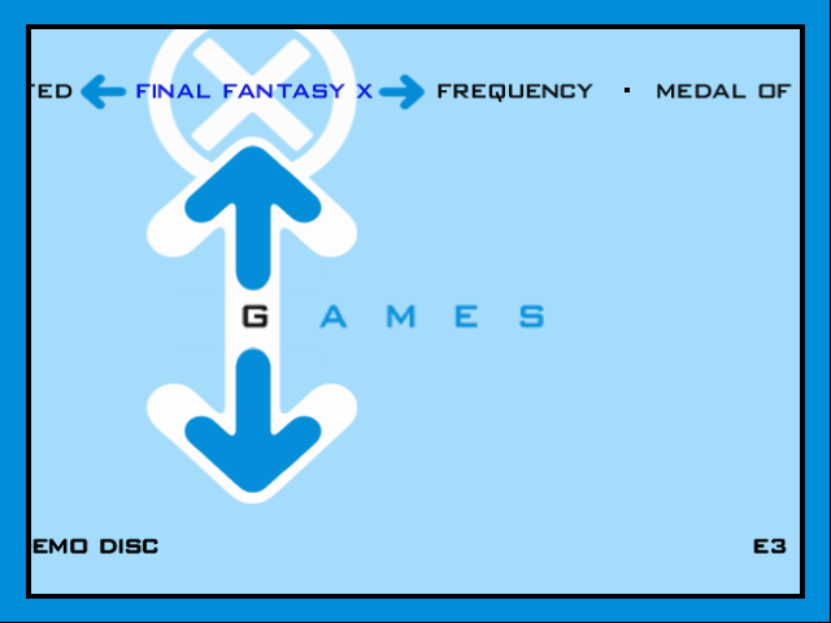

confirmed! E3 demo disk :)

Got this in a random bundle today. I have searched everywhere and can't find any info on it. Even searched the SCED number. Anyone seen one of these before?
