少翔Sean

@LETSOC @M5Stack Hello, now the library is updated, compatible with v3.3.7, and we tested it with the USB Module v1.2. It works with Core1/CoreS3 github.com/m5stack/M5-Max…

@M5Stack Thank you. Using Arduino IDE

@LETSOC Checking

@EnemyofGLaDOS @M5Stack Yes. If some lib or firmware is using the GPIO to decode the IR signal, it will not work. The TX part is not a problem. But RX has to use the ESP32 RMT peripheral for signal reception. and note the communication distance and some configurations.

@_SeanKwok @M5Stack Ah interesting. That’s what I was trying to do was get it work as a remote using the IRremote library in Arduino. After failed attempts I flashed Bruce to test the IR reader and still didn’t see anything.

@M5Stack is there a way to test the IR receiver on the M5StickS3 other than flashing a firmware that has an IR reader function? As far as I can tell the receiver doesn’t work :/

@EnemyofGLaDOS @M5Stack You can use the "IR receive & echo" example. When it receives an IR signal, it will dump all raw IR data to the serial. Also, before using the IR receiver, it is important to turn off the speaker amp and keep the sender distance more than 30 cm. docs.m5stack.com/en/arduino/m5s…

@saitotetsuya Also, Example Compilation Requirements M5Stack Board Manage >= 3.2.5 Development board option = M5StickS3 M5Unified library version >= 0.2.12 M5GFX library version >= 0.2.18

Arduino IDEでも動かんがな……

PlatformIO環境でStickS3のIR受信サンプルが動かないのでArduino IDEで試すか…… #m5stack

@saitotetsuya Hi, the IR receiver example has been updated. docs.m5stack.com/en/arduino/m5s… Note: When using the StickS3 IR RX, the transmitter should be as directly opposite the receiver as possible, with a distance greater than 30cm. Getting too close may cause reception problems.

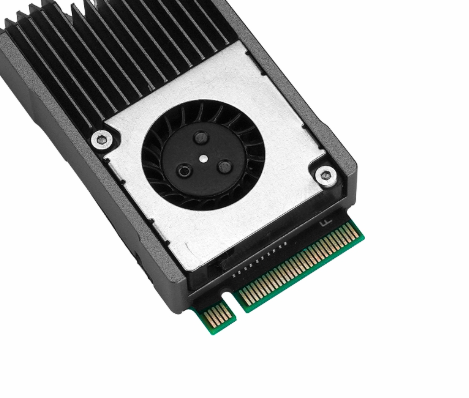

@TrakUnixbased @M5Stack Hi, the LLM8850 Card is PCIe M.2 M-Key. Support for PCIe 2.0 ×2 lanes, with backward compatibility for x1 (e.g., Raspberry Pi PCIe 2.0 x1 lane). Note: M.2 SSD NVMe protocol is not supported. （M.2 == NGFF， NGFF is an old name; the two are the same.）

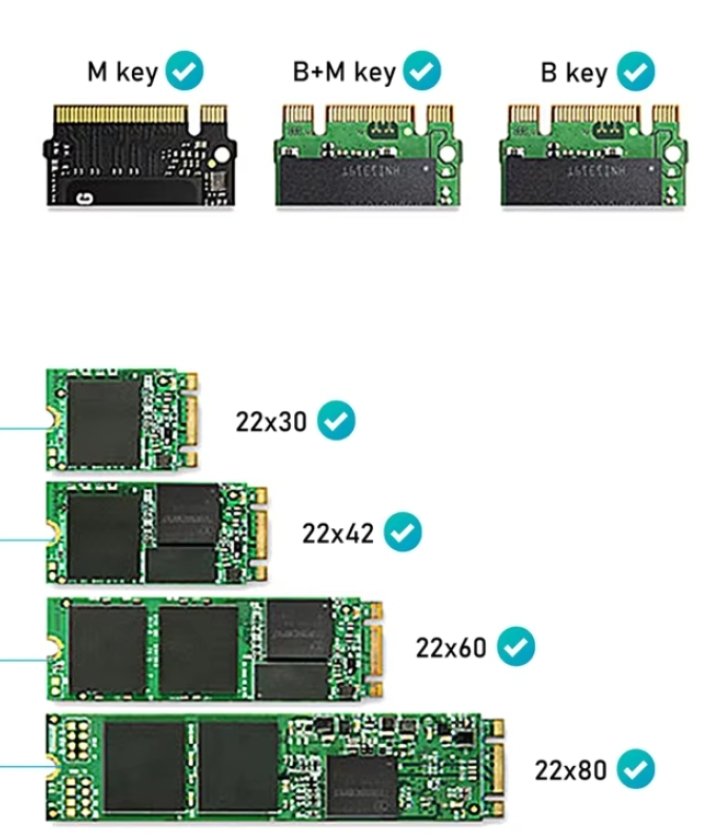

@_SeanKwok @M5Stack Let me know if I make mistakes. LLM8850 is M2 M key but NGFF? My mistake. Usually I believed M2 M key was only for NVMe. Nobody's perfect. My apologies to bother you with my lack of knowledge.

@M5Stack Please. Could you clarify the documentation? LLM8850 works on M2 NGFF port or on M2 NVME port.

@gsreynaga @M5Stack Hi, you could try the path "res/image/featherwings_wales.bmp" (without start with the / first)

@M5Stack Hi guys, I haven't been able to upload an image from the SD memory card

@shikarunochi Hello, now the GitHub repo is public github.com/m5stack/M5Chain

ドキュメントもありますね。 docs.m5stack.com/en/chain/Chain… ライブラリは、まだ404 github.com/m5stack/M5Chain

もう来てる！ / Chain Joystick (STM32G031) shop.m5stack.com/products/chain…

@UtaAoya Sorry. Now the 日本語 の readme is updated. This project is based on xiaozhi-esp32, and then we modify the default emoji face to the stack-chan avatar.😄

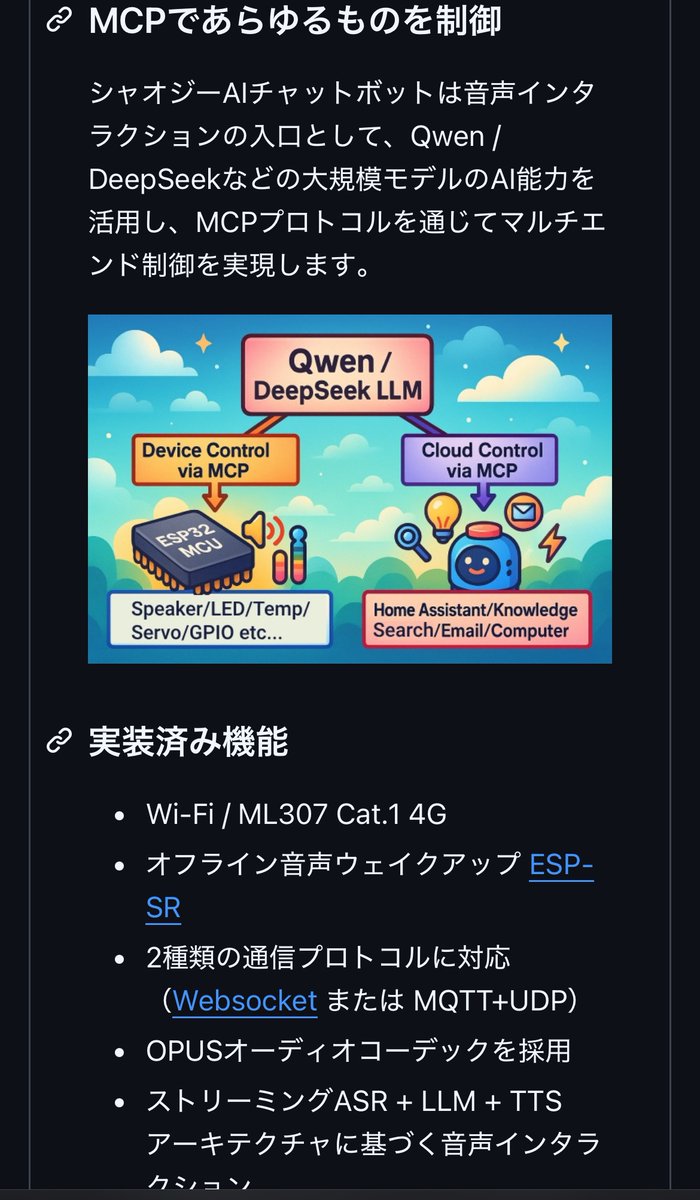

顔が #ｽﾀｯｸﾁｬﾝ ?! 😊日本語のreadmeを見ると、エビ兄さん？が作ったとあります。マイコンのマイクへの音声入力から、WebsocketでCloudサーバのLLM, TTSを実行して会話していると推察(ソース読んでないw github.com/Gitshaoxiang/x…

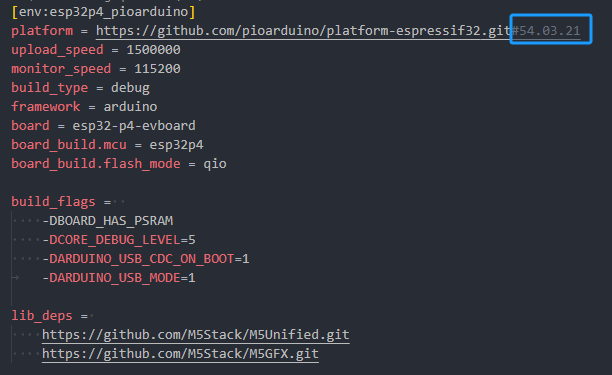

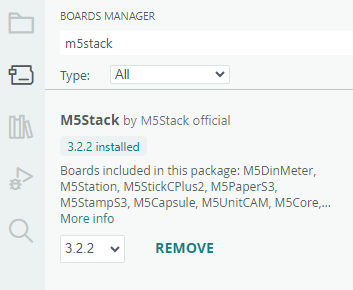

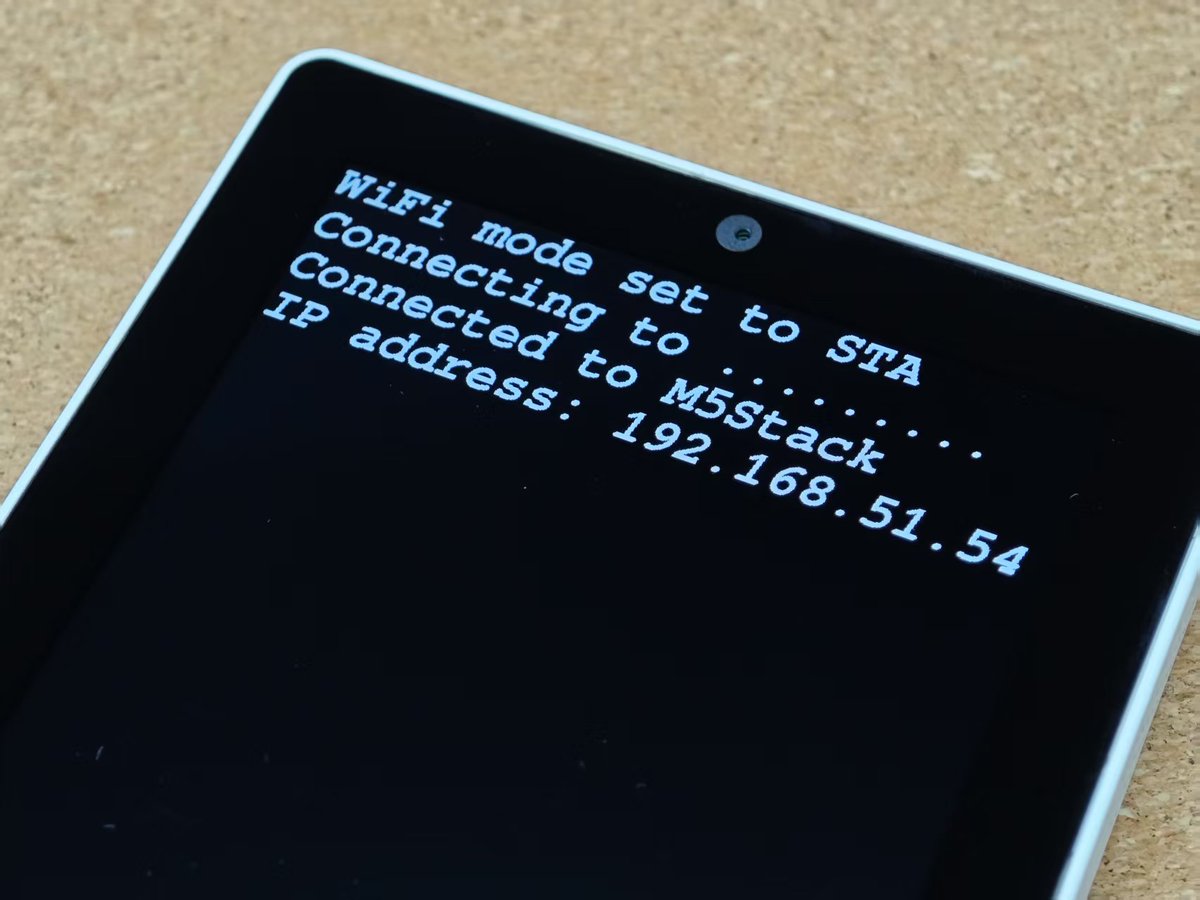

@nnn112358 @tnkmasayuki @mongonta555 @M5Stack Hi, the M5 board manager v3.2.2 （actually based on ESP 3.2.1） is released now. The Tab5 can use the Wi-Fi example. Suppose you are using the PIO. You could refer to the .ini file below. :example: docs.m5stack.com/en/arduino/m5t…

@_SeanKwok @tnkmasayuki @mongonta555 @M5Stack I want sample releases of M5Unified + Wi-Fi for TAB5 ‼︎ It would be wonderful if CoreS3 and TAB5 could run with similar source code by arduino.

そろそろ、Tab5でWiFiを使おうとしている方が観測されますね👀 メインMCUのESP32-P4には通信機能がないのでそのままでは動かないかも。 SDIOで繋がっているESP32-C6を通してWiFiやBluetoothを使うので、この辺りを参考にやってみるか、、、(　・ω・) #M5Stack github.com/espressif/esp-…

@tnkmasayuki @mongonta555 @M5Stack Thanks for feedback. we will update the Arduino board manager and provide the wifi example later.

@mongonta555 @M5Stack The pin definition for Tab5 in Arduino 3.2.1 is incorrect. Please fix it. HOSTED on ESP32C6 is not fixed by default.

@SUM1T4 @M5Stack Yes. in tough device . The bias resistor is connected by default.

@_SeanKwok @M5Stack That's good news. But m5tough seems to be strictly for multiple connections. docs.m5stack.com/en/core/tough

@M5Stack docs.m5stack.com/en/atom/Atomic… Is the resistor installed between this rs485 and ab a terminating resistor? Typically, termination resistors should only be installed at both ends on an RS-485 network.

@SUM1T4 @M5Stack The 120Ω resistor is not connected (NC). If needed, you may also add the bias resistor between terminals AB.

@M5Stack Incidentally, it also seems correct to install only one bias resistor for each AB for one network.

@william_bao @M5Stack 目前支持通过Arduino编程直接作为zigbee节点设备，或通过ESP-IDF开发实现作为RCP/NCP设备，并没有串口协议指令。比较推荐直接用ESP-IDF开发，如果你需要分析NCP的指令，可以参考ESP Zigbee SDK文档中的内容。docs.espressif.com/projects/esp-z…

@M5Stack 好像网站上没有串口协议或对接代码？只有用Arduino自己写zigbee功能到模块的代码。

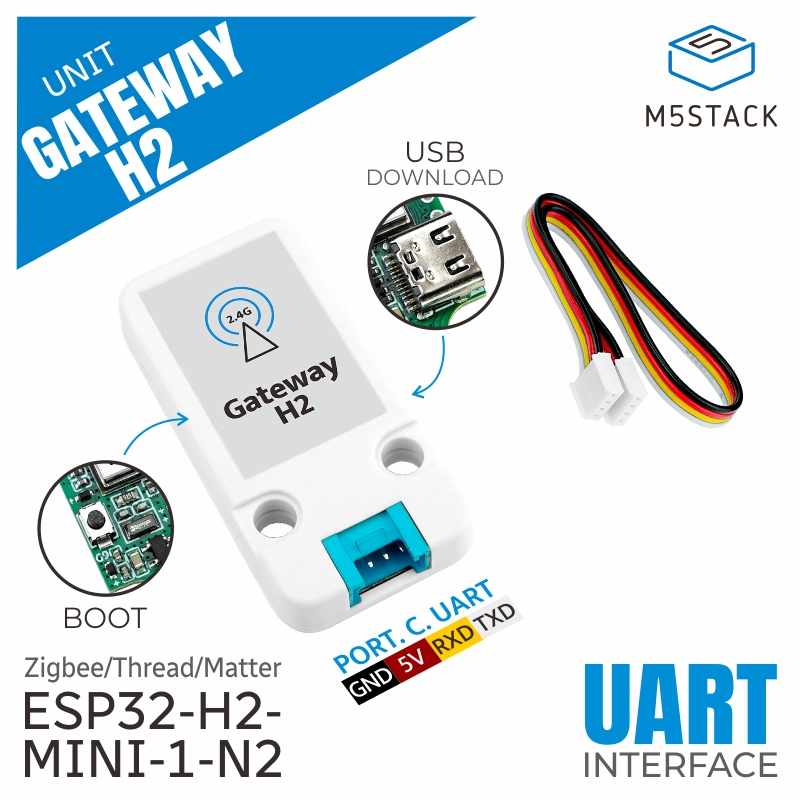

🥳Breaking Barriers in Connectivity! Introducing the Gateway H2 Unit，a cutting-edge gateway unit powered by the ESP32-H2-MINI-1 chip, featuring a RISC-V 32-bit single-core MCU. 👉 Get yours now: bit.ly/4hEHmbD

@Cpt_J_Purcell @M5Stack SCP is a "file transfer instruction", you have to download the UiFlow2 package to your local path first, and upload it to the device via SCP.

@_SeanKwok @M5Stack scp .\uiflow2-0.0.1-cp311-cp311-linux_armv7l.whl this line results in file or directory not found. this is because the path to the server is incomplete

@M5Stack How to I get UIFlow onto the CoreMP135?

@Cpt_J_Purcell @M5Stack there only the package file download link in the page. where did you get the "direct from server link"？

@_SeanKwok @M5Stack I got it working but the instructions are wrong. Namely the link to direct download the file from the server is incorrect. so I had to manually download and copy the file.

@Cpt_J_Purcell @M5Stack did you download the package file before you using the scp cmd to transmission the file？

@_SeanKwok @M5Stack Doesn't work on the download side, SCP reports no such file name
