Ed Dablin

@i_firth Cross laminated? Do you know who supplied it?

@eddablin Hi Ed. There’s no tongue and groove, and from memory the panel is actually 3 layers of timber with the middle layer planks running vertically. Adds lots of friction damping to the system. As far as I know it’s all still original. Last time I saw it it needed a good clean.

Halgavor Bridge near Bodmin, still looking good.

@HistoricEngland @DoncasterDome Deep Pit Bridge. About to be jacked up due to electrification.

@DoncasterDome This unusually long, wrought-iron pedestrian railway footbridge in Hindley, Greater Manchester, dates from 1887. It was built during the peak period of railway bridge construction and spanned nine tracks, with a large ramp on the south side rather than steps leading up to it.

As 2023 draws to a close, 227 historic places have been added to the the National Heritage List for England. 👏 These sites are now protected for future generations. Read on for some highlights. 🧵 Find out more ➡️ bit.ly/Listed2023

Simply Staggering effort 💪⭐️👍 Possession handed back, 2 hours early ⁃Forms A-G completed ⁃Form 5 submitted ⁃All works complete Off home now for some family time 🥰 ‘Those who say it cannot be done should not interrupt those doing it!’ #WeAreBridge

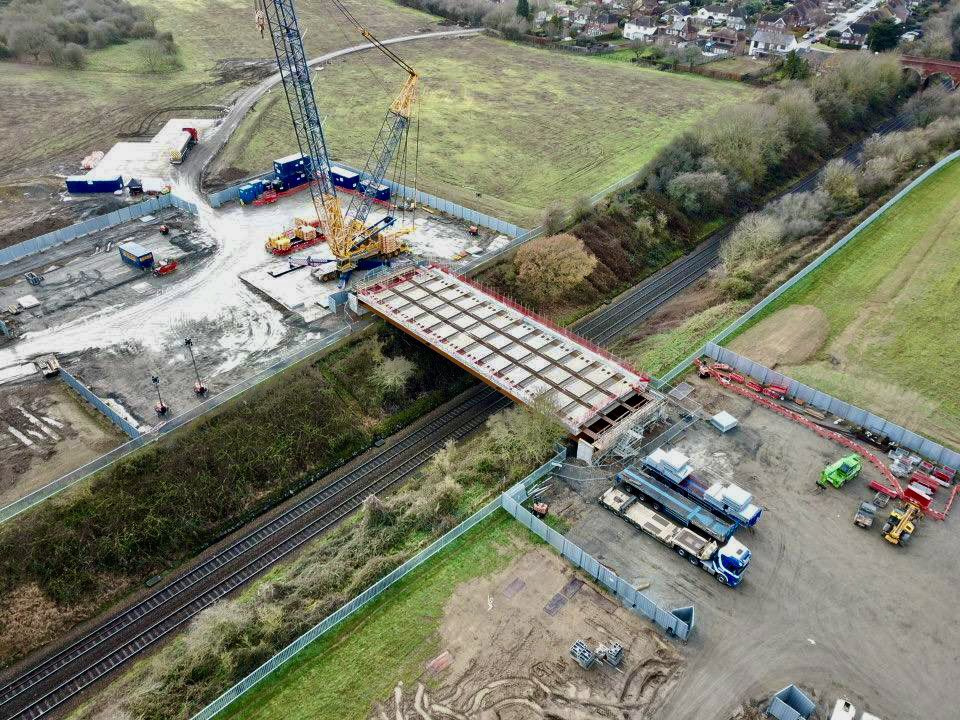

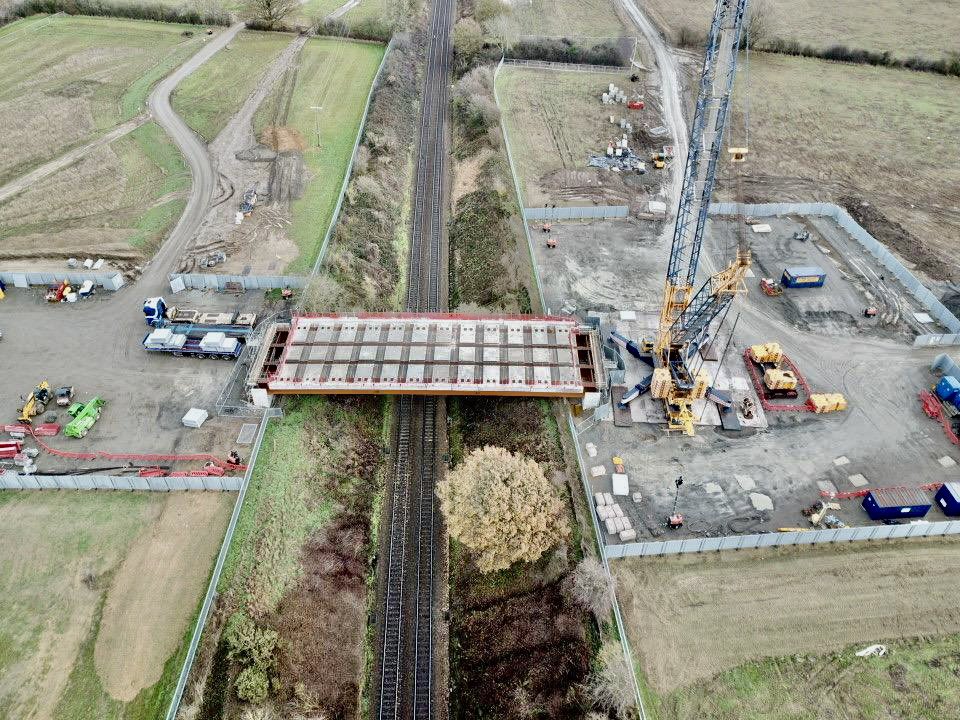

56 hours continuous working, 4 sites, 9 cranes, 3 trucks, 2 Roto tele-handlers, 8 MEWPS, 2 diggers, 177 staff, 1 entire hotel, 3 separate Christmas Day Meal sittings, 504 tonnes of steel, 1524 tonnes of concrete, 200 tonnes of piling,400 trackway panels and 1000’s stone…

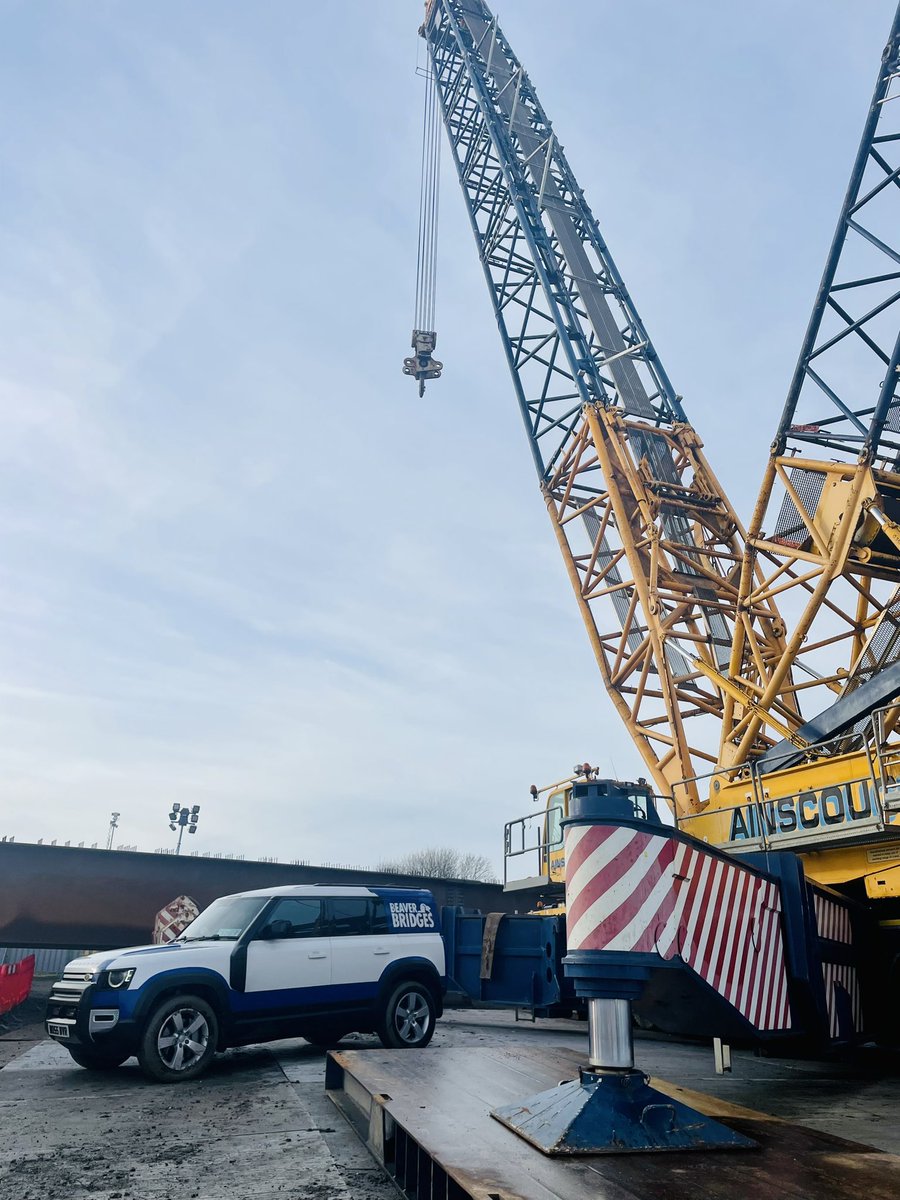

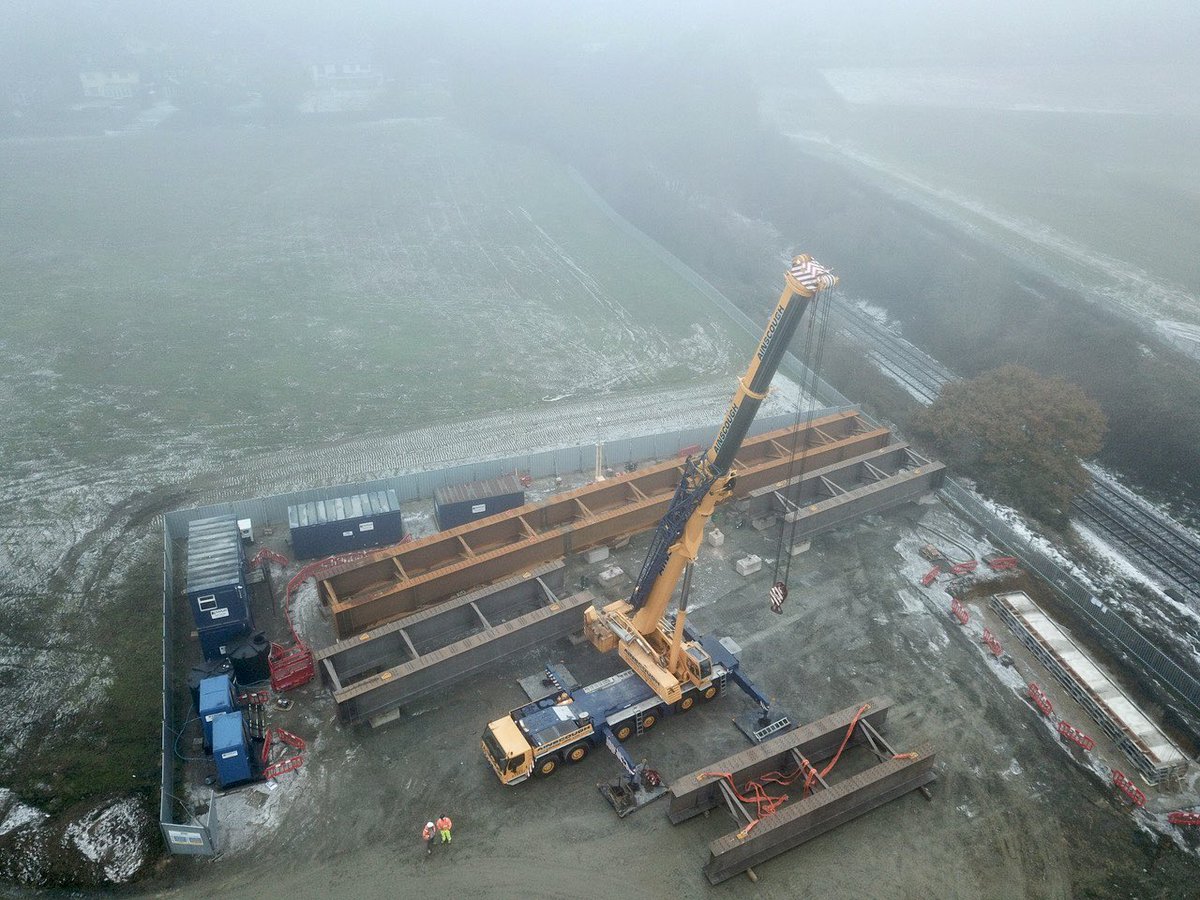

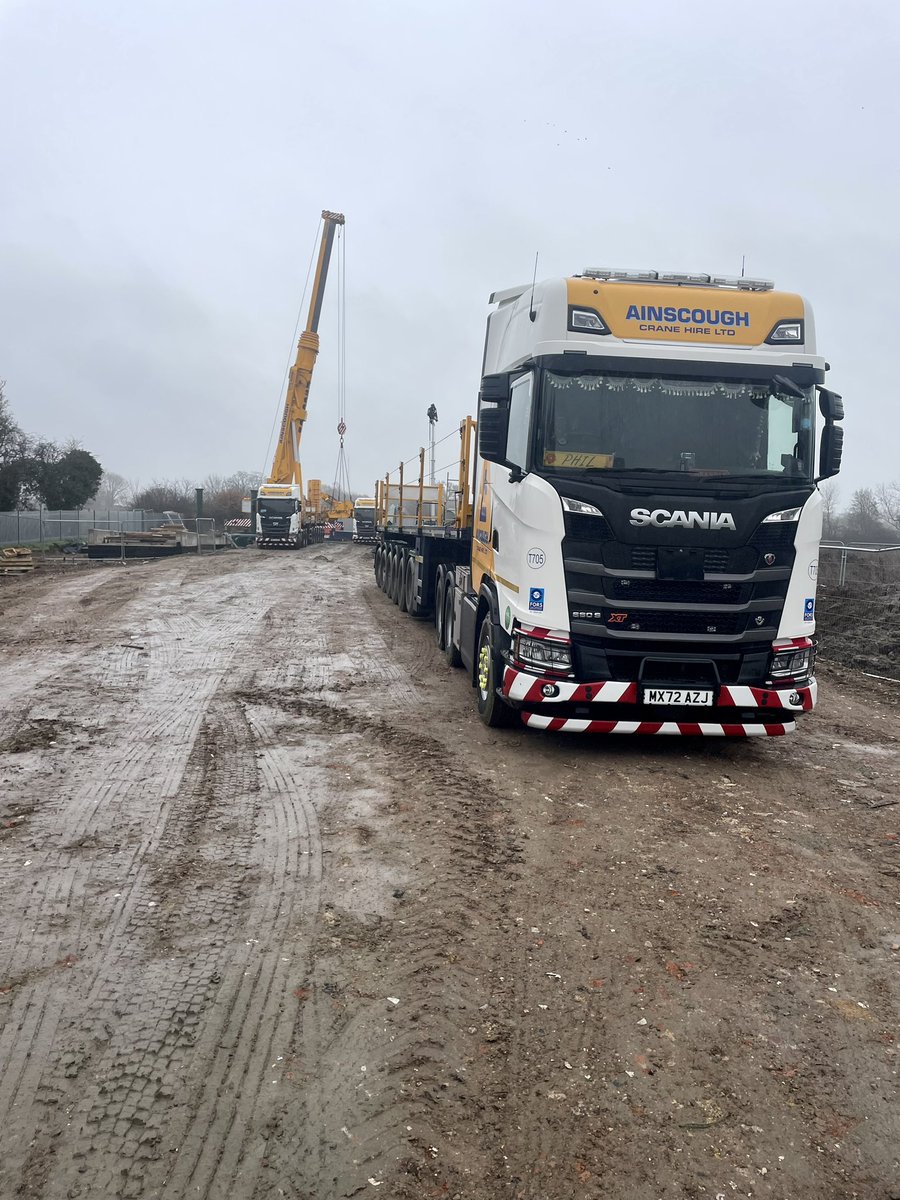

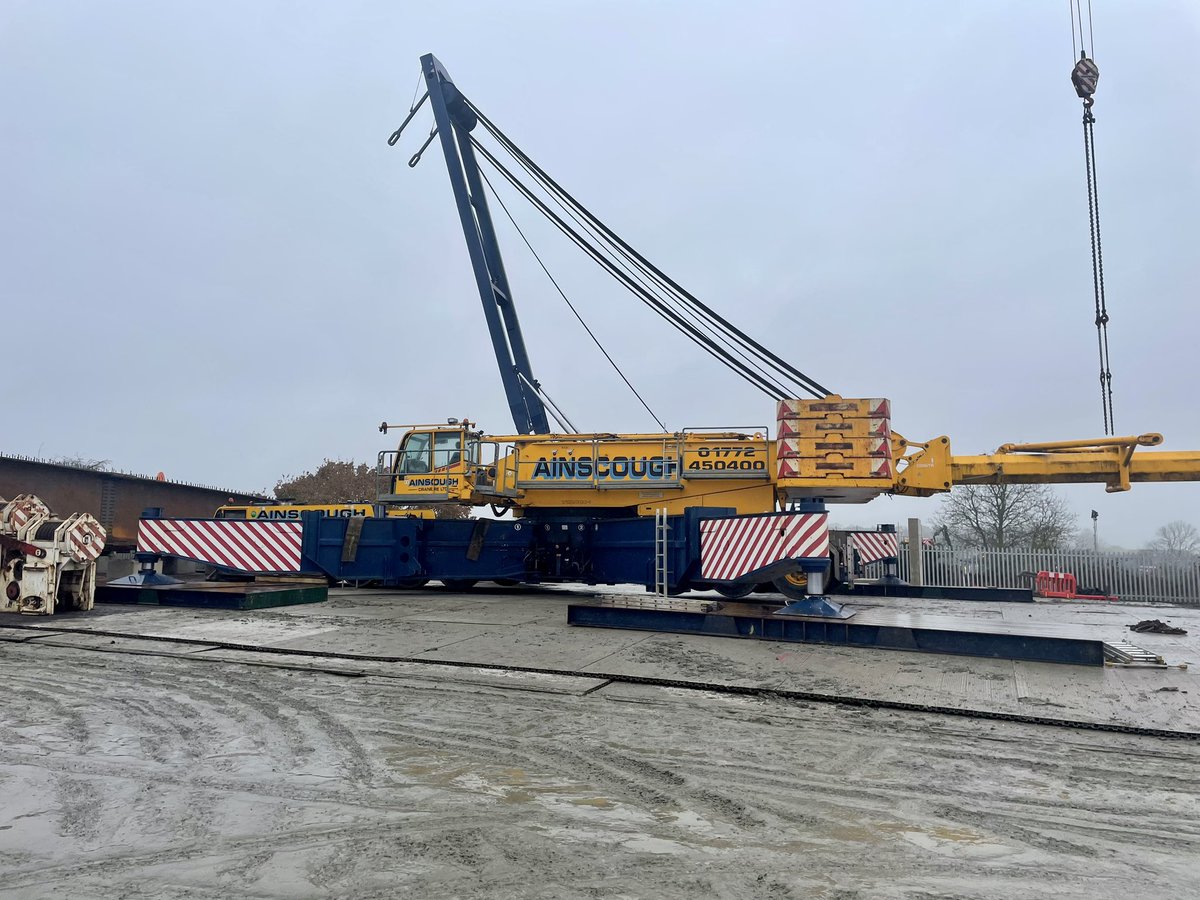

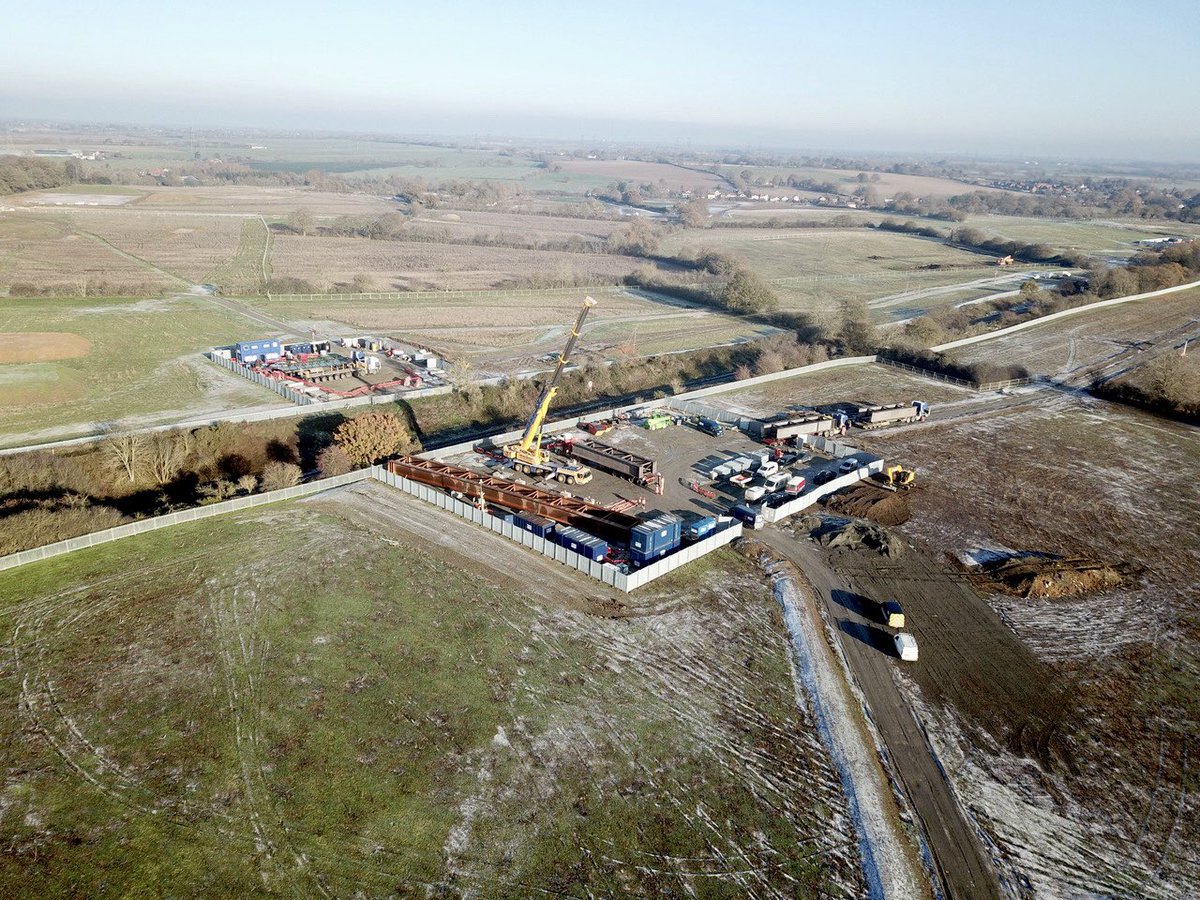

Building now for Christmas Blockade 2023 Logistics on another level as we sweat, prep and have one last epic push to Christmas Eve 2022 when are are finally All Systems Go for the biggest single project every undertaken by @BeaverBridges #WeAreBridge #BeaverBridges

IABSE Future of Design Conference IS BACK!!!!! and IN PERSON! linkedin.com/feed/update/ur…

@TheHappyPontist It looks reminiscent of the bridge that failed too to me. I can't see there being much trust in this bridge.

@chrisjackson184 Absolutely

The British Group has a new website stuffed full of information and events. Have a look here: iabse.org.uk

The KA #2021 round up! It’s been a BIG year for us in so many ways and we are so thankful for the people who have been part of the adventure with us! Read more here: kelsallarchitects.com/news/2021/12/2… MERRY CHRISTMAS! 🥳

@Brian_Duguid @IStructE We've received our copy too. Looking forward to reading

@chrisjackson184 Palladium Bridge, Stowe. My (old) neck of the woods.

@BillHarvey2 @theHREgroup @HighwaysEngland Wow very slight. Feel some of your Moire tell tales in slow motion would help the visual =)

If you want to see the value of infilling watch these two clips carefully. The stone moves past the brick which is supposed to be supporting it. vimeo.com/manage/videos/… Both spans filled with concrete and still it moves. vimeo.com/385231336 @theHREgroup @HighwaysEngland

@BillHarvey2 Yes I thought that too. A possible strengthening but would seem quite narrow. Steel parapets on a plinth also seemed modern.

@eddablin Those castellated beams are surely not 1901, either!

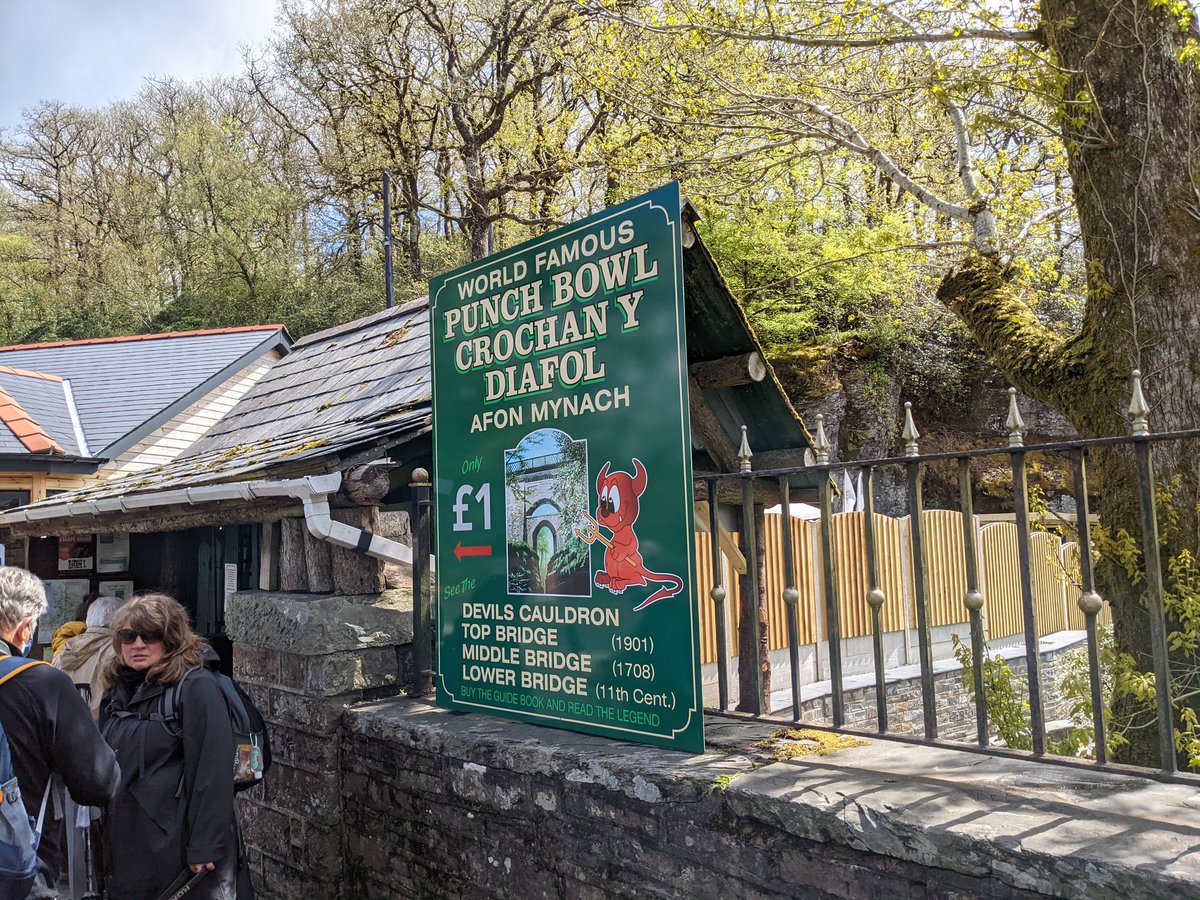

Holiday bridge spotting. Devils bridge at the end of the Vale of Rheidol Railway. 3 constructions on top of each other over a ravine. 11th century. 1708. 1901. Challenging and impressive and the longevity of the first!

@BillHarvey2 Yes. Does seem astonishing.

@eddablin Very far from convinced by 11th century date. Was that a local sign board?

@HistBridgesHV @chrisjackson184 Tintagel Castle

@dbmbridges Must have been struggling for comments of any importance

Scaffold design - hope you are well Simon
