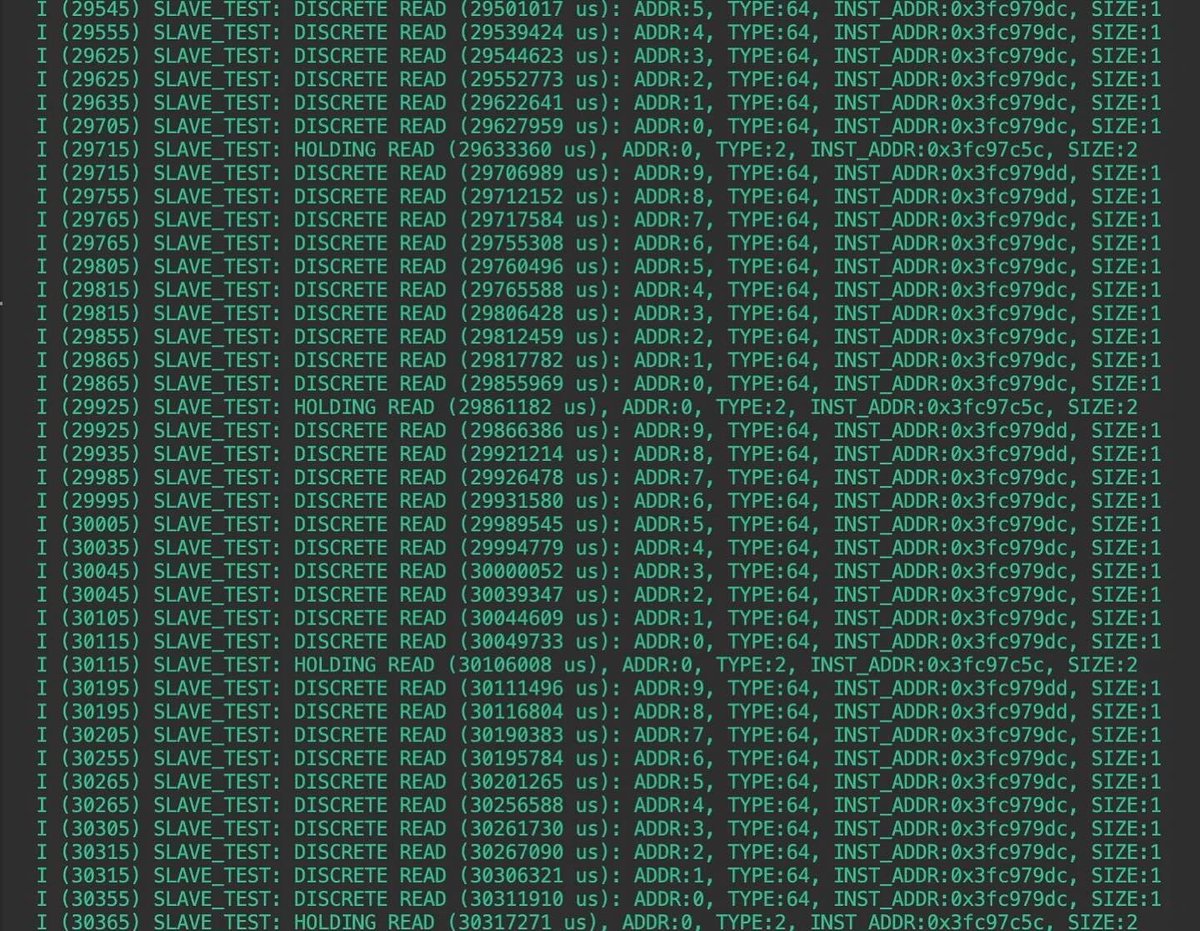

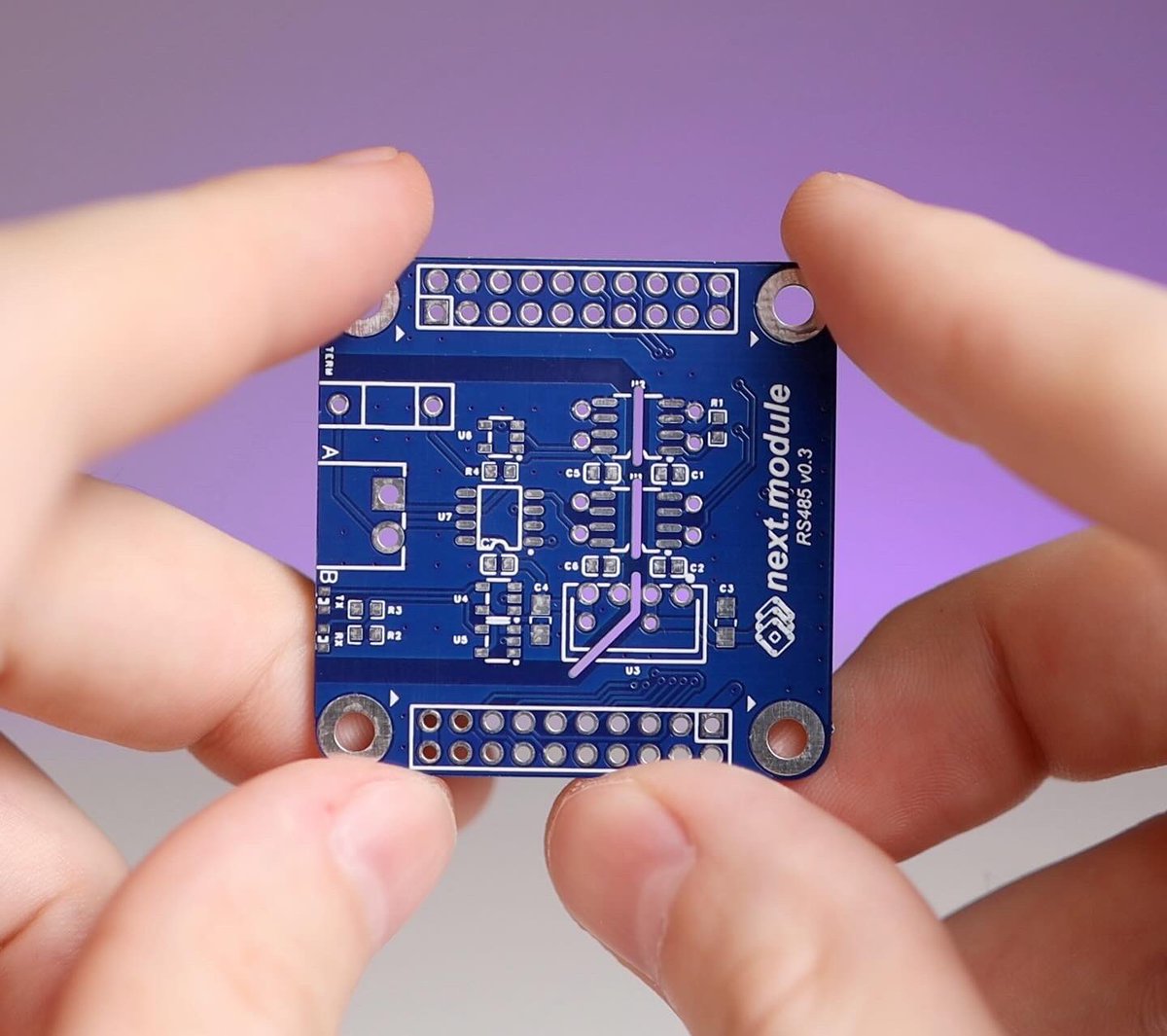

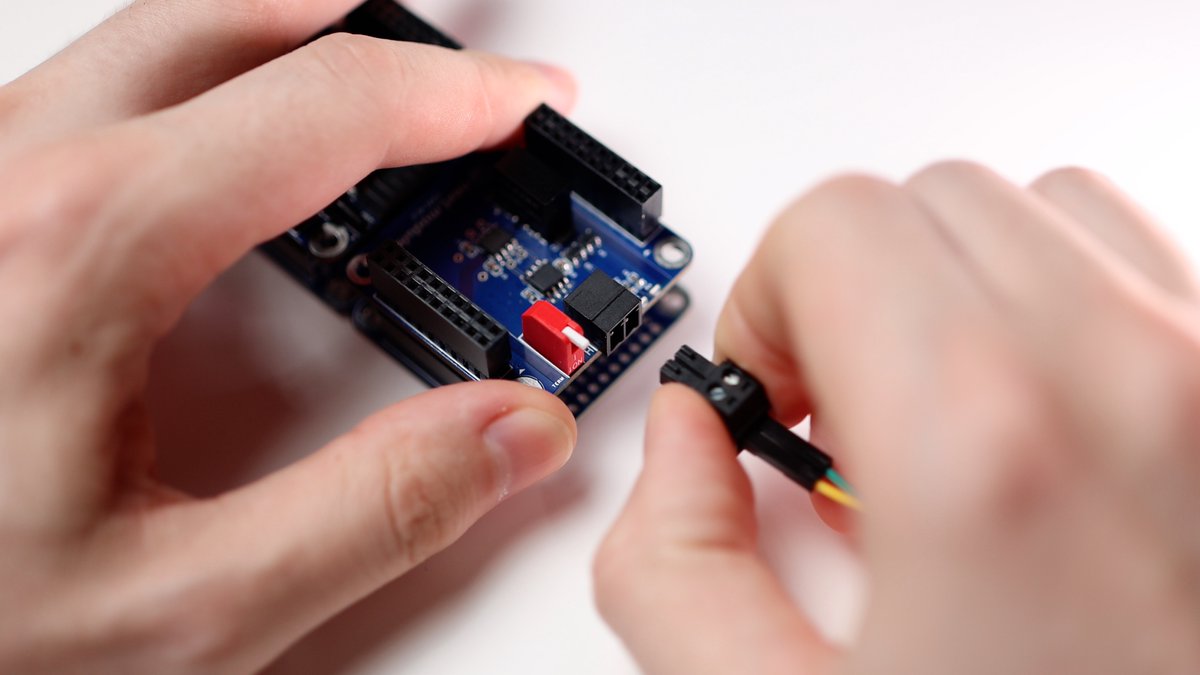

The RS485 module was tested up to a speed of 115.2 Kbps. I used the MODBUS RTU protocol and EasyBuilder Pro to test it. #nextmodule #rs485 #rs422 #module #industrial #plc #automation #iot #devboard

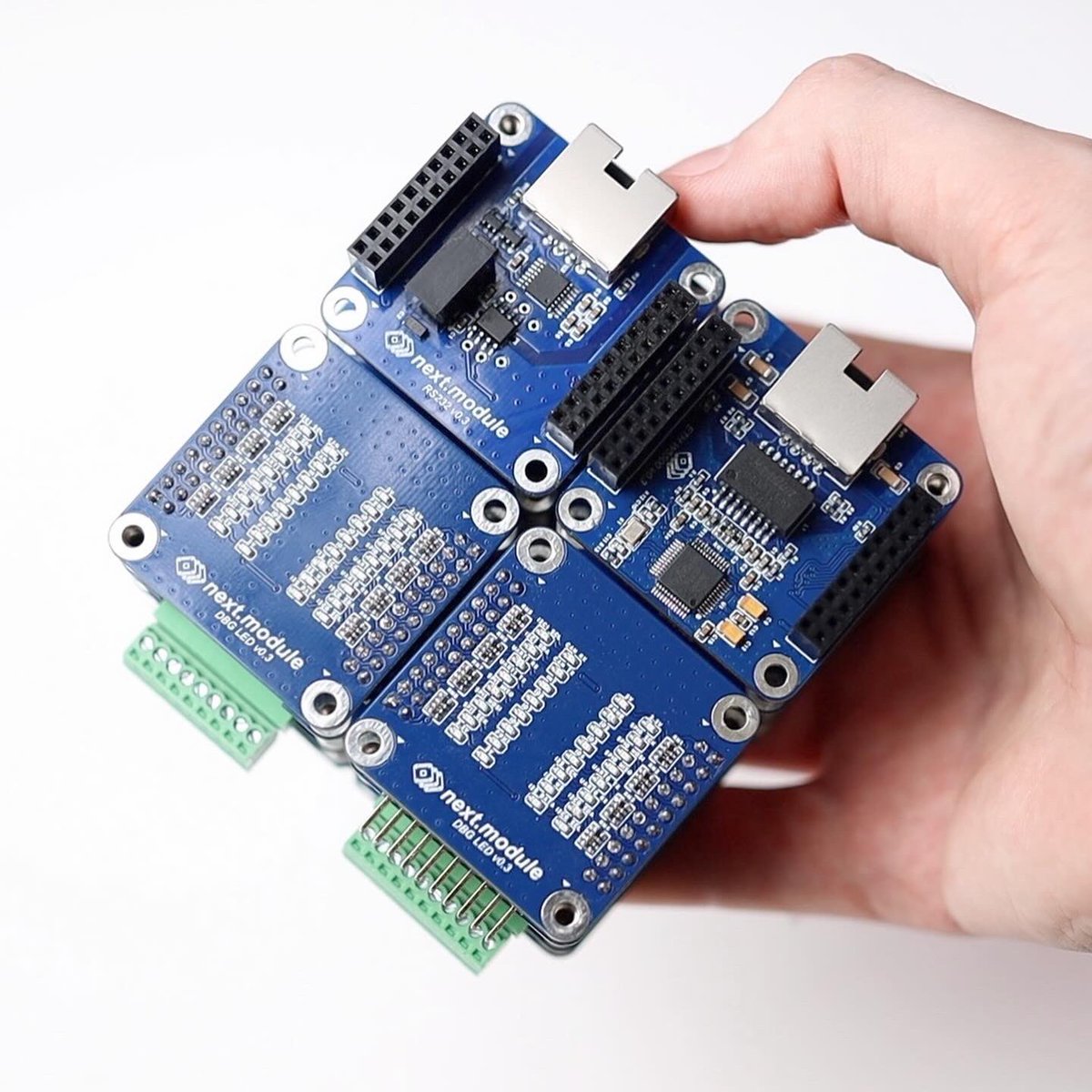

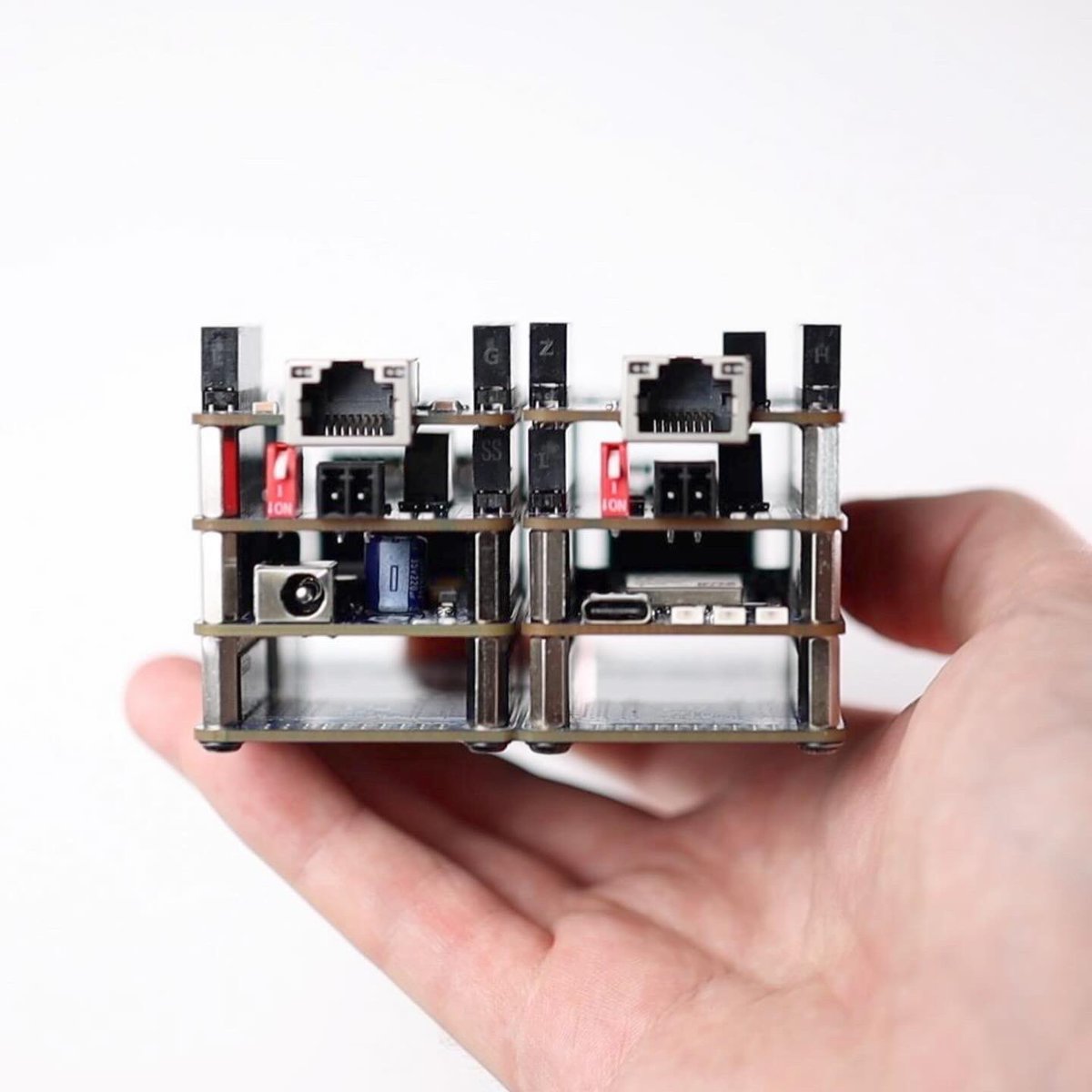

12 modules in one device: 1 x CPU ESP32S3 1 x PSU DC 1 x ETH W5500 1 x 8DI-ISO 1 x 8DO 1 x 16DIO 1 x CAN 1 x RS485 1 x RS232 1 x RTC 2 x DBG LED Size: 54.5 x 85.2 x 85.2 mm #nextmodule #plc #automation #iot #smarthome #esp32

next.module CAN (isolated)

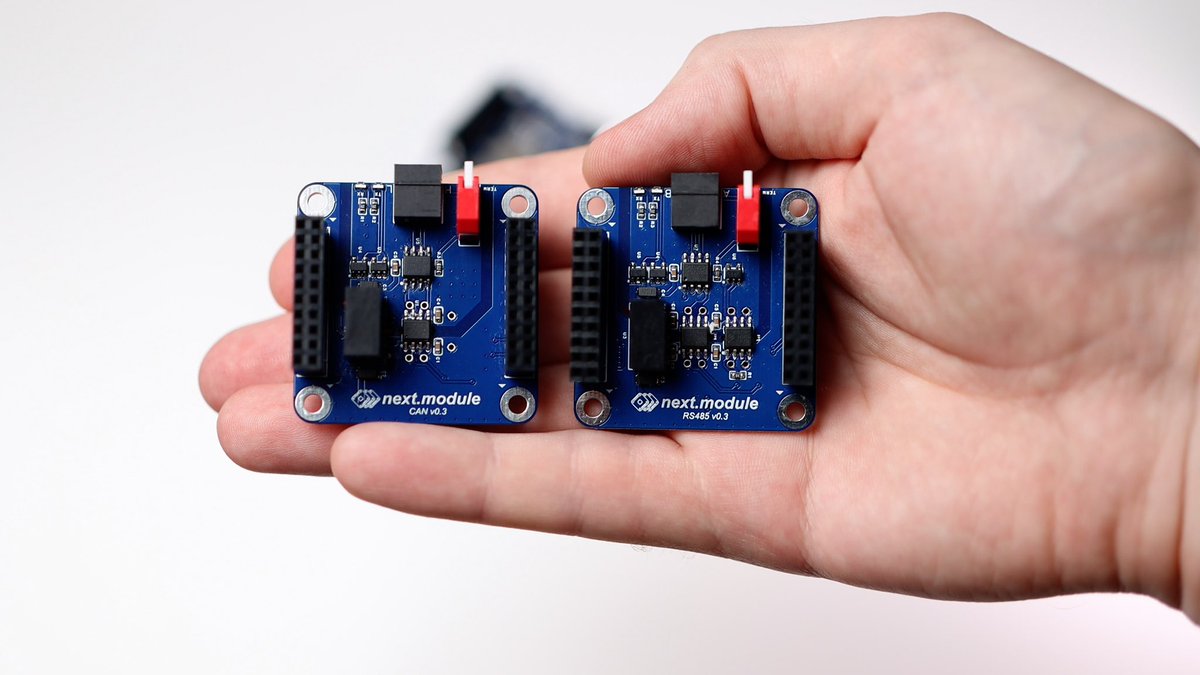

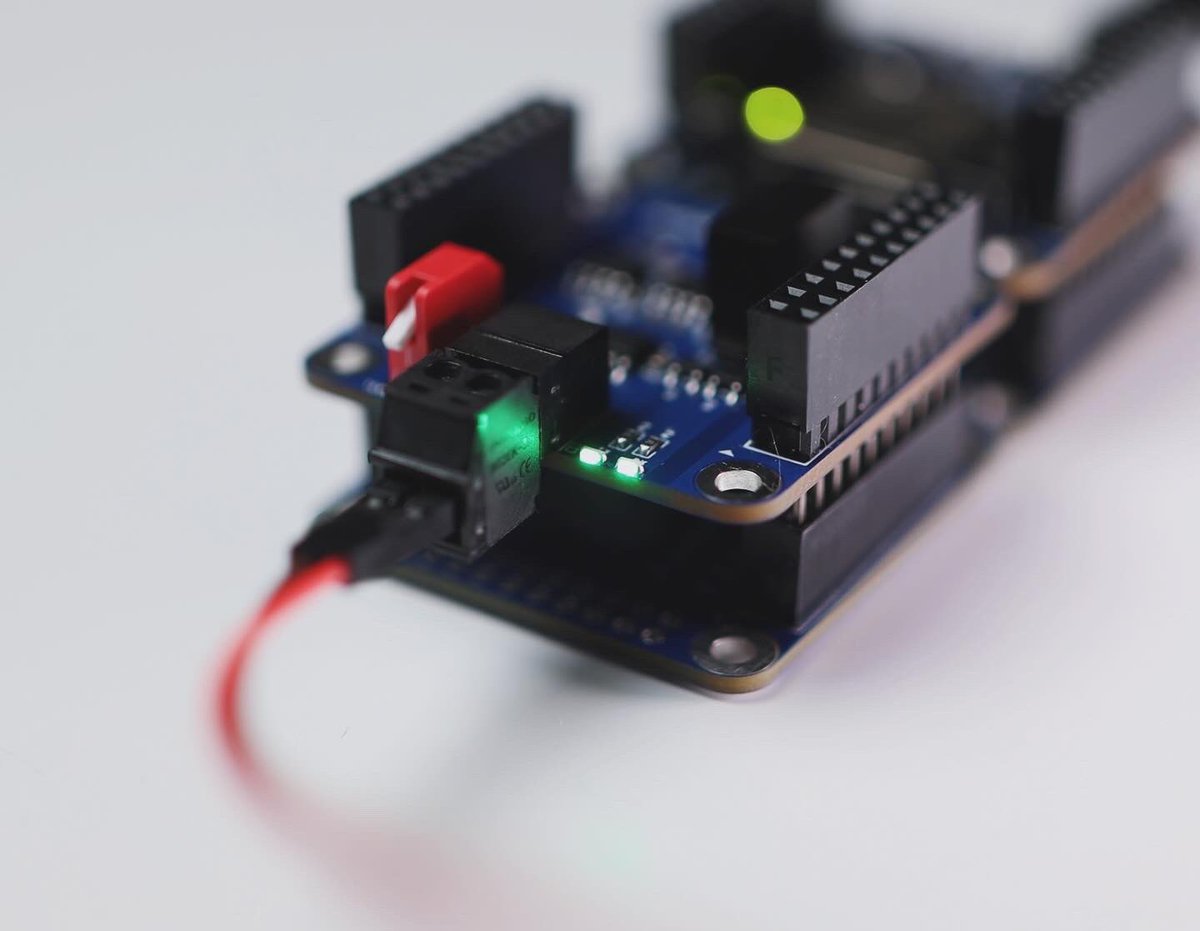

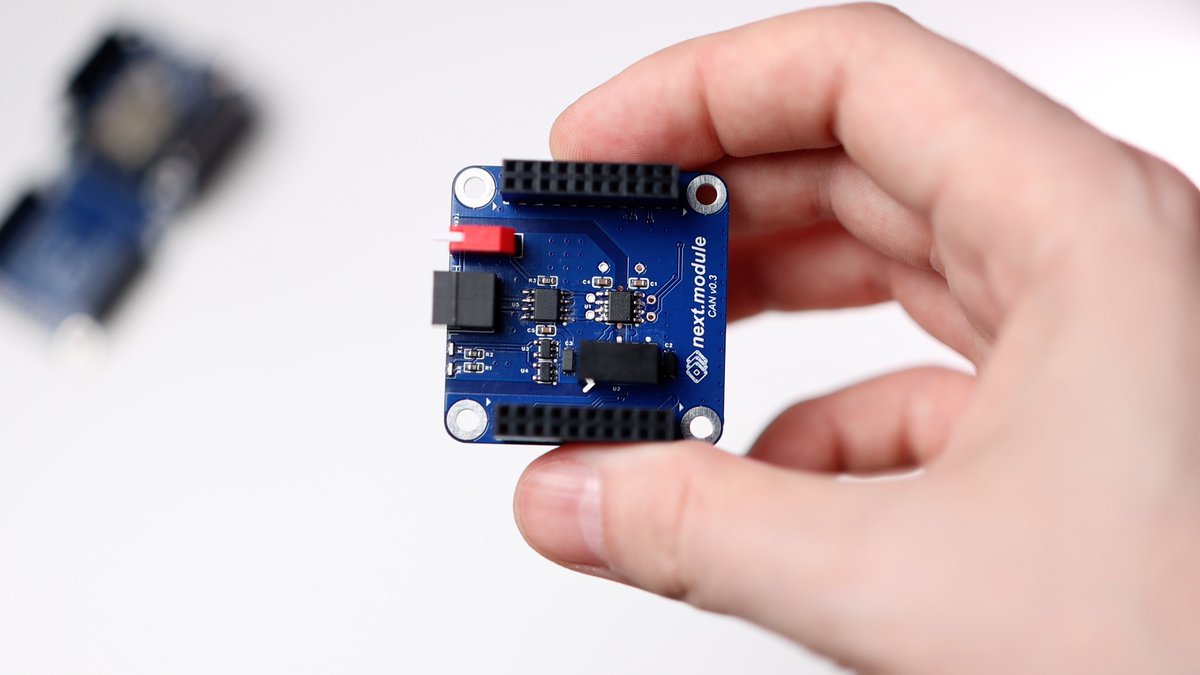

CAN module has been successfully tested! In both versions with and without galvanic isolation. It has been tested at speeds ranging from 10 Kbps to 1 Mbps. The most important thing is that the capacitive galvanic isolator from 2Pay Semi performed well, I had doubts about it.

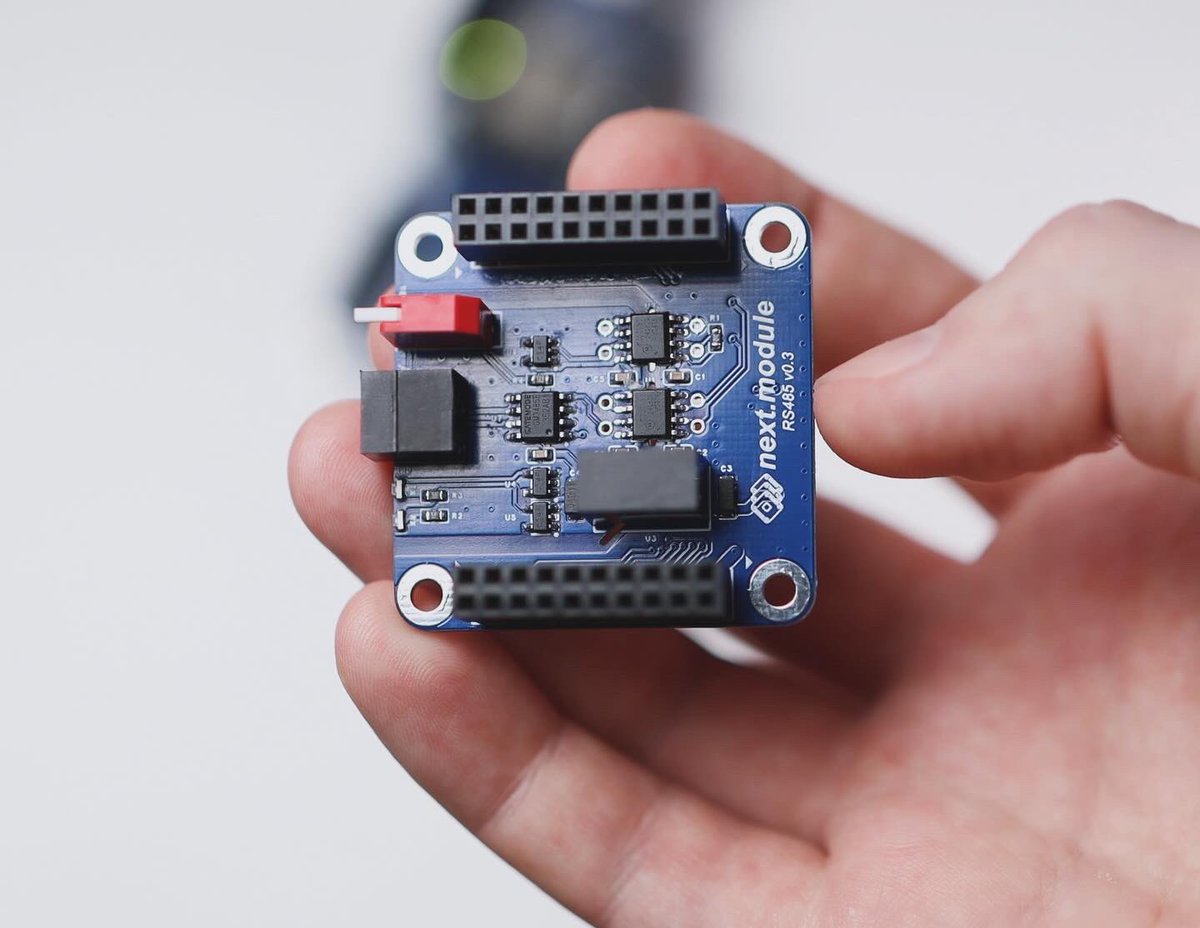

next.module CAN and RS485

next.module DIO modules testing

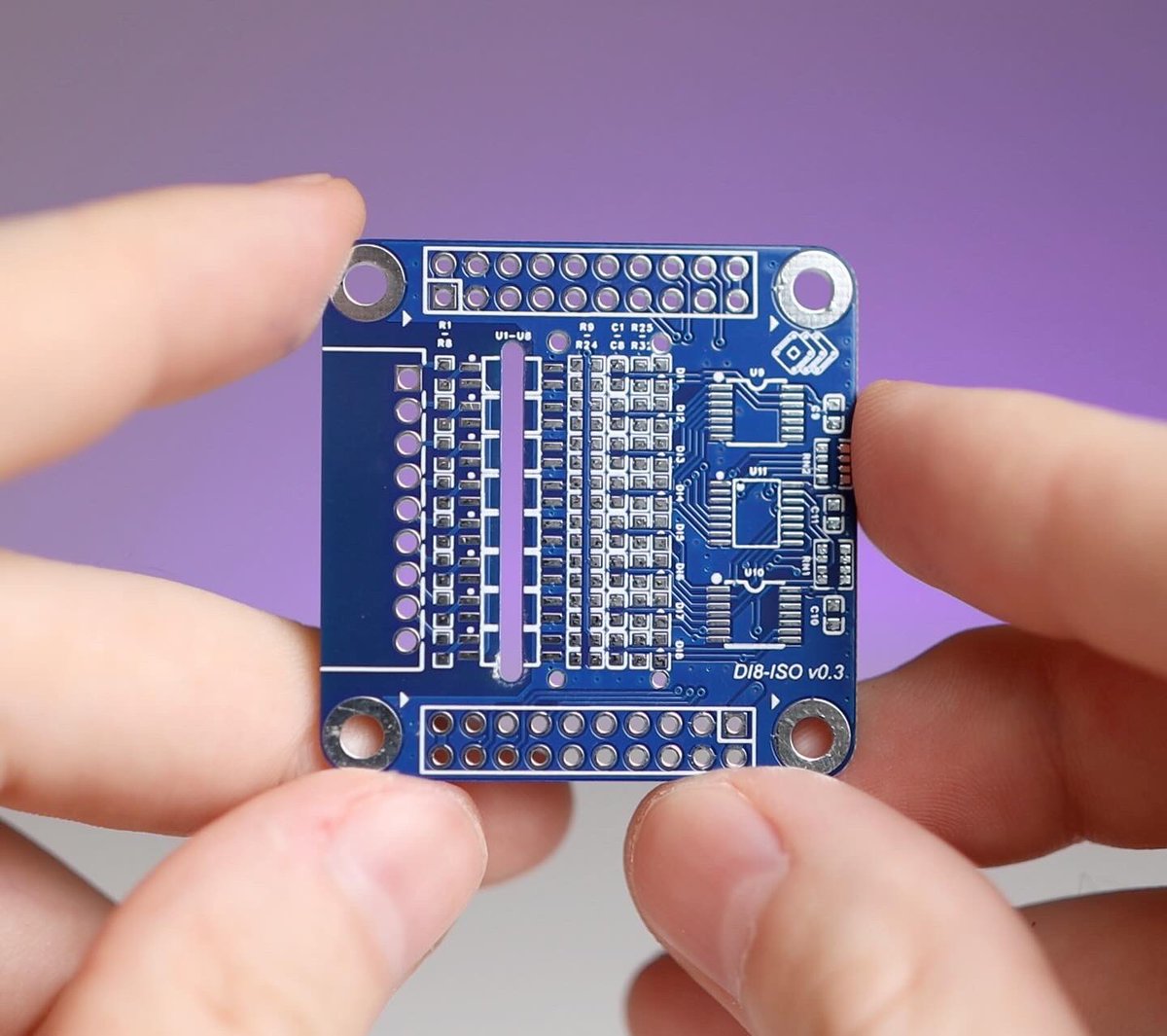

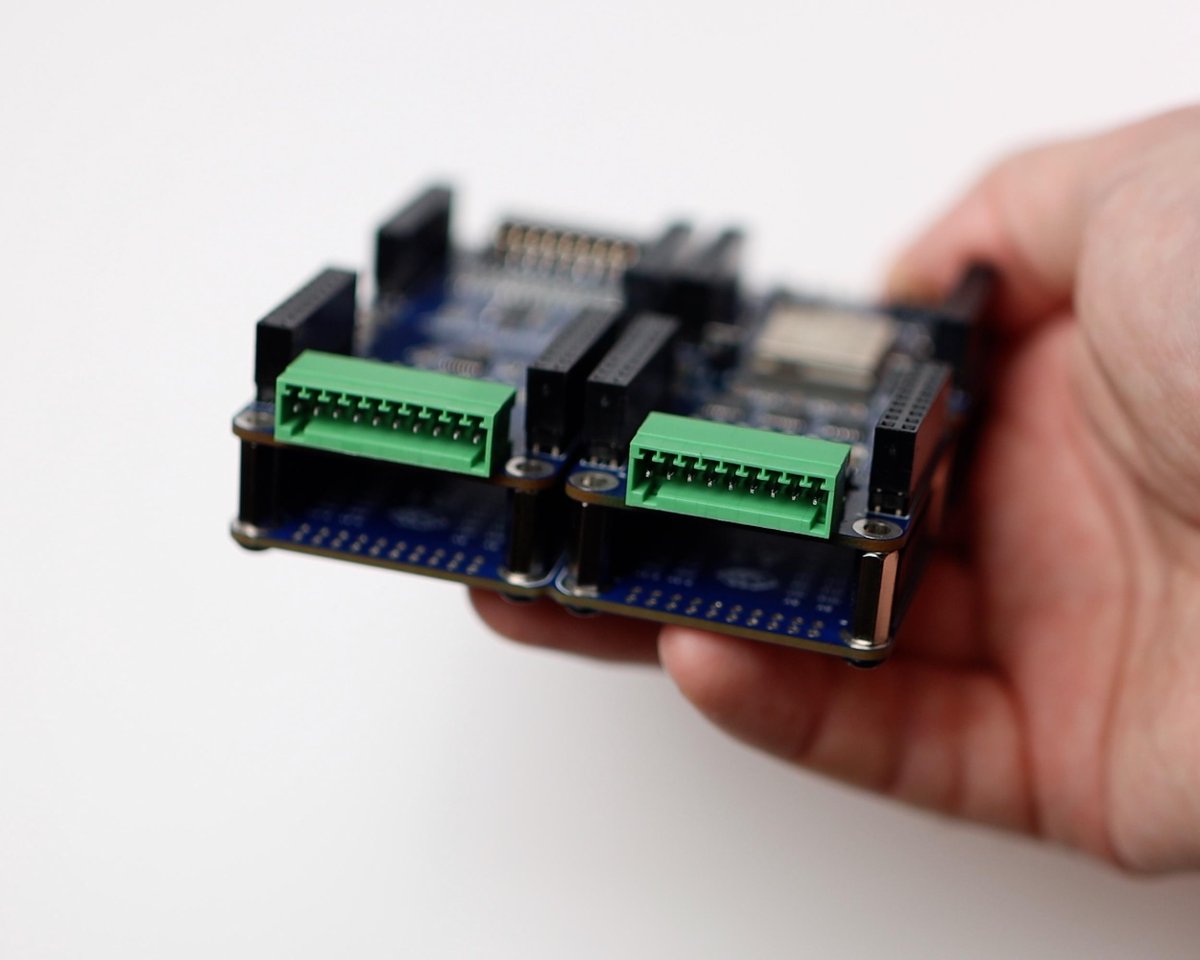

The modules DI8-ISO, DO8 and DIO16 have been tested and they all work fine. A few things that need to be fixed: 🟠 In DI8-ISO, I need to increase the resistance to limit the current through the optocouplers. 🟠 In DO8, I need to add a short circuit protection

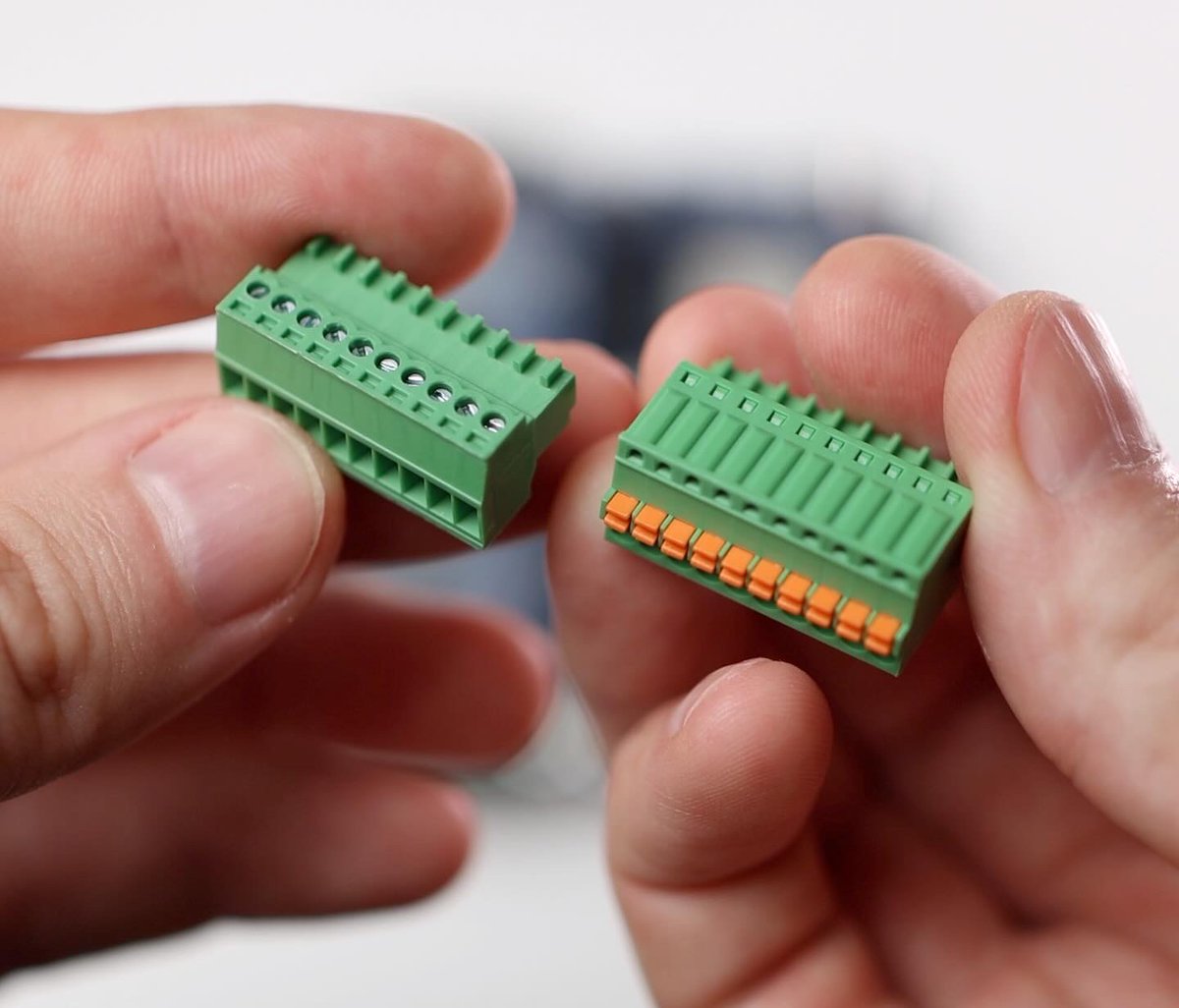

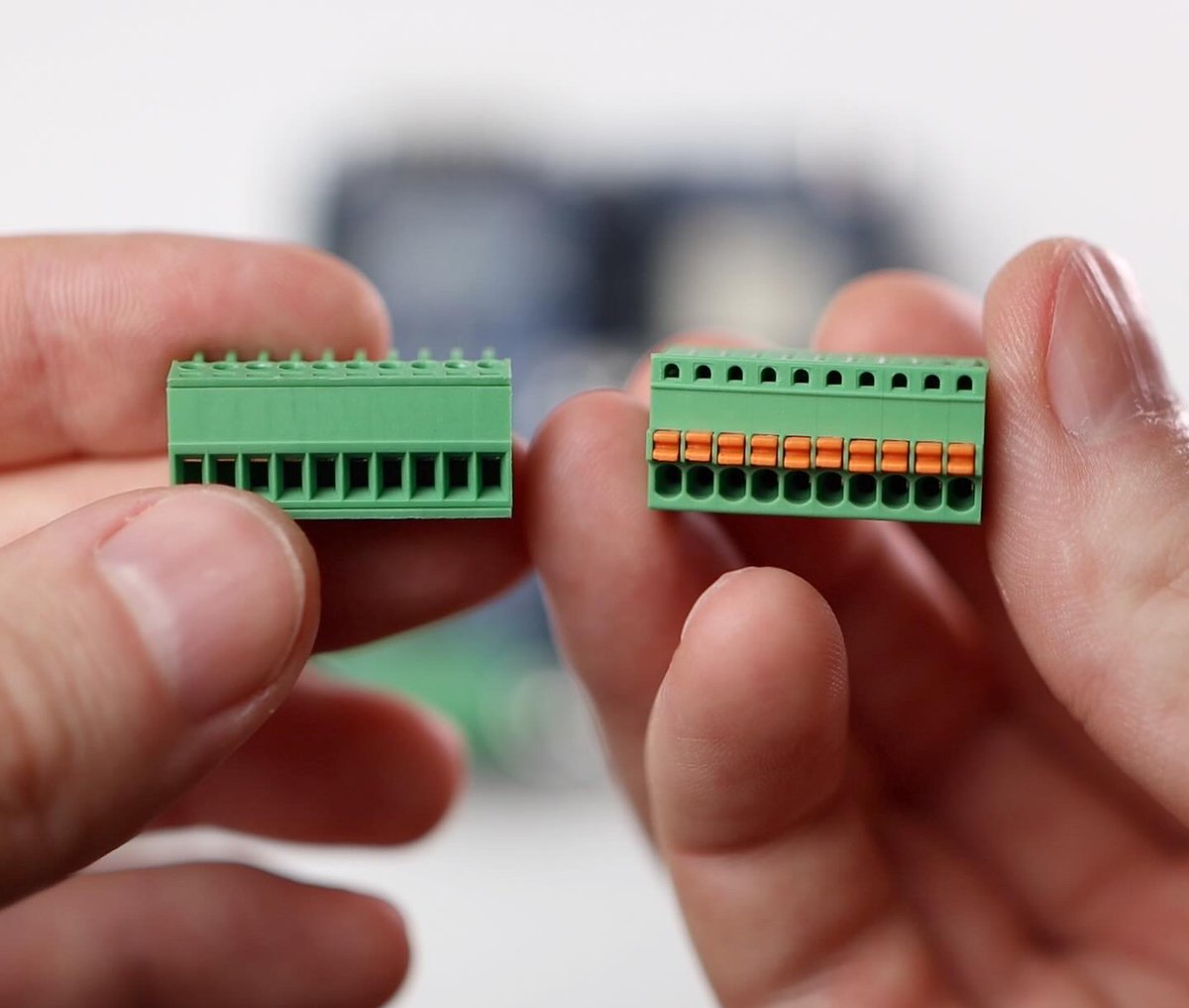

Connectors on DI8-ISO and DO8 modules may have different designs, such as screw terminals or spring terminals. Spring terminals are larger and slightly more expensive, but they provide good contact over time and in vibration environments.

ETH W5500 module testing

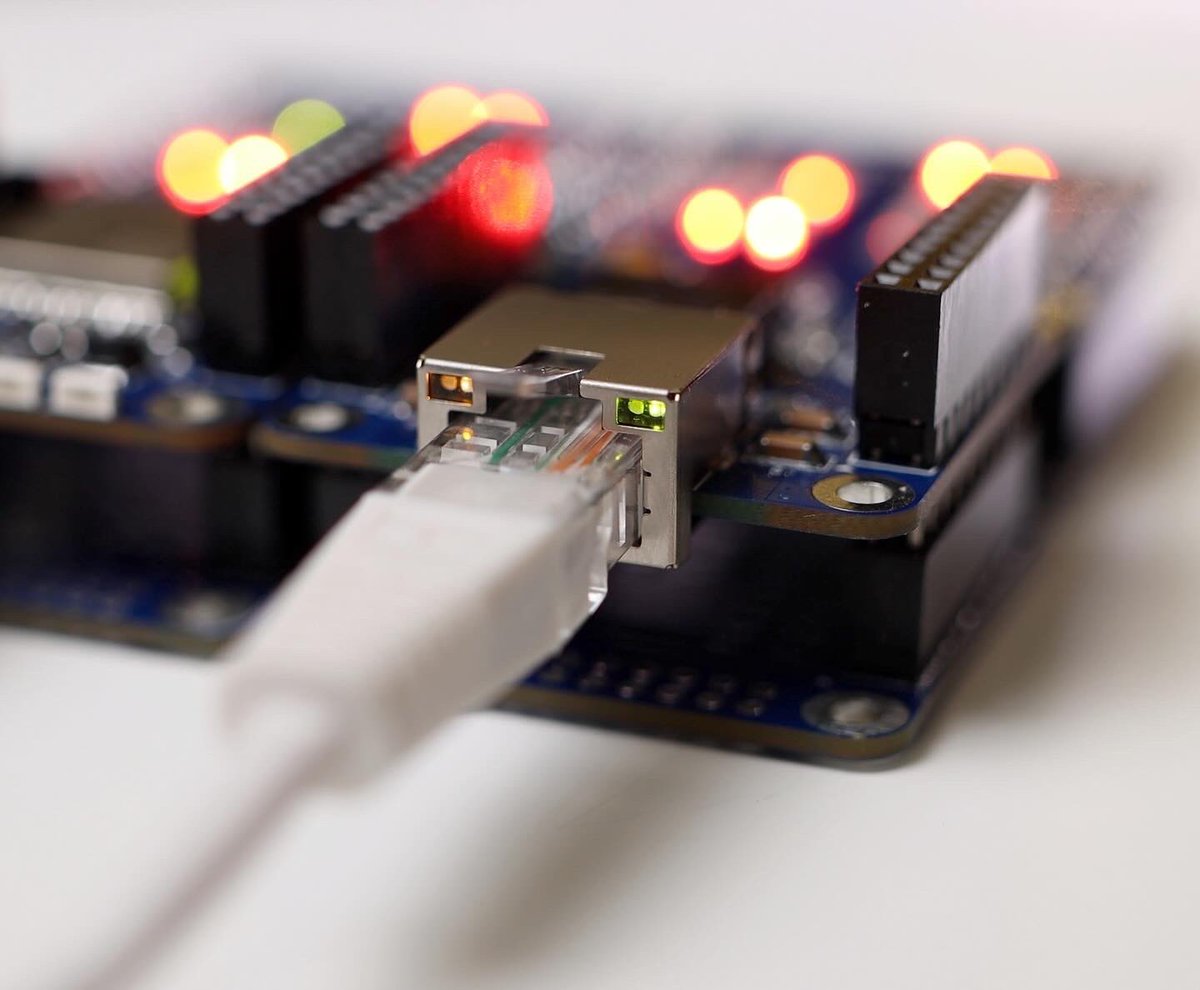

The ETH W5500 module is working! I was concerned about possible mistakes in the wiring of the chip on Ethernet side, but everything is ok. There are 2 issues: ✅ I forgot to add a 1 Mohm resistor that shunts oscillator ✅ The LEDs in the connector are too dim

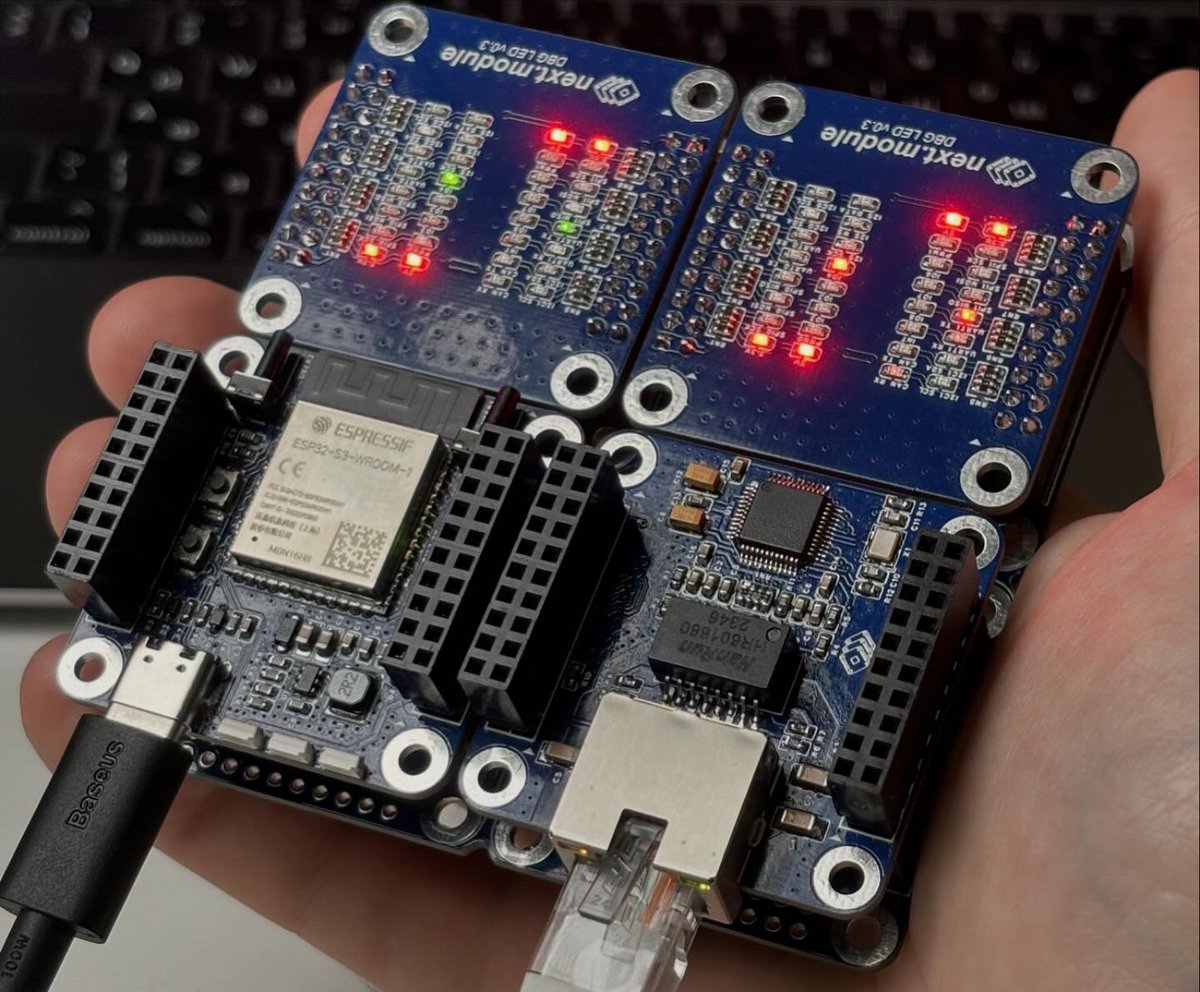

CPU ESP32S3 module: ✅ ESP32S3 is flashed and debugged via USB-C ✅ RGB-LEDs are working. The implementation of the WS2812 chip protocol is hardware-based ✅ DC-DC based works well, but needs to be tested at currents up to 1.5-2 A ✅ Intermodule connectors are convenient

next.module CPU ESP32S3 module testing

next.module prototype testing started!

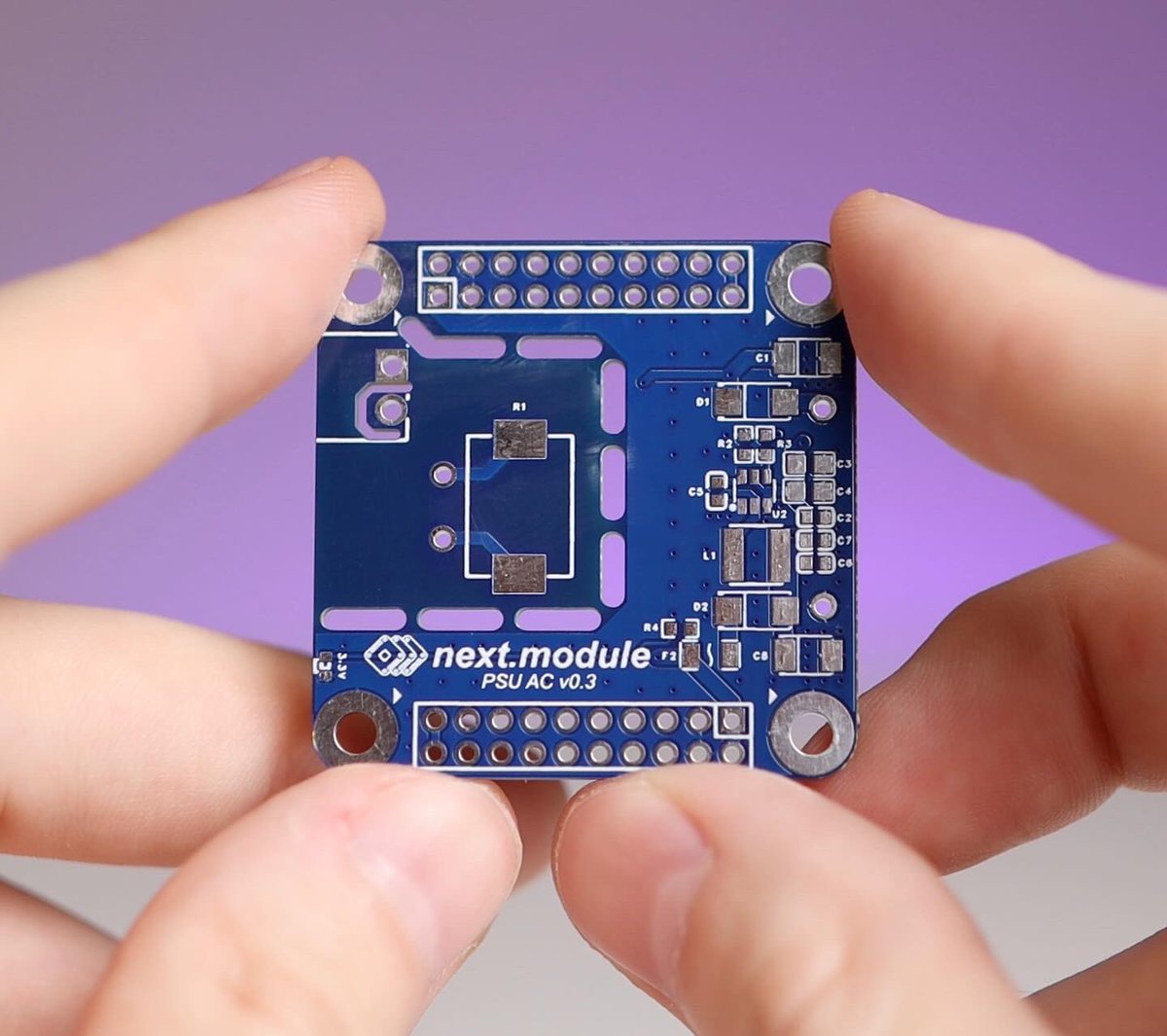

PCBs for first prototypes
