Kai Harrison

@masonmaps @DrSSahaCardio I like this

Over 500ms of fractionated EGMs across #HDGrid, capturing entirety of TCL during this left atrial flutter. Hx cryo PVI. credit @DrSSahaCardio

Focal Atrial Tachycardia localized to Crista Terminalis triggering Orthodromic Reciprocating Tach mapped to Inferoseptal Mitral Annulus. #EnSite Continuous Score Map correlated well to AT P-Wave morphology. #PDXMapping by @MarissaM_EP @NotYourAvg_PR @Ashit_EPS

Entrainment with Orthodromic Upstream Capture, 85% of TCL at suspected posterior wall circuit. #HDGrid fragmented electrograms created challenge in accurately identifying consistent PPI’s. NNE (Number Needed to Entrain) color map created in leu, right image. @EPS_PDX

The anterior right pulmonary vein antrum, an under appreciated topography? Atrial diverticulum seen here, perhaps culprit of temperature & impedance limiting during Radiofrequency #Ablation. Imaged during unrelated, Focal Atrial #Tachycardia #Ultrasound #EPeeps credit @Ashit_EPS

Termination of incessant AT, localized to non-coronary cusp corresponding to multiphasic #ECG morphology. @JaylynnMariePDX @cstumpflEP

Atriotomy scar AFL on a patient w/ prior CTI line. CS activation was stacked, and initial LA map appeared focal from near anterior RSPV os. Cryo PVI for parox AF + focal RF in the earliest LA spot had no effect on tach. Subsequent RA map added a missing part to the story. #EPeeps

Pt. Presented in 670ms stable ischemic #VT brought in for persistent re-do ablation. Hx ablation on ant. LV wall, LVAD. Beautiful #EGMs highlighted by #HDGrid at critical isthmus helped with quick termination via #Ablation @AbbottCardio

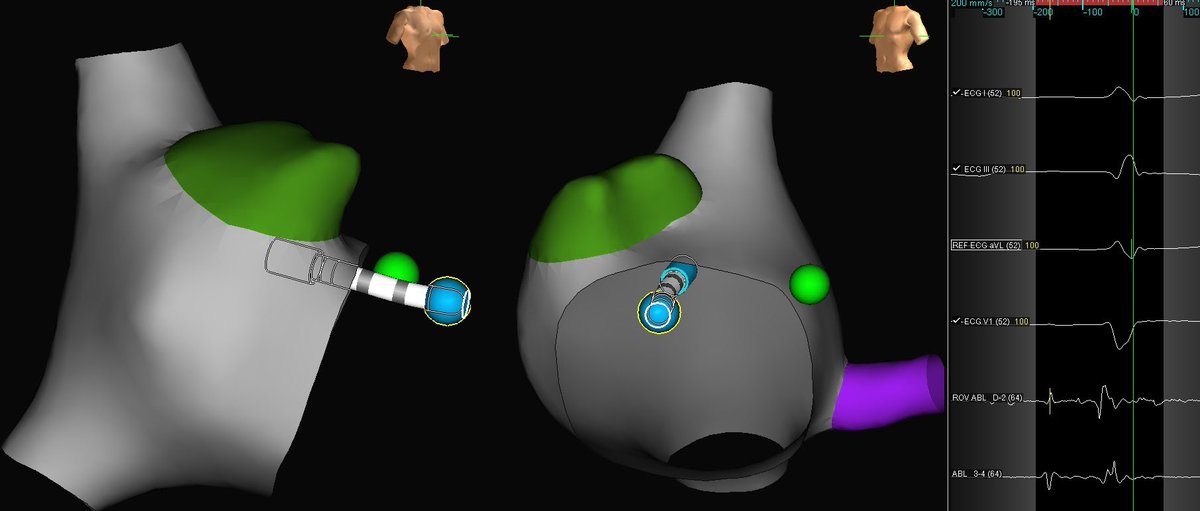

Note the HIS-like signal seen in the location of the Mahaim pathway. (HIS region marked in green)

Ablation of #Mahaim AP. 6yo Pt. Brought in for successful treatment of WPW, after which a Mahaim AP was diagnosed, assessed, located, and successfully ablated on the first burn. #EPeds @brandon_mukai

Satisfying termination of focal atrial tachycardia, preceding p-wave by 41 ms #HDGrid

@drhbkmd @brandon_mukai I have heard this most commonly described as atriofascicular, however some, including the physician that mapped this case, describe it as nodofascicular since the Mahaim acts as a secondary AV node.

@sir_mapalot @brandon_mukai Is this fasciculoventricular?

Ablation of #Mahaim AP. 6yo Pt. Brought in for successful treatment of WPW, after which a Mahaim AP was diagnosed, assessed, located, and successfully ablated with #TacticathSE on the first burn. #EPeds @brandon_mukai

WPW mapped with #HDGrid allowed us to see fusion in two distinct areas to determine an early bifurcation of the pathway. Pre-excitation eliminated using #TactiCathSE

Antero-lateral papillary (ALP) PVC mapped on #EnsiteX’s magnetic primary (Voxel) mode. ICE and #HDGrid was used to map and locate the target 🎯. Earliest point was -52 early on the medial side of the ALP. @JohnSummers_MD

Redo AFib. An AAFL was induced with extra stimulus pacing, but unstable and difficult to map. Our CS pace ILAM map done with #HDGrid led us to a clear ablation target. Check out that isochronal crowding! #EPeeps @AbbottCardio

6 y.o. pt with pathway mediated SVT. Diagnosed as PJRT during EPS due to long RP, decremental props, and retrograde cond through path. Upon induction, 2 tachs alternated with slightly different p-wave and CS morphs. TactiCath SE used for successful RF abl of both pathways! #EPeds

Atypical AFL Post Surgical Maze - Hx LAA ligation, MV repair, CTI, & line from LSPV to appendage. 3D Entrainment confirmed passive activation of PW. Mapped with #HDGrid @Arek_EP

Grid at channel. >100ms of continuous, fractionated signals spanning diastole.
