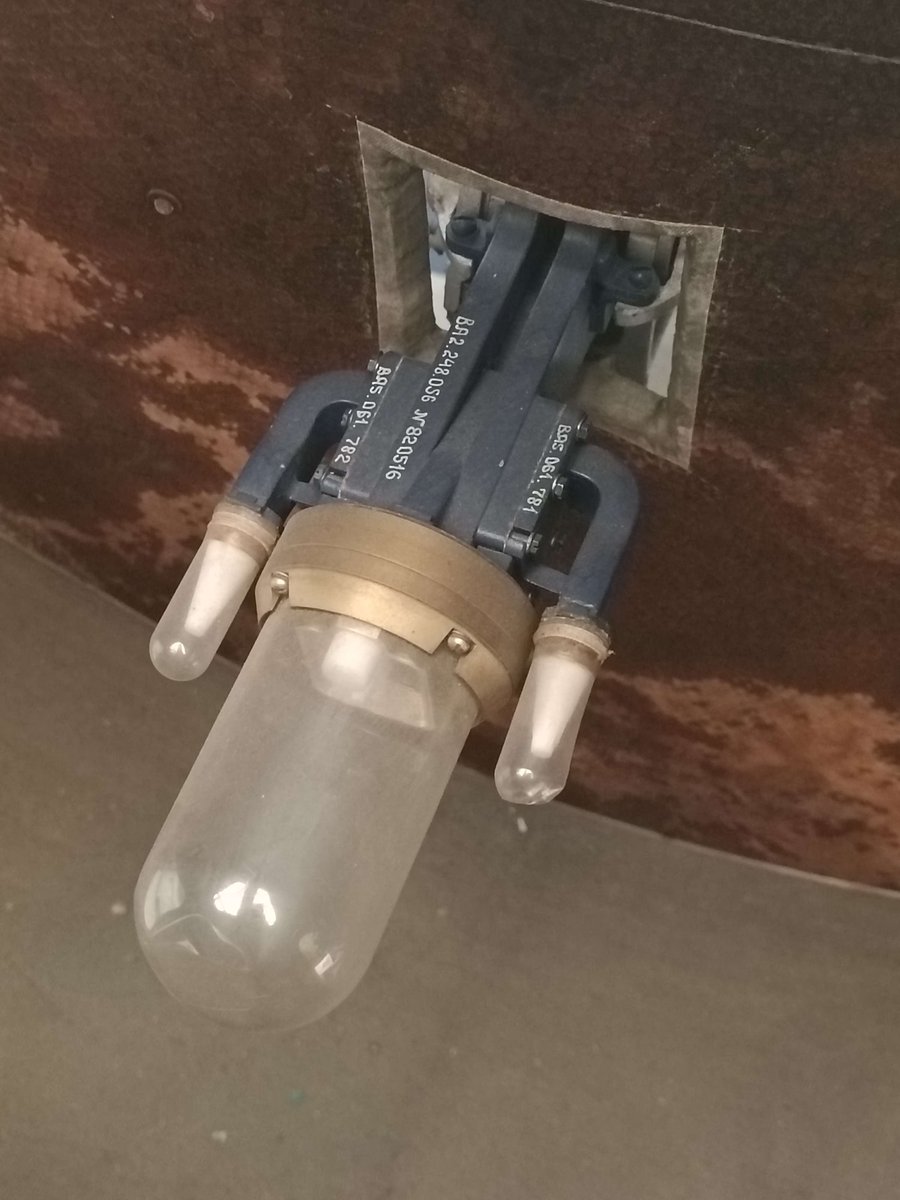

Il-28 bomb bay

(2/2) 1. 2. and 3. - antenna steering mechanization 4. - some more waveguides in the main assembly

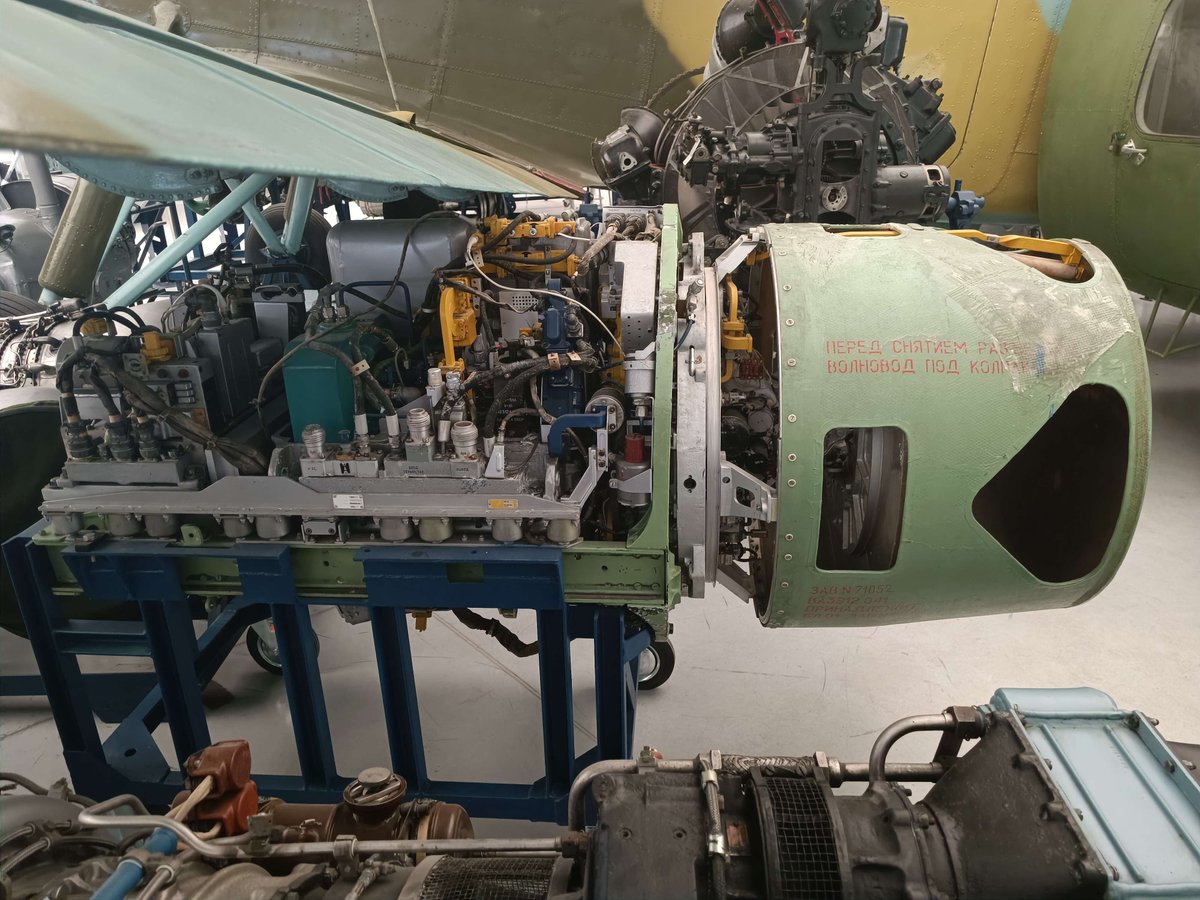

(1/2) Some closeups of RP-23D-III-01 radar (MiG-23MF) 1. and 2. - the whole radar set 3. and 4. - main waveguides (monopulse)

@Amizaur2 Generally yes, I will post more about it soon™️ i hope

@Kubojd Could it locate emiter coordinates or was it only an operator-missile interface for target selection ? If could locate emiters, do we know what kind of angular precision it had, or what was it's ranfe-finding capability, if any ?

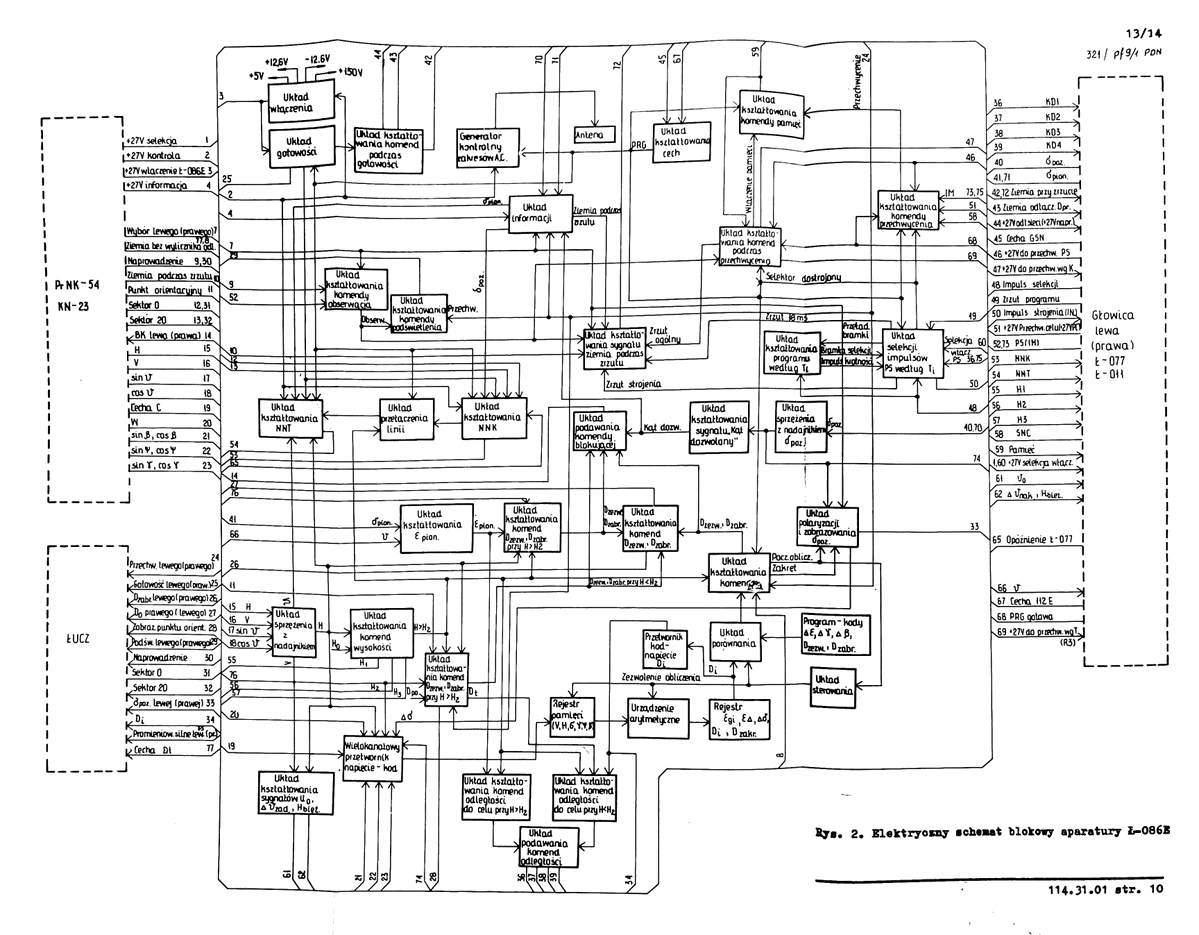

Block diagram of L-086E Vyuga, perhaps the most common soviet anti-radiation missile targeting system,typically connected to the Luch display for the pilot. In this case, integration within Su-22M4 is shown (PrNK-54 is the onboard nav-attack system)

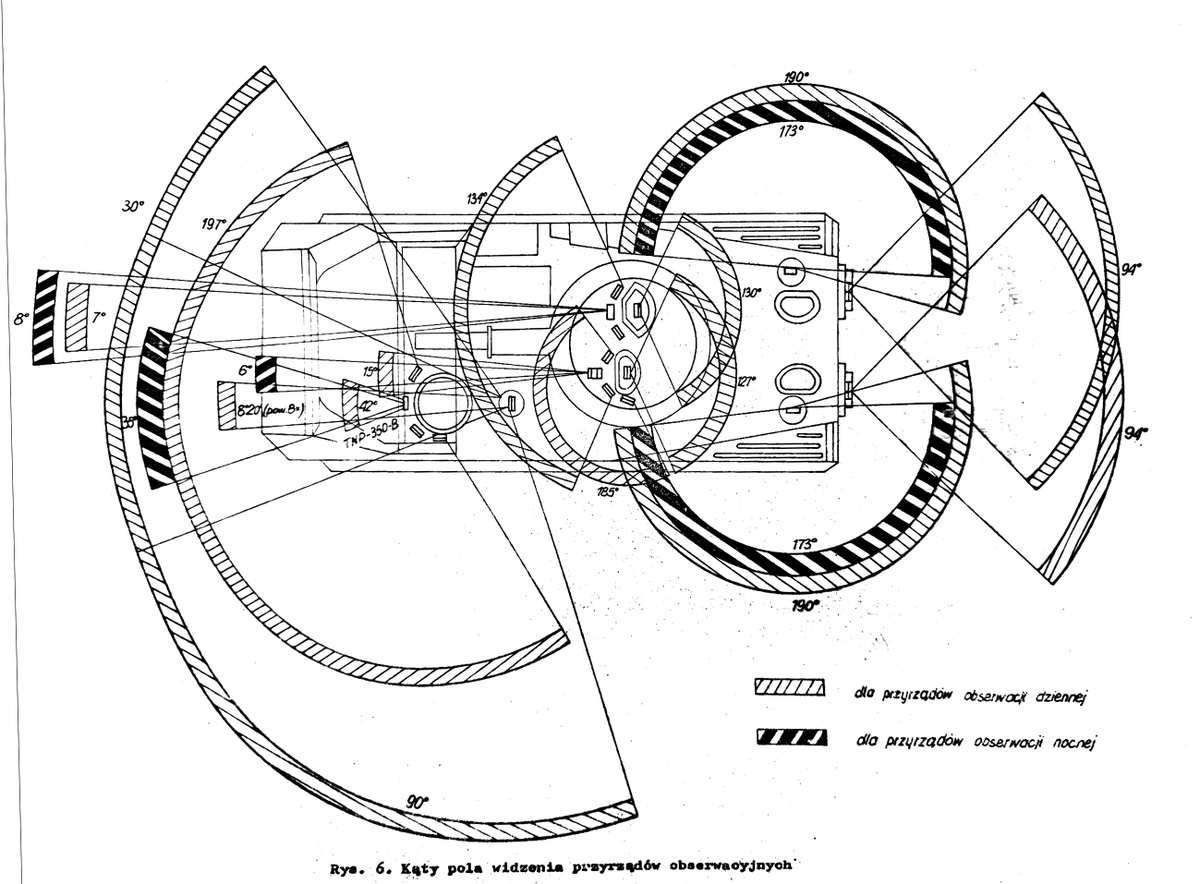

BRM-1K fields of observation of various optics and vision ports (day and night optics marked separately).

Some more BRM-1K diagrams.

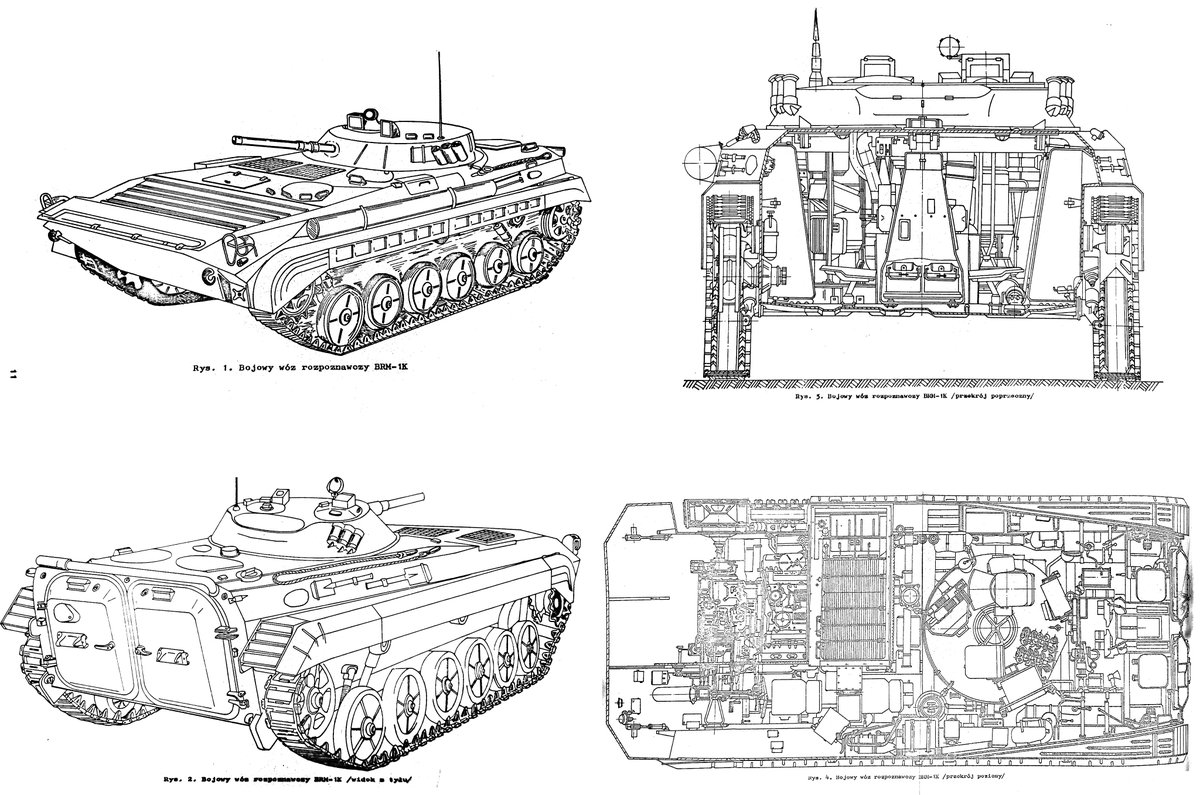

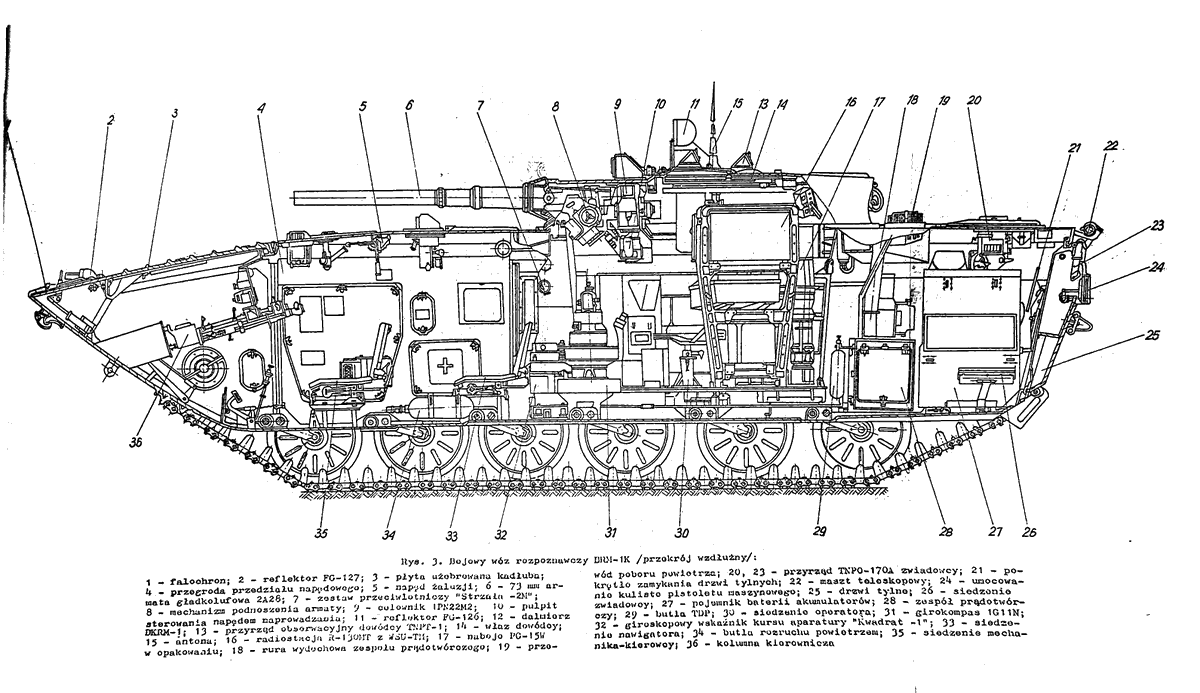

BRM-1K recon vehicle cross section

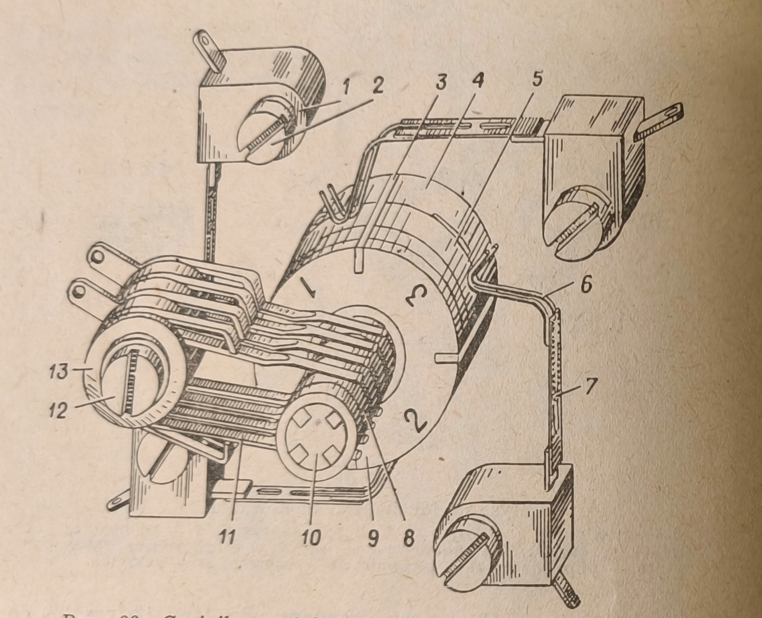

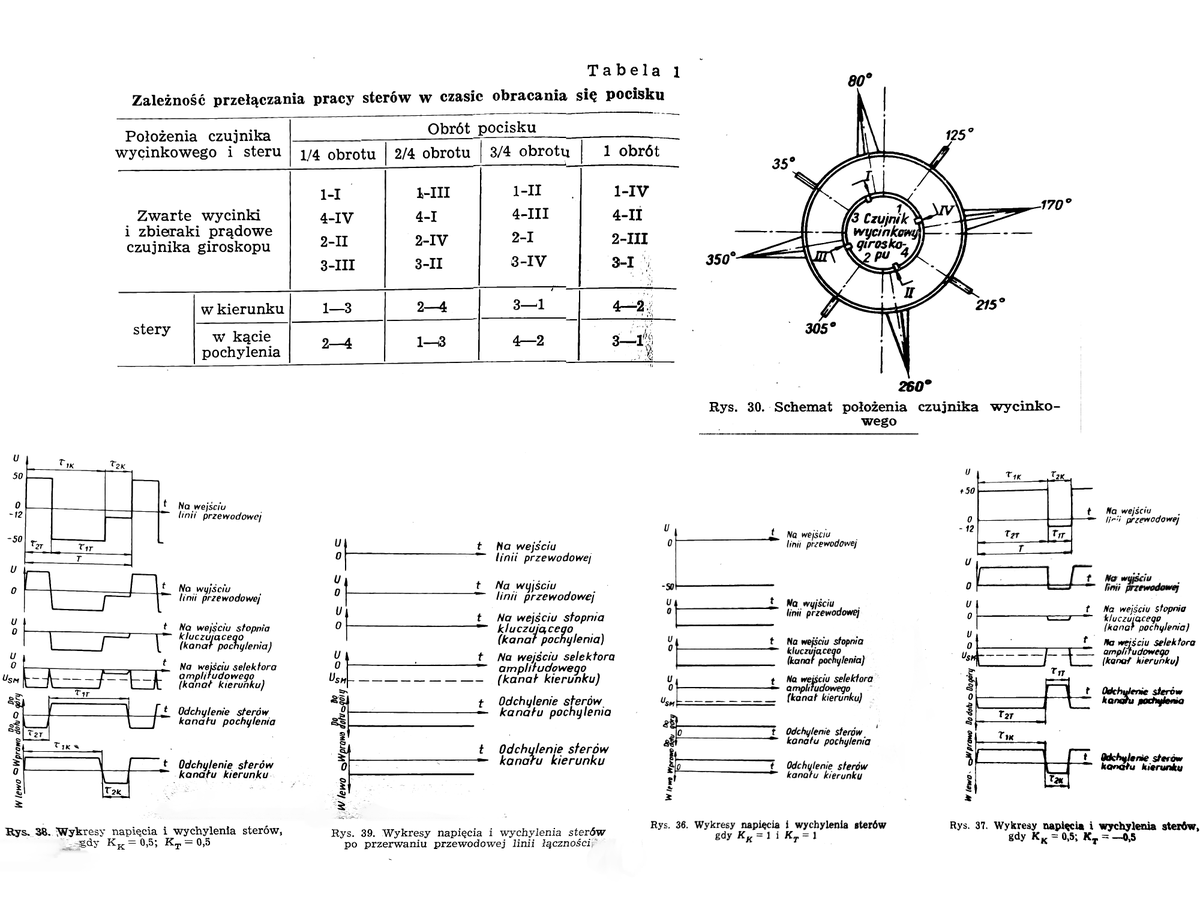

Final bunch of 9M111 anti-tank guided missile diagrams. Gyro commutator switching scheme, graphs of control voltages and control surface deflections in typical circumstances.

@baybal2 really that's all that's needed to make a simple SACLOS system, much of the complexity is in the launcher/guidance system and not the missile itself, and much of the rest is done electromechanically (gyroscope and commutator)

@Kubojd A guided missiles with close to no electronics

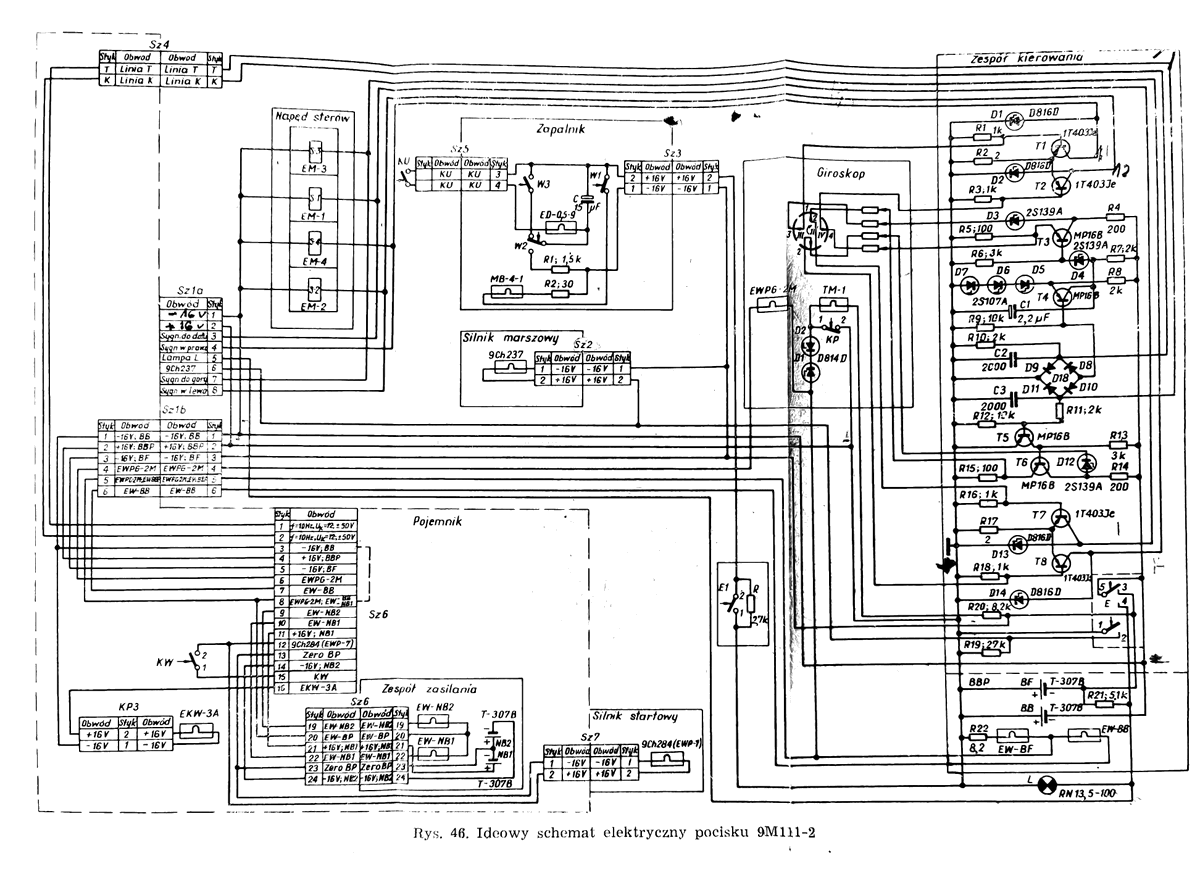

9M111-2 anti-tank guided missile, electrical schematic. (dashed section is the launch container, small section in bottom middle is the launch motor, the rest is the internal circuitry of the missile)

@karmelek96 it was the normal way to do it at the time even if it feels very archaic nowadays to do this electromechanically

@Kubojd Ah the classic gyro + commutator setup. Maintains a non-rotating reference frame just by rearranging the connection from the wires to the actuators.

9M111 anti-tank guided missile, functional diagram of onboard guidance scheme.

@karmelek96 @downlink14 co za przypadek

@downlink14 @Kubojd Nie wiem na ile to jest tłumaczone, ale w branży spotkałem się z tą nazwą tylko w Warszawie. Niewiem czy to kwestia pw czy tłumaczenia

@heatloss1986 Control surfaces are driven electromagnetically, with a separate electromagnet for each surface, impulse actuated and switching coils at about 10 Hz, using springs to return to neutral.

@Kubojd Rocker arms for the control surfaces similar to Sidewinder? Gas grain fed?

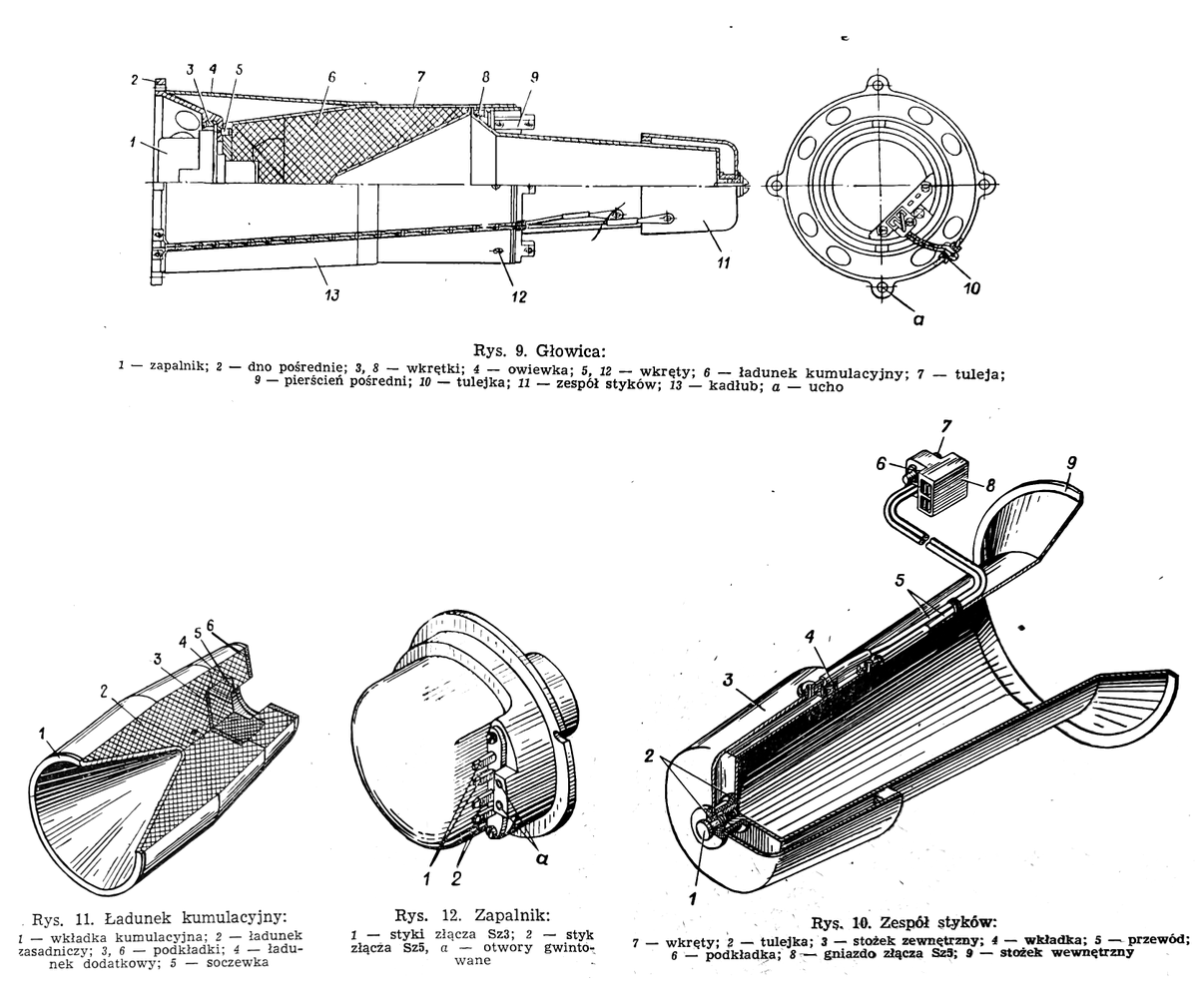

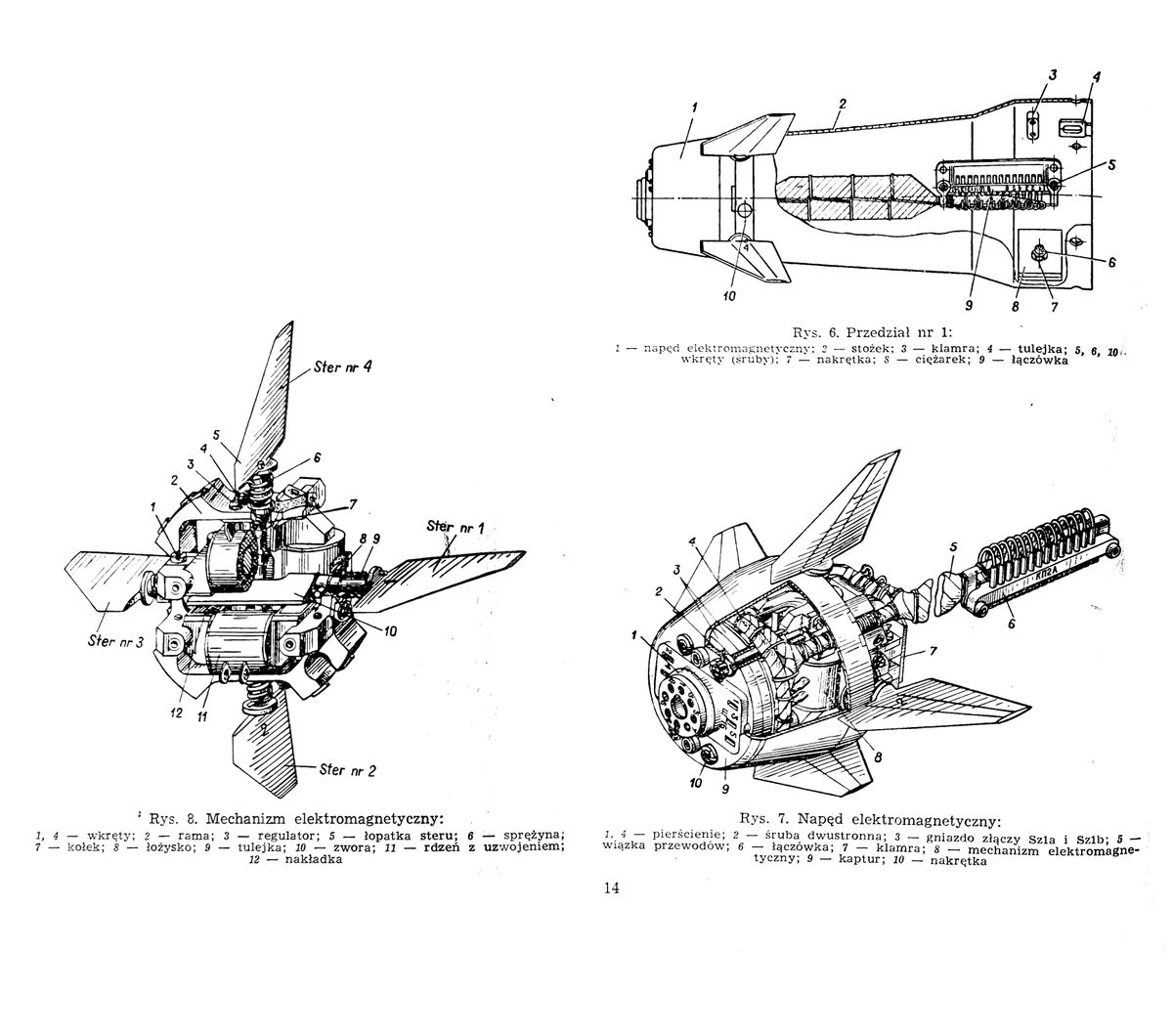

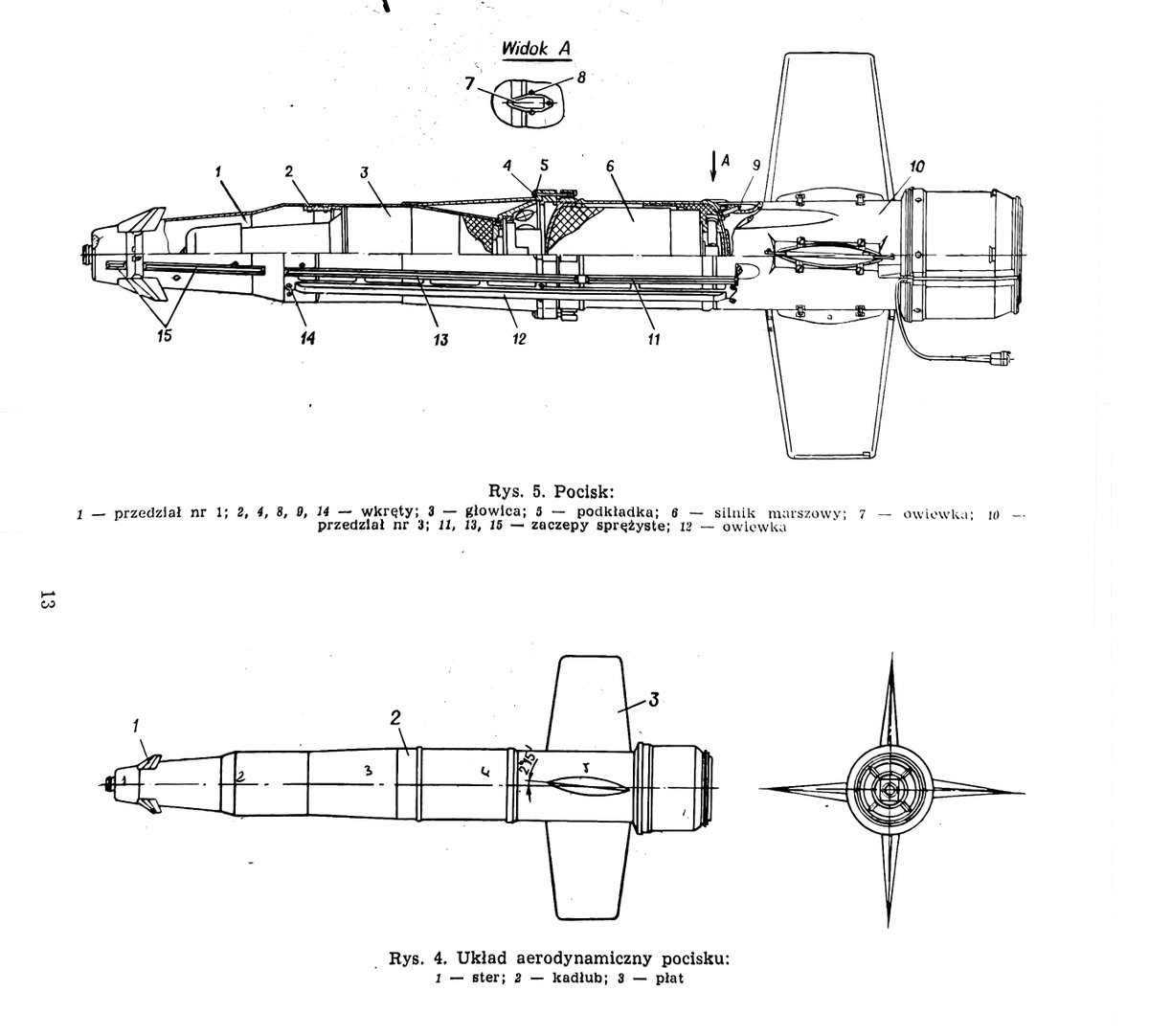

9M111-2 anti-tank guided missile, some diagrams of layout, control system and warhead.

Nixie tube display in a calculator from 1970 (a small thread about old calculators is coming)

@ani_obsessive Ahh, I never knew this was backlit! I spent a long time replicating that by hand by stacking layers upon layers of different colored low opacity sprays and colors. (recent example)

This style of light doesn't really appear in animation anymore. You know it when you see it -- it's bright, hot and almost dangerous. Our new issue explores the tricks behind it, and how one artist has revived the look for the digital age: ─➤animationobsessive.substack.com/p/dangerous-li…

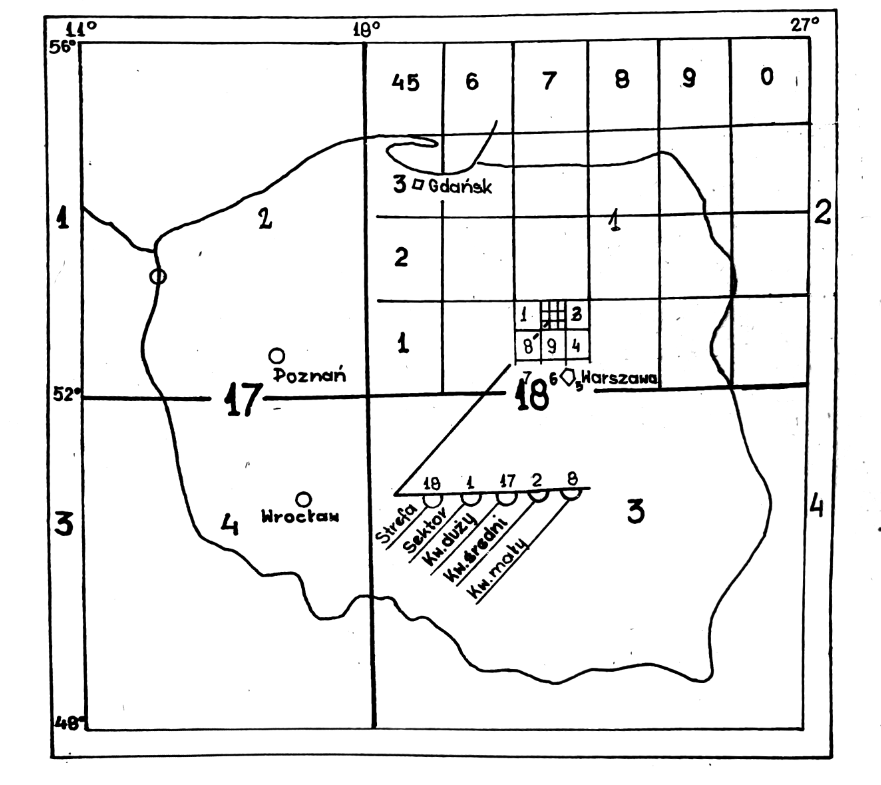

(3/3) Finally, a specific example - the location pointed at in the diagram would be Zone 18, Sector 1, Large square 17, medium square 2, small square 8 (which is equivalent to a roughly 15x15 km area)

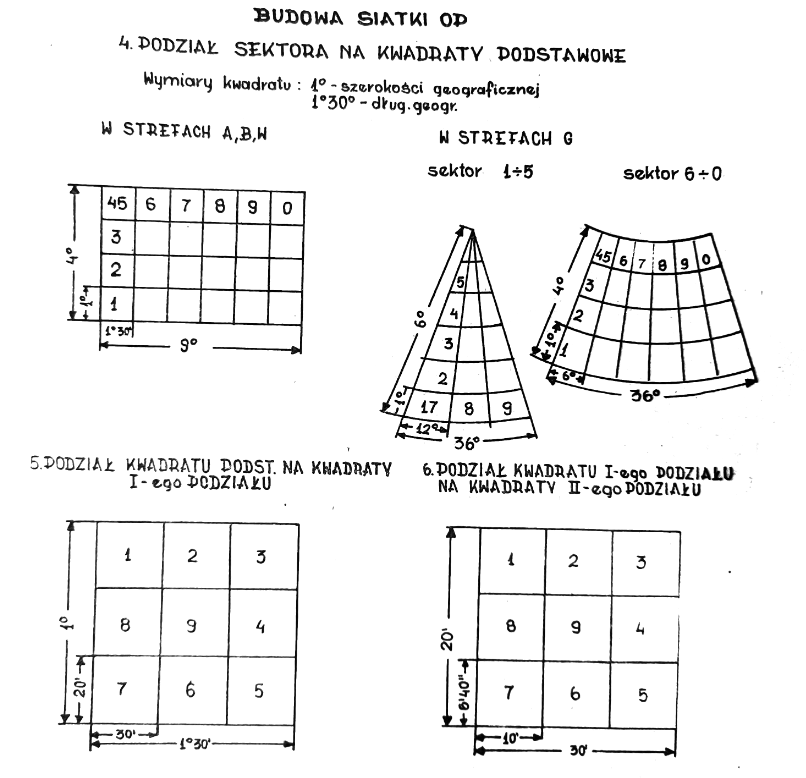

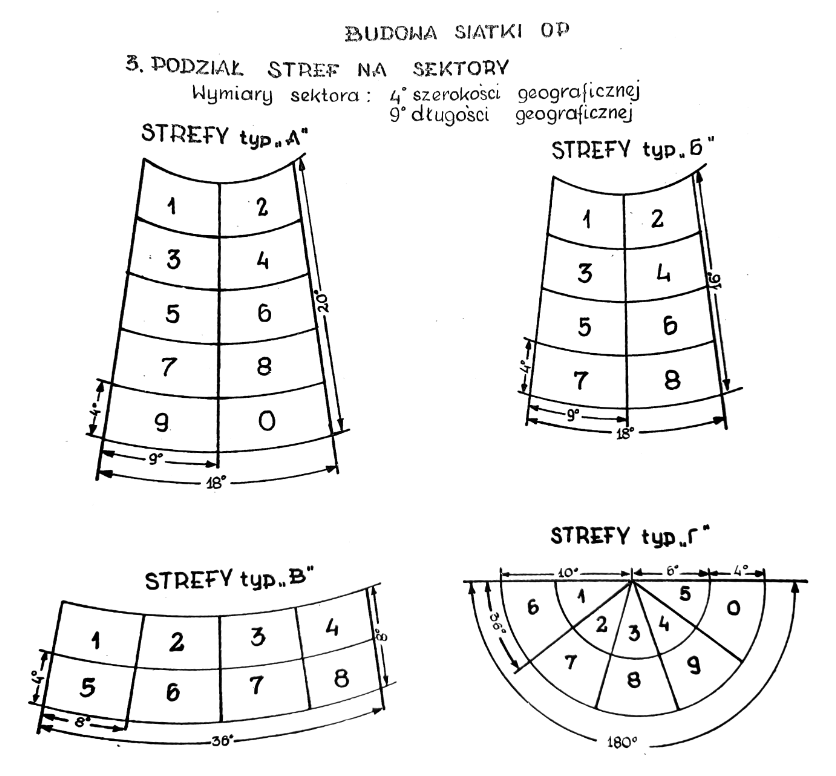

(2/3) 3. - zone subdivision into sectors (depending on zone type) 4. - sector subdivision into base squares (depending on zone type) 5. - base square subdivision into 1st level squares 6. 1st level squares subdivision into 2nd level squares

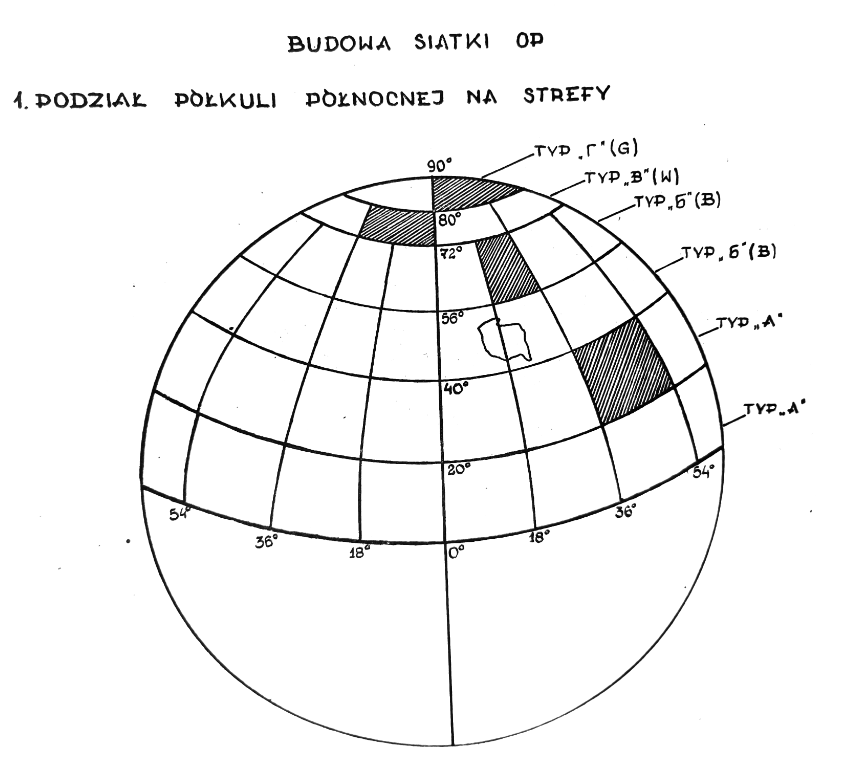

(1/3) Soviet Air Defense reference grid system (used by PVO and allied WP formations such as WOPK) 1. - subdivision of northern hemisphere into zones 2. - subdivision of northern hemisphere into zones - top view with numbering (note, there are several types of zones)
