Fully Silent PCs

@minomedj @FanlessTech @PopViolin One side cools the CPU, the other side cools the GPU!

@FanlessTech @PopViolin What about the gpu?!

Rate this fanless PC case from 1 to 10

@FanlessTech @MaratTanalin This is a part-time business for me, and I built this website myself with no web development experience. Not sure I would know how to improve it, but I appreciate the feedback.

@MaratTanalin @SilentPCs Hopefully Matt will read this ;)

Configure your own powerful fanless PC fullysilentpcs.com

Streacom DB1 Max Intel Core i5-12600K, 20.9 °C ambient, 75.3 °C maximum, PL1 and PL2 set to 65 W Asus Pro H610T D4 Kingston Fury Impact 2 x 16 GB 3200 MT/s CL 20 DDR4 SODIMM Kingston Fury Renegade 1 TB NVMe 1.4 100% Fanless patreon.com/posts/85453854

@Sweet_Baby_Jays @FanlessTech @Phanteks Yes, but there were a few X570 motherboards with fanless chipset heatsinks.

@FanlessTech @SilentPCs @Phanteks That entire gen of X570 boards with chipset fans must've been frustrating.

No fan

SilverStone Alta G1M Noctua NH-P1 Intel Core i9-12900, 17.1 °C ambient, 77.0 °C maximum, PL1 set to 100 W Asus Prime Z690M-Plus D4 Mushkin Redline 2 x 32 GB 3200 MT/s CL 16 DDR4 Kingston Fury Renegade 2 TB NVMe 1.4 × 2 100% Fanless patreon.com/posts/83465390

@Maxouille12 @ARCTIChannel Not sure, I haven't tested the S1 Plus.

@SilentPCs @ARCTIChannel is it the same mounting and everything as the Arctic Accelero S1 Plus ? bc ive the "plus" version not the rev.2

The 15 year old fanless @ARCTIChannel Accelero S1 fits on the new Intel Arc A380! No modifications necessary! #intelarc #a380 #arcticcooling

@PimpUigi @FanlessTech I use that same Asus sound card myself. It's too bad Zalman didn't continue the FX70. It outperforms even the NoFan CR-95C in my testing.

Streacom FC5 Alpha AMD Ryzen 5 7600X, 17.2 °C ambient, 67.1 °C maximum, PPT set to 50 W Asus ROG Strix B650E-E Gaming WiFi Kingston Server Premier ECC 2 x 8 GB 4800 MHz CL 40 DDR5 Kingston NV1 250 GB NVMe 1.3 100% Fanless NAS for 2U server rack shelf patreon.com/posts/170-stre…

@DruSypher @FanlessTech Feng Shui

@FanlessTech @SilentPCs Why is it outside on a picnic table?

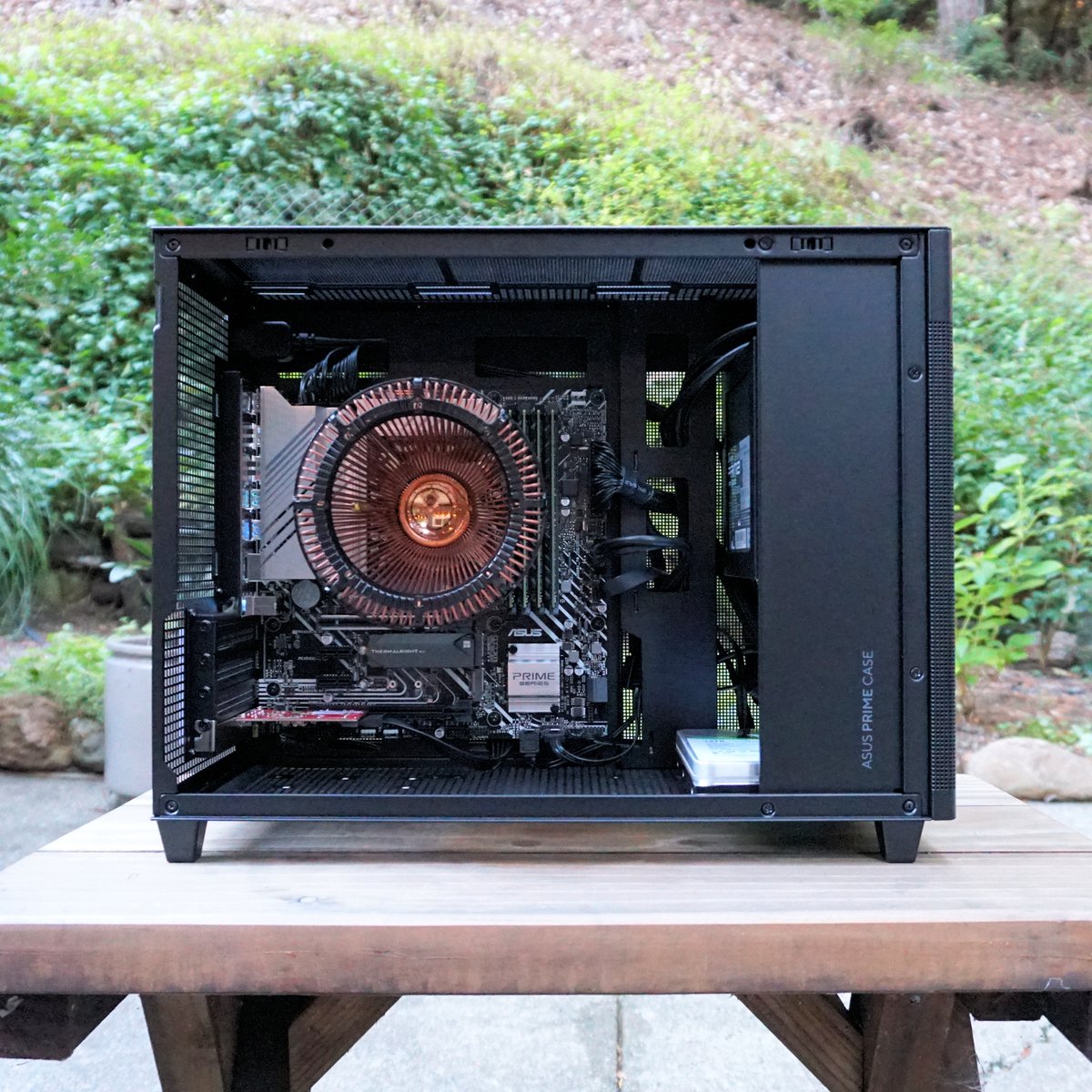

The ASUS Prime AP201 is compact PC case featuring an all-mesh design (57,000 holes) perfect for passive cooling fanlesstech.com/2023/04/asus-p…

@Arcana01Justice A case offers some protection.

@SilentPCs At that point you can just use an open-air test bench?

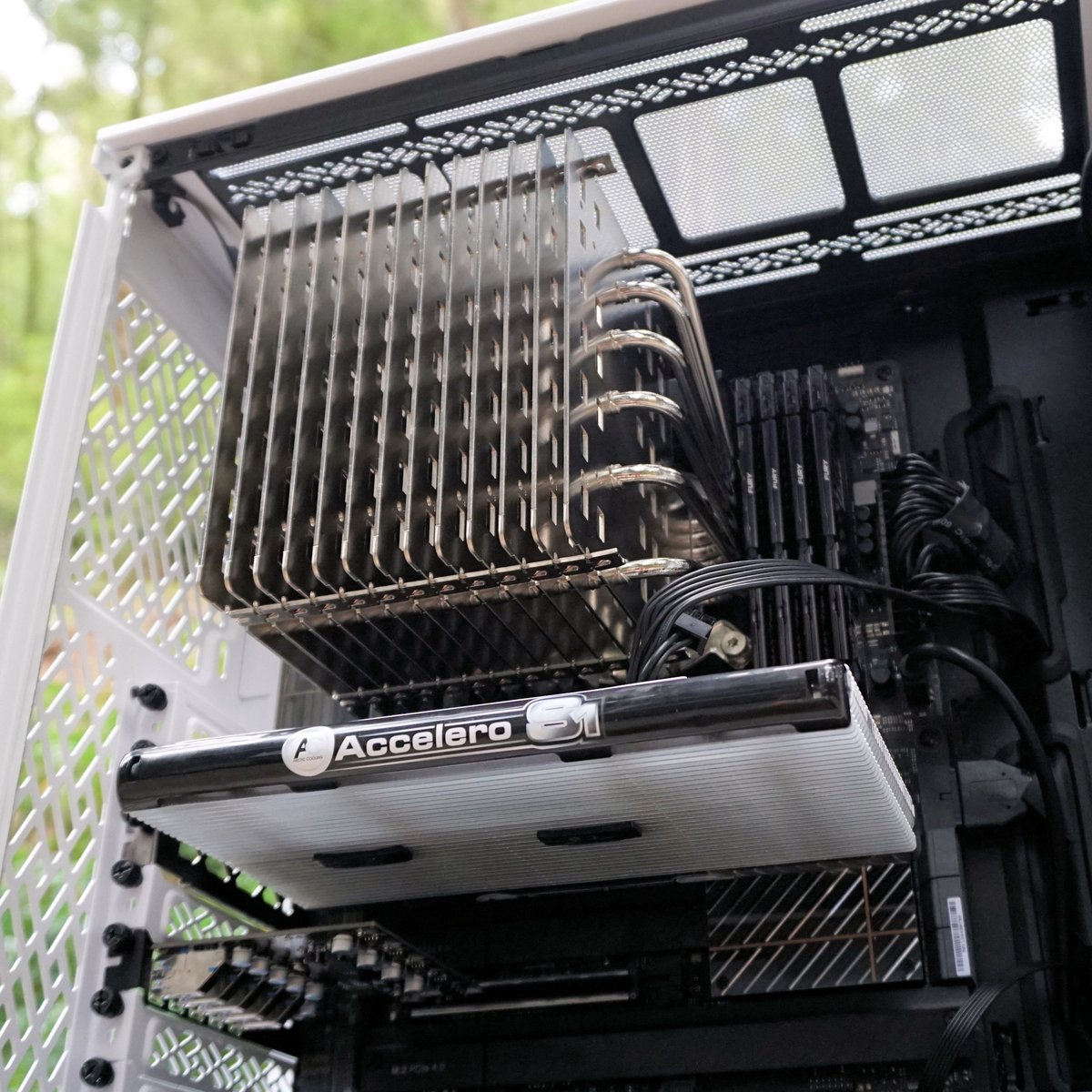

Fractal Design Meshify 2 Compact Noctua NH-P1 Arctic Accelero S1 Intel i9-13900K, 18.5 °C ambient, 89.3 °C maximum, 100 W PL1 set to 100 W, PL2 set to 200 W Nvidia GTX 1650 Super, 20.0 °C ambient, 76.9 °C maximum, 90 W Nvidia PL set to 90% 100% Fanless patreon.com/posts/169-frac…

Asus Prime AP201 NoFan CR-80EH Intel i9-12900T, 16.6 °C ambient, 81.5 °C maximum, 65 W Asus Prime Z690M-Plus D4 Mushkin Essentials 4 x 32 GB 3200 MHz CL 22 DDR4 Kingston Fury Renegade 1 TB NVMe 1.4 x 2 Seagate Exos X16 14 TB SATA x 2 100% Fanless patreon.com/posts/168-asus…

@taw_moto Yes, it was.

@SilentPCs I wonder if the CPU power is limited in bios

HDPlex H5 Intel i9-12900K, 21.5 °C ambient, 83.5 °C maximum, 100 W Nvidia RTX 3050, 22.6 °C ambient, 91.6 °C maximum, 115 W Asus ProArt Z690-Creator WiFi Kingston Fury Renegade 2 x 16 GB 6400 MHz DDR5 Kingston Fury Renegade 1 TB NVMe 1.4 100% Fanless patreon.com/posts/81249936

Streacom FC10 Alpha AMD Ryzen 7 5700G, 21.5 °C ambient, 79.7 °C maximum, 58 W Asus ProArt B550-Creator Mushkin Essentials 3200 MHz CL 22 2 × 16 GB DDR4 Mushkin Gamma 2 TB NVMe 1.4 100% Fanless patreon.com/posts/80809702

Turemetal UP2 Intel i5-12500, 20.1 °C ambient, 91.7 °C maximum, 50 W (limited in BIOS) Asus Pro H610T D4 Kingston Fury Impact 2 x 8 GB 3200 MHz CL 20 DDR4 SODIMM Kingston NV1 1 TB NVMe 1.3 100% fanless patreon.com/posts/80809116

@FanlessTech 4 cores/8 threads, and significantly better performance than an i7 from just 5 years ago. 👍

Unpopular opinion: i3s are nice little CPUs

@jerisbrisk If VRM heatsinks are at the top, the NH-D9 DX-4189 might work the best, otherwise, the NH-U14S DX-3647. Just remove the fans, and manually limit power if necessary, but they might handle 85 W without any issues.

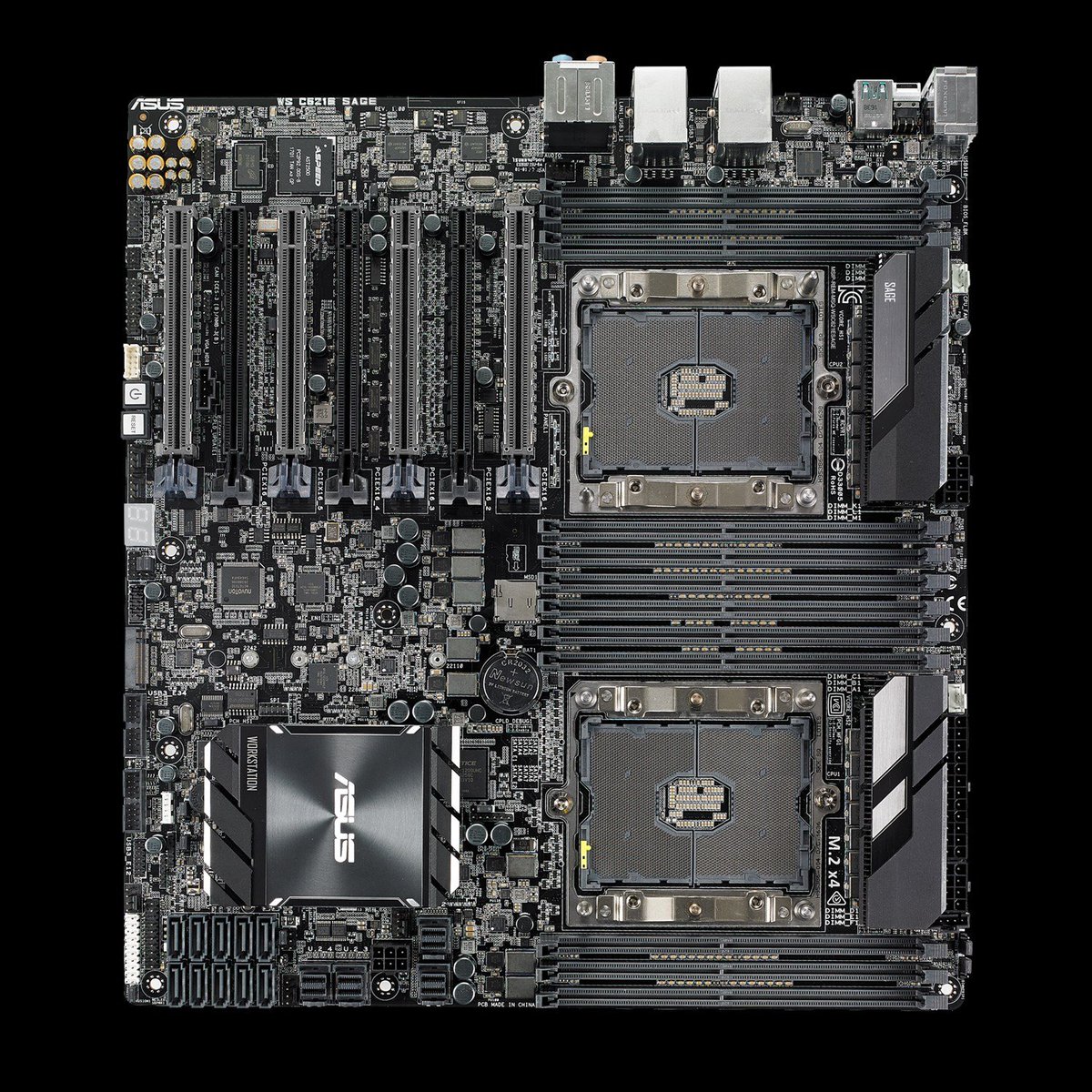

@SilentPCs I'm trying to find a passive cooling solution for a pair of Xeon® Silver 4210 CPUs (FCLGA3647, 85W TDP) in a WS C621E SAGE mobo. Got any suggestions?

@jerisbrisk Will the motherboard be mounted with the I/O to the back, and with the VRM heatsinks at the top?

@FanlessTech Zalman had a really good one with the FX70. Despite its thin fins it did great with only 530 g.

As promised, here's our dream fanless CPU cooler fanlesstech.com/2022/11/our-dr…
