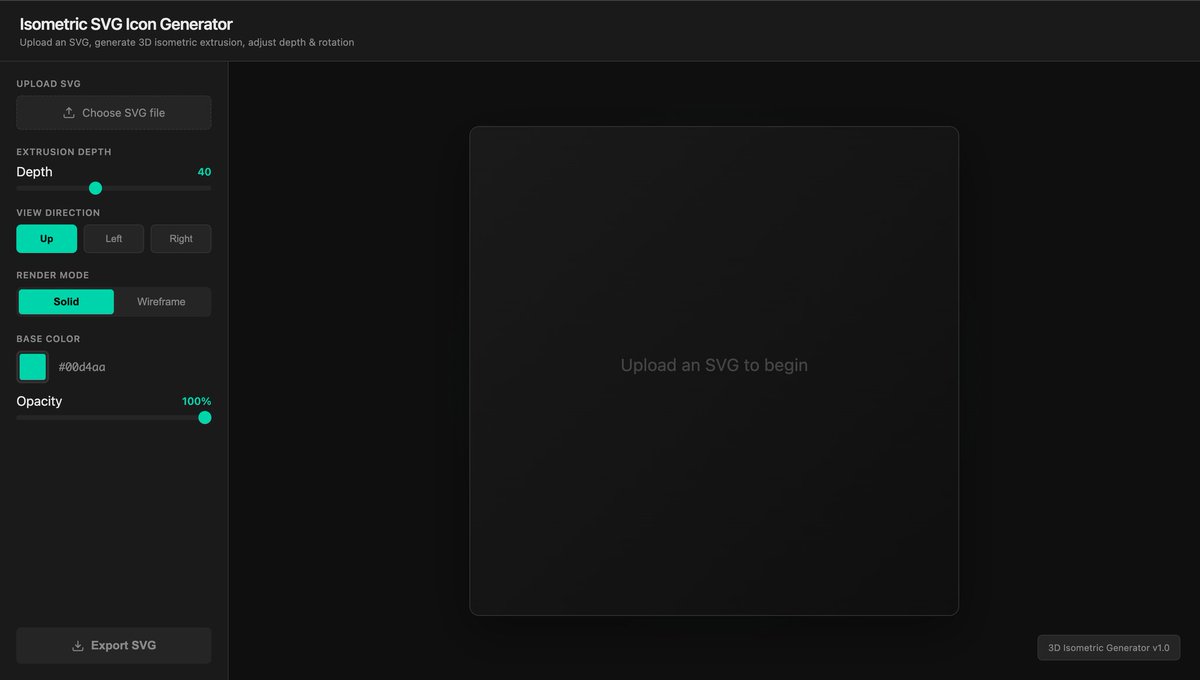

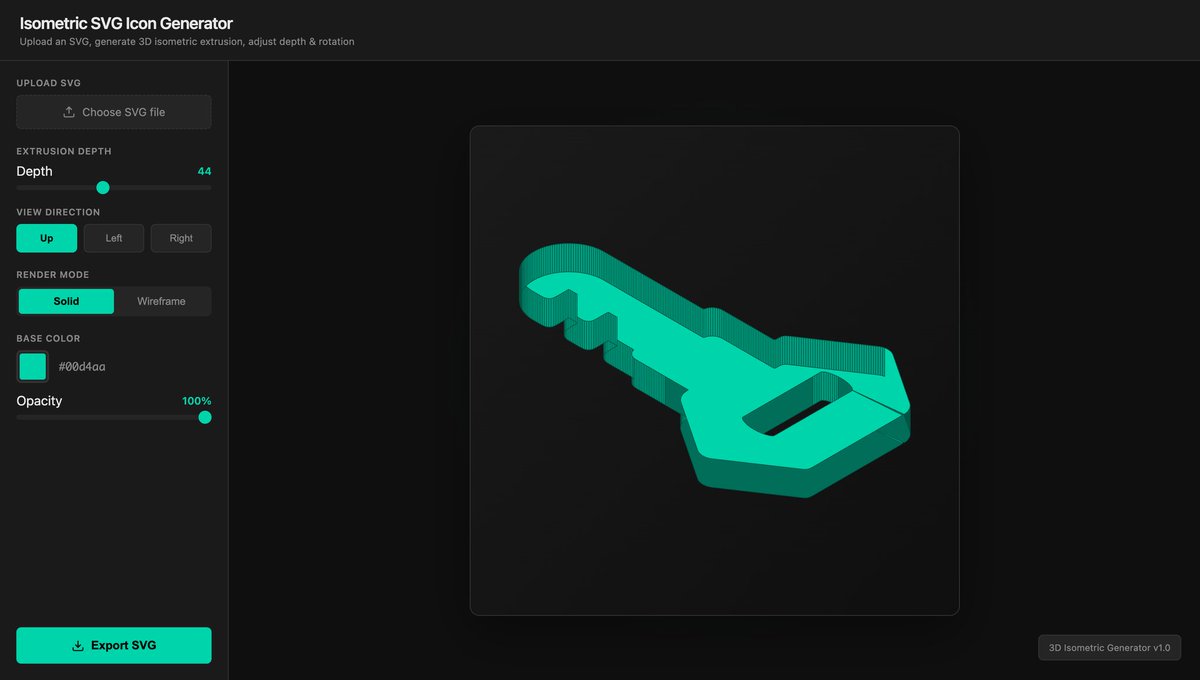

Subject: Build a Robust Interactive Isometric SVG Icon Generator (Single HTML File) Goal: Create a single self-contained HTML file (inline CSS/JS) that allows users to: - Upload an SVG (single-path icons) - Generate a 3D isometric extrusion - Adjust depth in real time - Rotate viewing direction (Up, Left, Right) - Toggle between solid and wireframe modes - Customize colors with automatic shading - Export the result as a clean SVG --- Core Architecture: 1. SVG Parsing - Use DOMParser to extract the first element. - If multiple paths exist, ignore others. - If parsing fails, show a visible error message. IMPORTANT: Do NOT rely solely on getPathData(). Instead: - Use getTotalLength() + getPointAtLength() - Sample the path evenly (~1 point every 2–4px of length) --- 2. Geometry Pipeline (STRICT ORDER) A. Sample Path → array of [x, y] B. Convert to 3D coordinates: - x → right axis - y → left axis - z → height (extrusion) C. Apply rotation (direction control): - Up: 0° - Left: +120° - Right: -120° - Rotate around Y-axis using a standard rotation matrix D. Apply isometric projection: screenX = (x - y) * cos(30°) screenY = (x + y) * sin(30°) - z --- 3. Extrusion For each point: - Top face: z = 0 - Bottom face: z = depth Generate: - Top face polygon - Bottom face polygon - Side faces (quads between consecutive points) --- 4. Depth Sorting (REQUIRED) Before rendering: - Compute average Y (screen space) per face - Sort faces back-to-front (painter’s algorithm) --- 5. Rendering - Render faces as elements inside a single SVG - Keep geometry separate from styling (important for mode switching) --- 6. Auto Layout After projection: - Compute bounding box of ALL points - Automatically: - Center geometry - Scale to fit SVG viewBox - Prevent clipping --- 7. Interactivity Controls: - File input - Depth slider (0–100) - Direction buttons (Up / Left / Right) - Rendering mode toggle (Solid / Wireframe) - Color picker (input type="color") - Download button Behavior: - Recompute geometry only when needed (file, depth, direction) - Re-render styles instantly (color, mode) - Keep updates smooth (debounce slider if needed) --- 8. Visual Modes & Color System A. Solid Mode (default) - Faces are filled - Top face uses base color - Side faces use shaded variations B. Wireframe Mode (See-through) - All faces: fill="none" - Only strokes are rendered - Stroke color = selected base color - Stroke width ~1–1.5px - Keep all faces visible as outlines Switching modes should NOT recompute geometry—only update styles. --- 9. Automatic Shading (Solid Mode) - Use the selected base color - Convert to HSL - Keep saturation constant Adjust lightness: - Top face → base lightness (L) - Light-facing side → L + 10% - Dark-facing side → L - 10% This creates a consistent 3D shading effect. --- 10. Stroke Handling - In Solid Mode: - Optional subtle stroke (slightly darker than fill) - In Wireframe Mode: - Stroke only - No fills at all --- 11. Export - Serialize the current SVG - Download as `.svg` - Ensure: - Proper viewBox - Standalone structure - No missing styles --- Constraints & Assumptions: - SVG contains a single closed path - No holes or complex boolean shapes - Curves approximated via sampling - Works in modern browsers (Chrome, Edge, Firefox) - If SVG uses stroke only, notify the user --- Optional Enhancement: - Add opacity control (0.1–1.0) for Solid Mode to allow semi-transparent rendering --- Deliverable: A complete working HTML file with clear comments explaining: - Path sampling - 3D transformation - Rotation - Projection - Face generation - Depth sorting - Rendering modes

THIS is Gemini

This is Claude
