@ibelings @SpaceStation22 Warning: do not back up. Severe tire damage.

@SpaceStation22 It was with 4 of them on the concrete and a large station on the other side. I think he's worked single dipole stations.

It's time to repeat the EME experiment using 16 antennas (4x4) vs previous (2x2). The linear arrays might be interesting for scanning the skies.

Feeder's Eye View.

@RobosproutLLC @oshpark @OSHStencils @hackaday @rheingoldheavy @tindie Manncorp MC400..

@SmallBatchA @oshpark @OSHStencils @hackaday @rheingoldheavy @tindie What machine are those running on? I have a Manncorp with some of them and I ended up hacking on Siemens feeders to expand since the Autotronik were expensive.

The next step to preparing a job for the pick and place is mounting the components onto feeders. @oshpark, @OSHStencils, @hackaday, @rheingoldheavy, @tindie Spot your stickers?

...After loading and mounting the components on the pick and place, the next step is training the machine vision and performing test picks. The machine is a @ManncorpInc MC-400

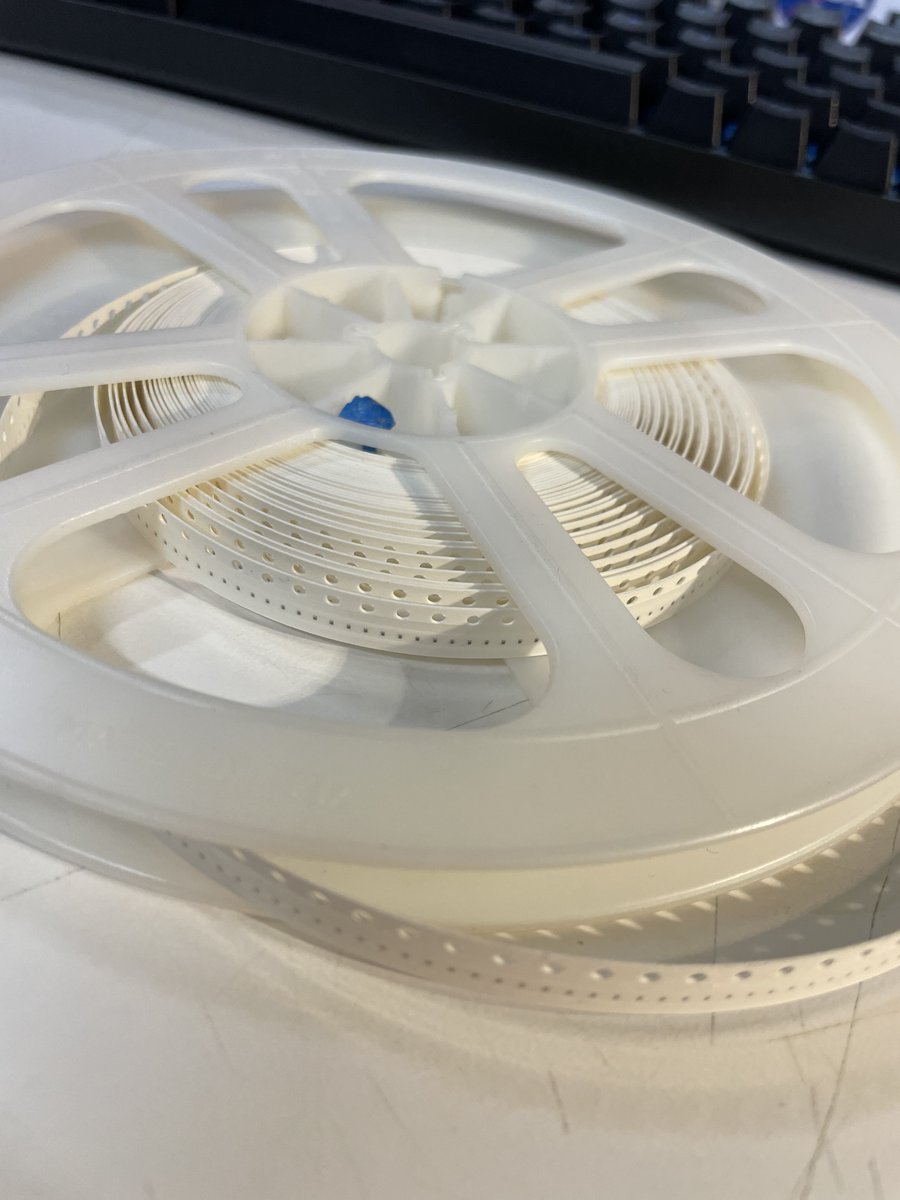

Pick and place machines eliminate some but not all labor. A good bit remains in setup. First step is parts check-in and leader splicing

Every year the average technician inhales between 10-20 0201s - don't let it be you! 😂

Not every part makes it onto the board (but we still think you're cool)!

@AlperenAkkuncu @lukebayes That one should have been caught during inspection

@lukebayes İt was 10 pieces but I have a range of errors. It was an assembly house in TR I'll share it in a tweet. Here is one of them. Lots of shorts everwhere.

Recently I had a really bad experience with an assembly house. Look at that alignment...

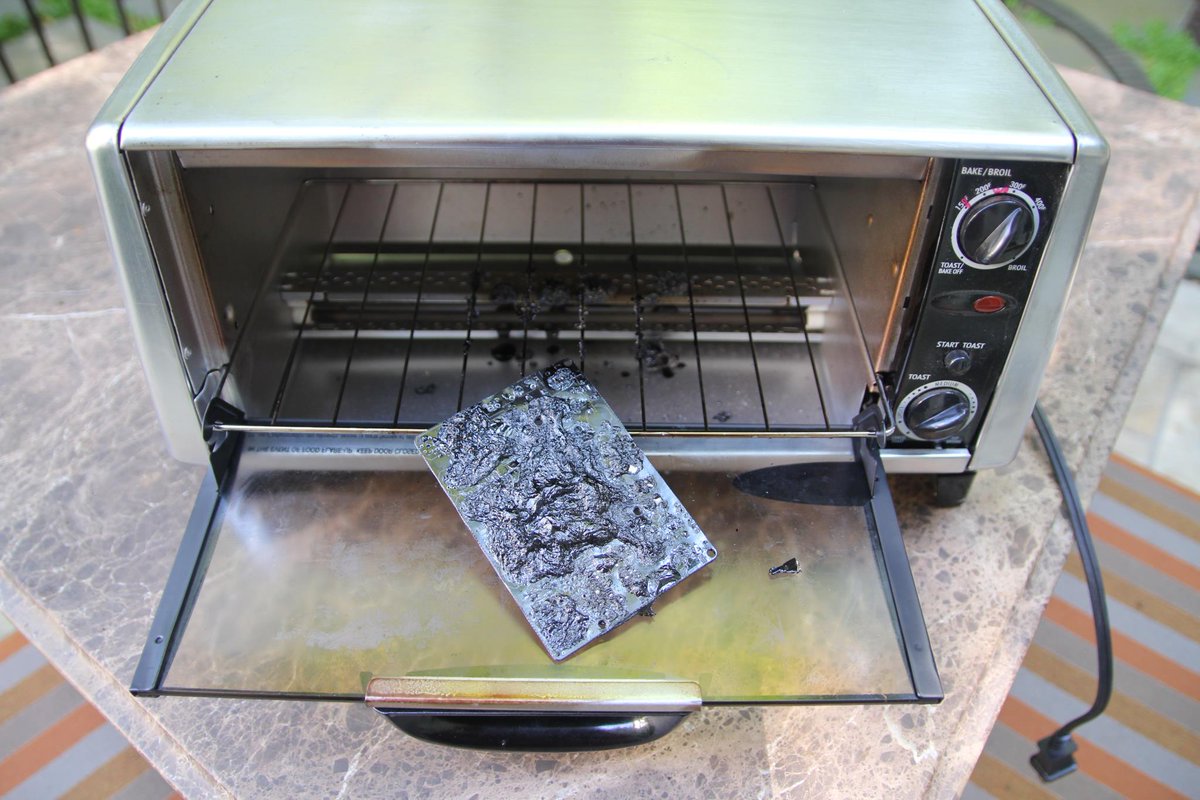

Epic toaster oven reflow fail

@philletourneau Probably north of 10k.. which is where I usually draw the line

@SmallBatchA Wow! How many placements is that??

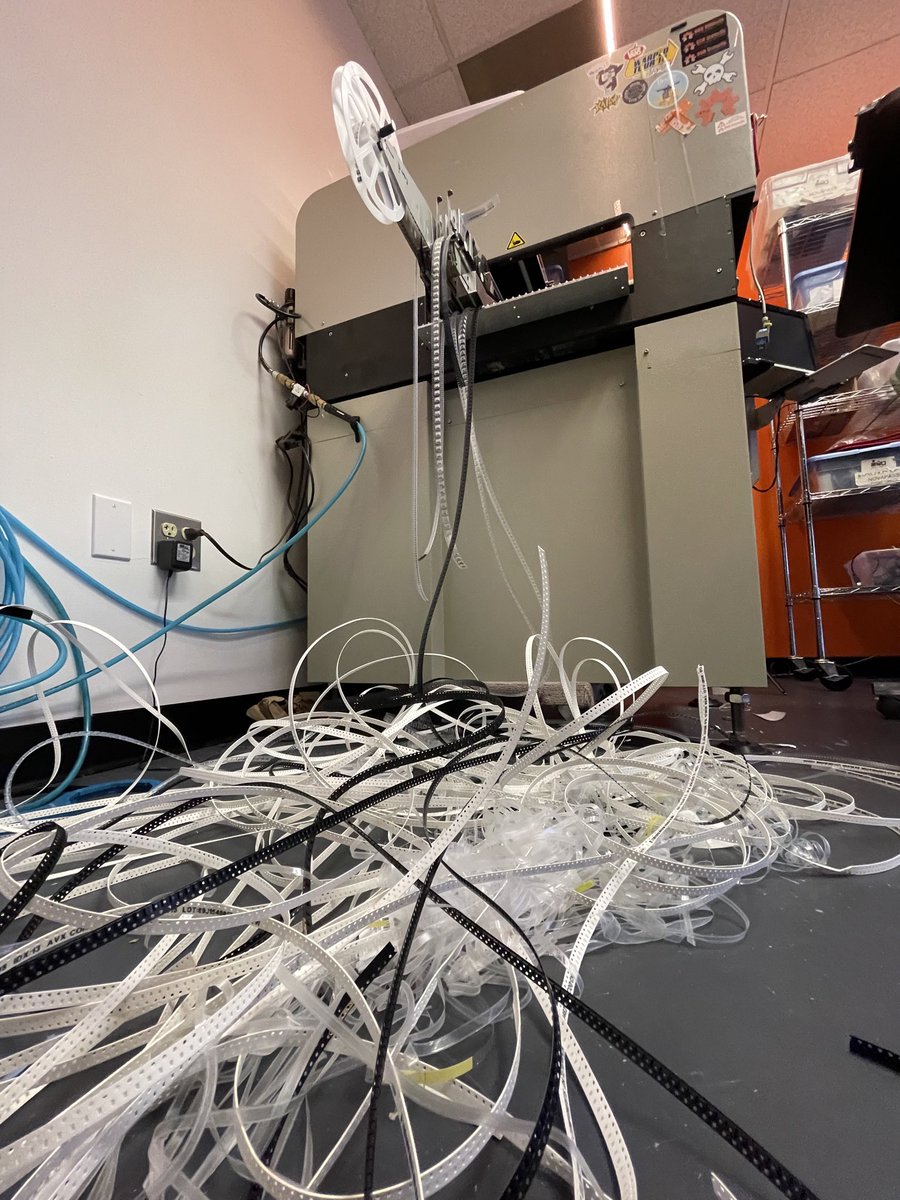

End of a not so small batch

@WeAreRSGroup Flux is still your friend even when you use 10x too much. But..

Now that is precise 🔥 Bios soldering 👏 twitter.com/visualfeastwan… #Soldering #BiosSoldering #Electronics #Innovation #Tech #Engineer #OddlySatisfying #Awesome #Satisfying

@dvdfreitag @sad_electronics @ElectronicsLcsc Yes. Onshape exports nice 2D drawings.

@sad_electronics @SmallBatchA @ElectronicsLcsc I usually just import the step file for the connector into onshape then draw the wires as splines and call out the wire specifications with the pinout in a table. For the pin 1 marking it's sometimes arbitrary but I'll mark them all

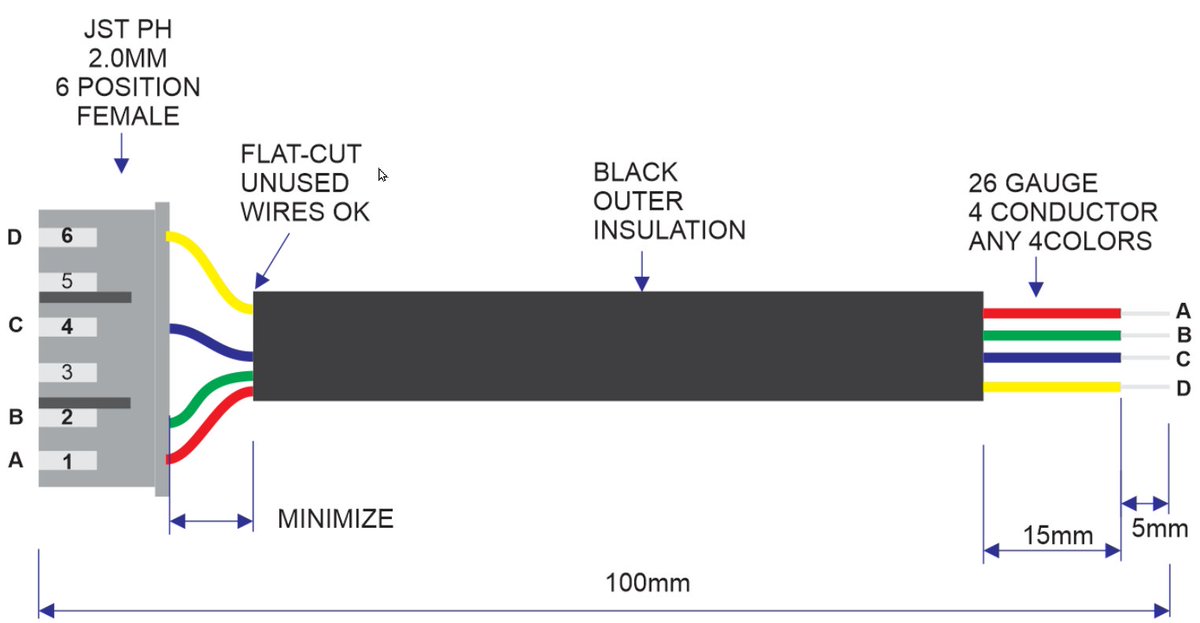

First experience with @ElectronicsLcsc custom cable fabrication was good. JST PH 2mm 6 pos tails. 125 pcs $0.64 each delivered.

@sad_electronics @ElectronicsLcsc What I sent them was far from a best-practice engineering drawing. There was a good bit of back and forth over email. They then responded with a proper drawing they could understand.

Go Speed Racer!

Final check of an RF design w/GerbV before sending to fab

Shields UP!

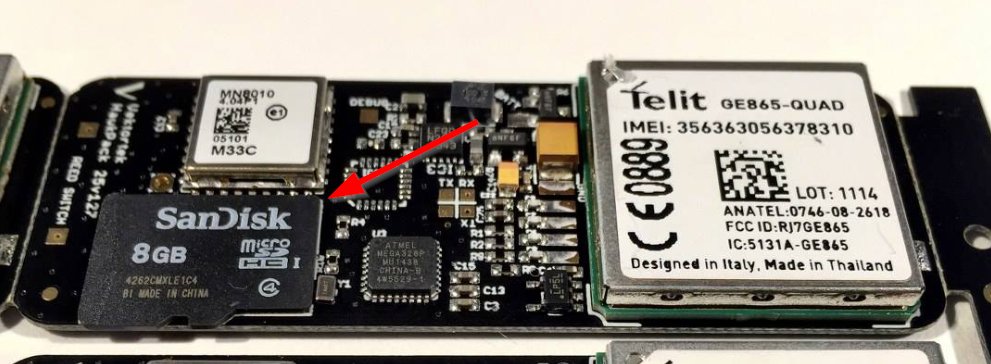

Sure you can solder SD cards straight onto PCBs.. But when is this prescriptive or necessary?
