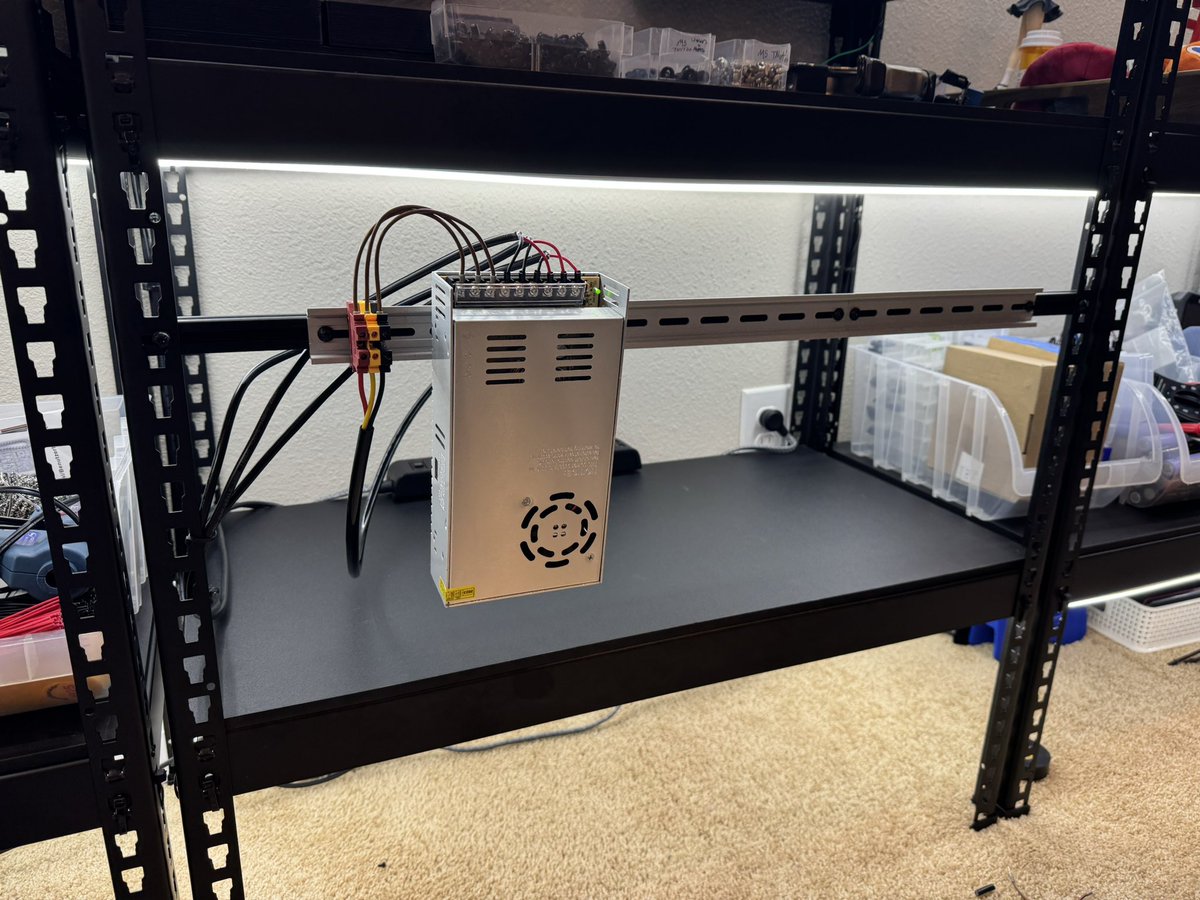

@fishPointer DIN rail is underrated.

yeahhhhh there we go

@MehdiHacks P1P is good value for the money. For a first printer I would suggest an A1 or A1 Mini. They maintain resale value surprisingly well. Sell it off once you have more experience and know specifically what you need from a higher-end printer.

Dear geeks, Which 3D printer should I buy as my first? Criteria: Price < $1k and available directly in EU. As quiet and clean as possible. Good software support. Speed or accuracy is not super critical for me. Is Bambu Lab P1P good?

@bznotes Getting two land-based connections with a router that can do failover is the key to reliability. Starlink is great for remote areas, but if you're in a city the landline options will usually be an order of magnitude faster.

Business internet/wifi for home office. What’s preferable? (feel free to dm as well)

@ProgramMax It’s also a flex process, so a rigid carrier or stiffener would be necessary. Hand-soldering PET substrates is also likely to be a disappointing experience due to the low heat tolerance. Going to look cool for applications where it can be put to use, though.

Very cool. Gotta abandon the ground plane. But when that isn't needed, heeeell yeah.

@kograt @JLCPCB It’s a standard 2-layer flex PCB process, so you get 2 copper layers with the translucent PET substrate in between.

@tomstokes @JLCPCB As soon as you will add insulation in between layers it's not going to be translucent.

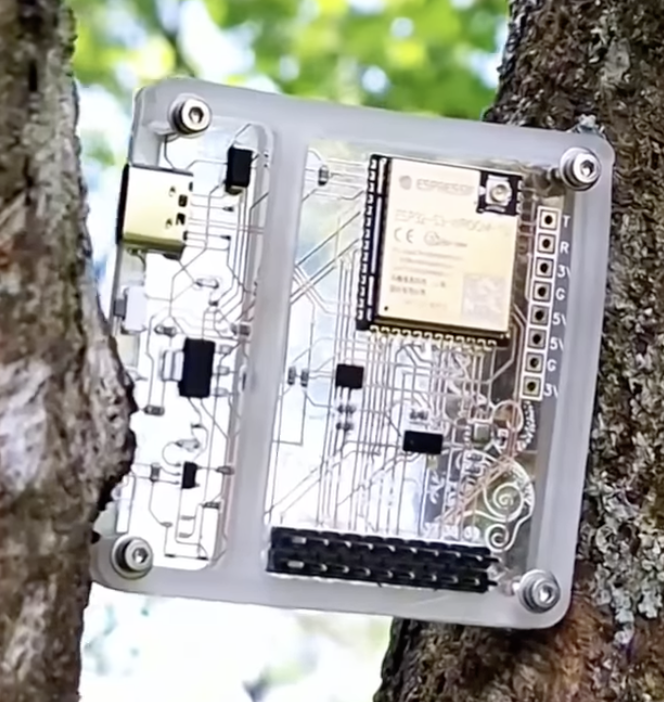

The new translucent flex PCB substrate from @JLCPCB looks amazing. I need to find an excuse to make a translucent PCB now.

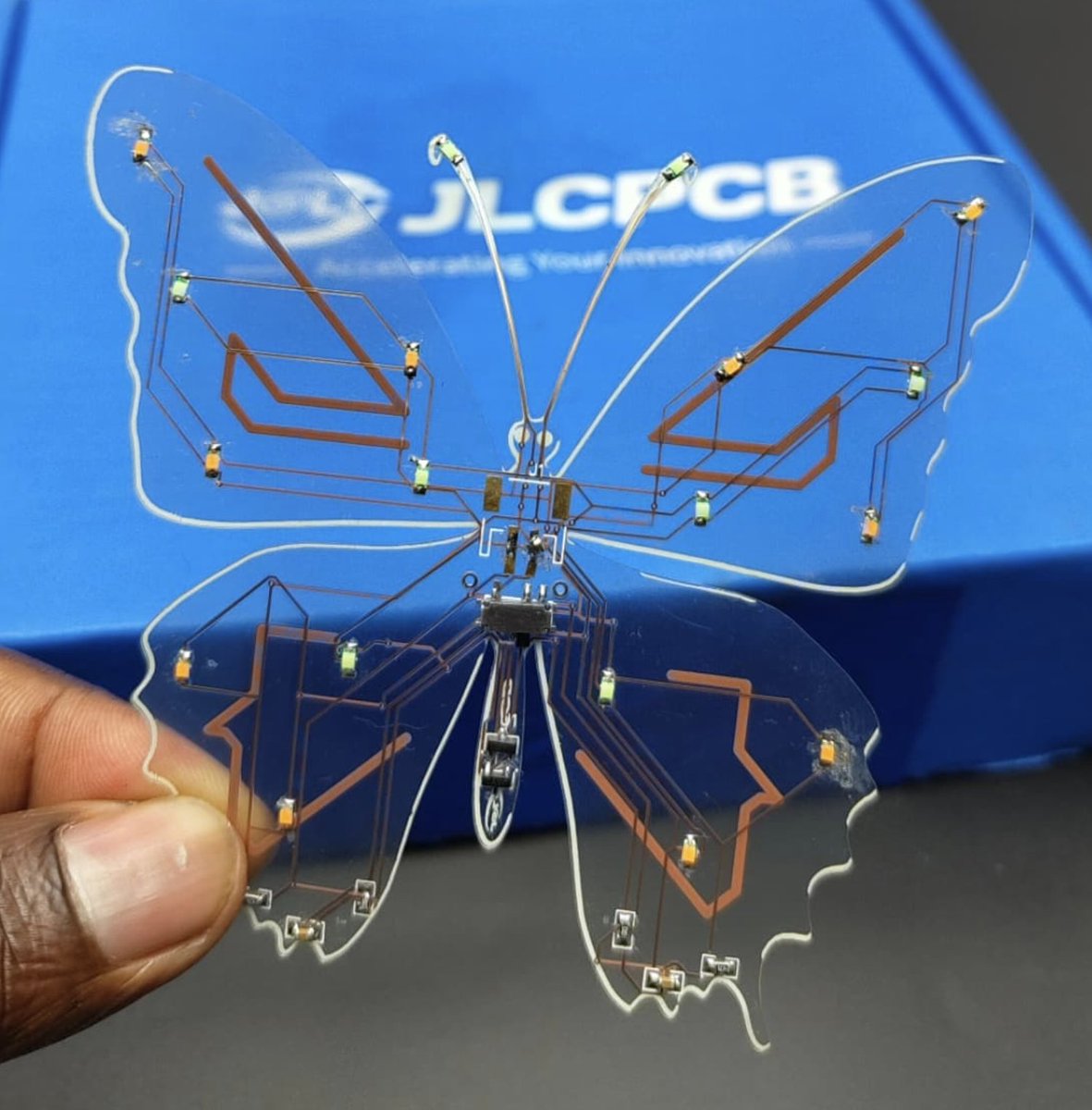

@r0b0t_sp1der @JLCPCB It is. It’s a PET flex PCB. The first image I posted was a marketing render (sorry) but the rest of the thread shows some more photos. They have some PCBs mounted on translucent plastic carriers which makes for a nice effect.

@tomstokes @JLCPCB It's just FPC, I think: jlcpcb.com/blog/jlcpcb-la…

@ns_schoe @QVHenkel @tomasmas @JLCPCB Oh definitely. I should have called it out when I posted it, sorry. They have a few other photos of the translucent flex boards including some customer projects

@QVHenkel @tomstokes @tomasmas @JLCPCB This *looks* AI to me : vias with incoming trace but no outgoing ones. Those two rows of “dots” that bright up. Can’t be LEDs. Seems like test pads or mounting holes but they glow xD

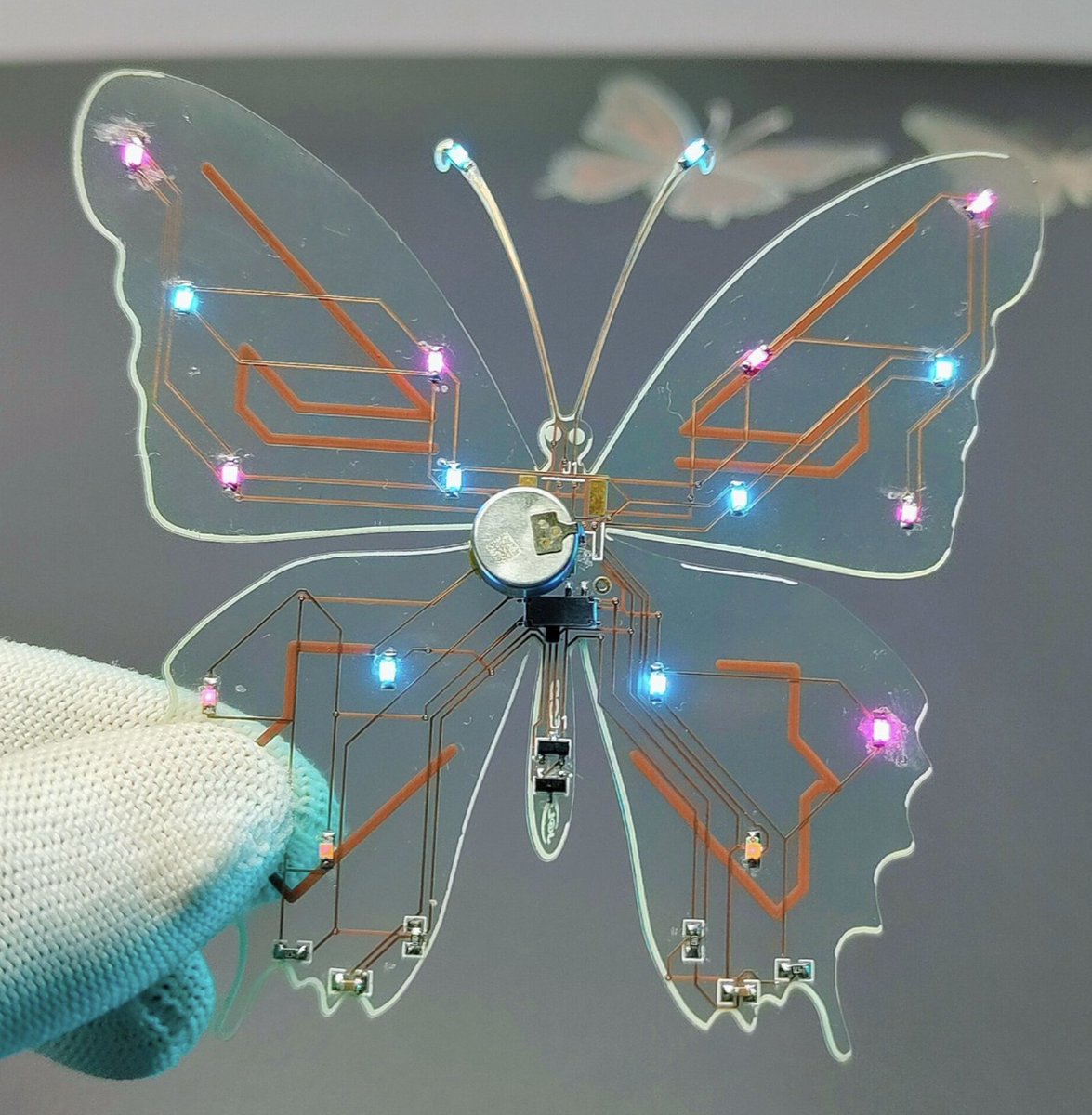

@QVHenkel @tomasmas @JLCPCB Yes, it's a standard PET flex PCB. I should have picked a better screenshot from their marketing video. They show real boards attached to rigid frames which is a nice effect. They show one butterfly-shaped board that might not have any stiffener, but they're holding it gently

@tomstokes @tomasmas @JLCPCB Nice! Are there some real pictures of transparent boards they've produced or only AI renderings? These kind of transparent flex boards have been around for a while but it would be cool to know how their product looks like

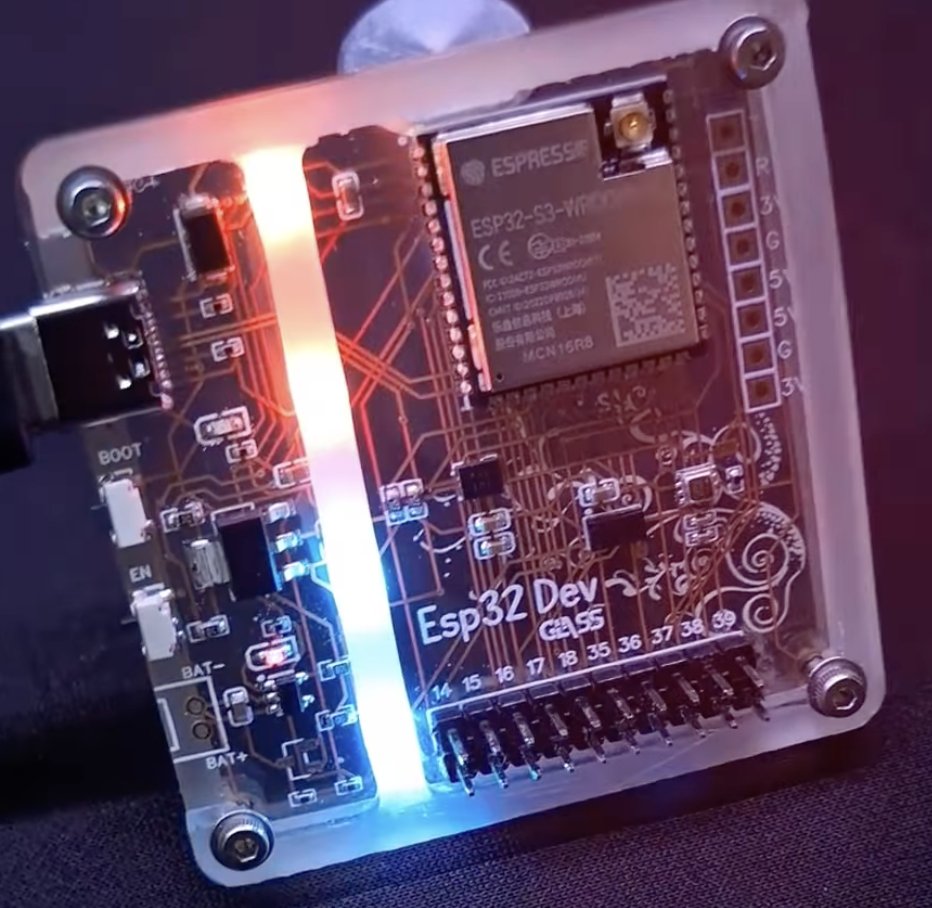

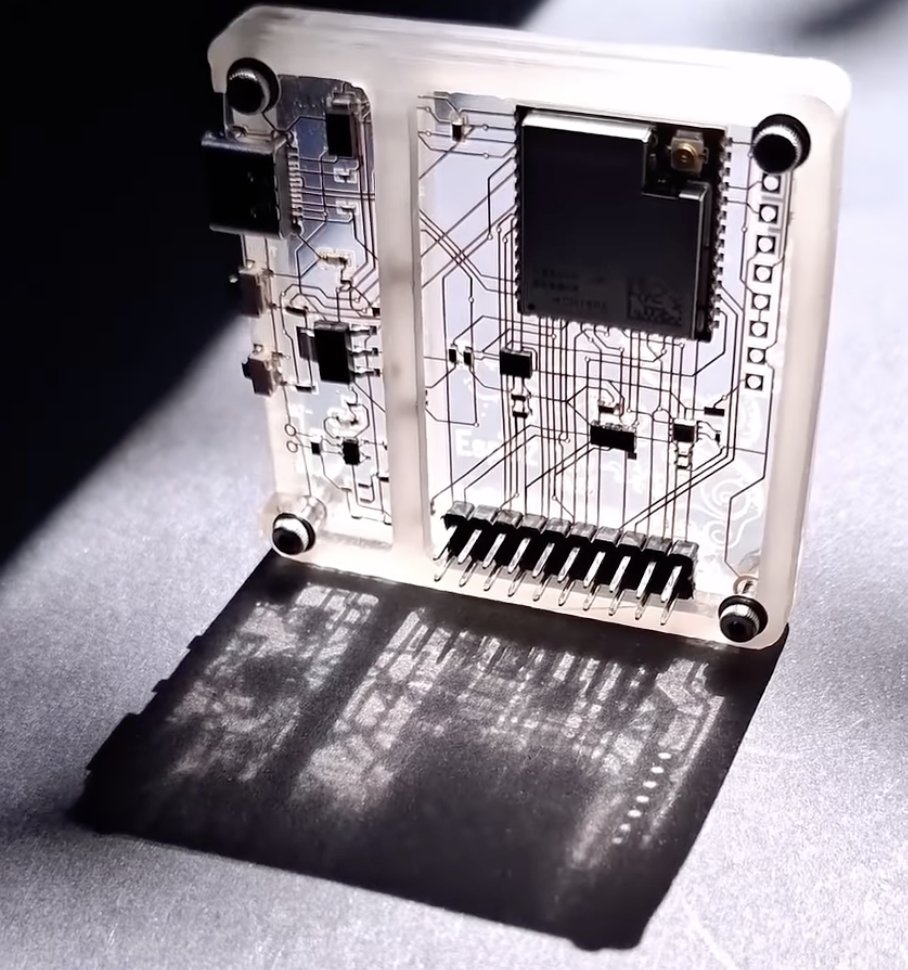

Some better images of real boards rather than marketing render above. These are PET substrate, which is a flex PC material. Note the use of the rigid frame to hold the example board.

@Yuyuko_boobs Transparent flex PCBs aren’t new. It’s been available from several companies, but it’s new to JLC. They have some limitations around soldering temperatures, among other things. More videos: instagram.com/reel/DLTrYB-q5…

If you believe this I’m genuinely sorry for you

@Beanmin_2 @JLCPCB They say PET. Usually PET doesn’t handle soldering temperatures well but they claim it’s SMT process compatible.

@tomstokes @JLCPCB what is the material?

@fishPointer The Engineer PAD-02 set is my preferred tool for most cases. Far better than the cheap tools, but not as expensive as the vendor specific gear. Includes different tool sizes for a range of connectors. engineertools-jp.com/product-page/p…

i need like the beginner's guide to getting cracked at crimping. what do i need to quickly and reliably make beautiful and perfect custom cables

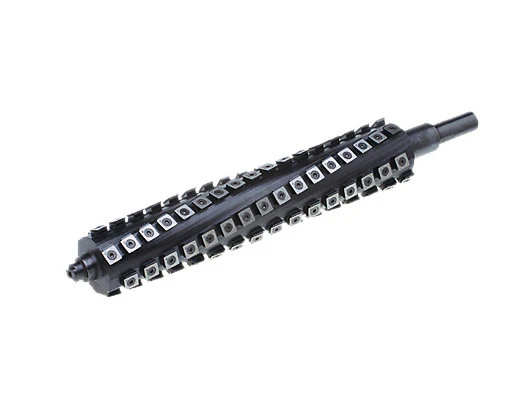

@kevin2kelly Looks like a carbide-insert cutterhead
