“Disagree and commit” doesn’t mean staying silent. Raise concerns. Define success metrics. Then execute with full ownership. Most engineers skip the last part. #SoftwareEngineering #EngineeringCulture #EngineeringProblems

Not every engineering disagreement needs escalation. Sometimes the best move is to observe, learn, and use it in the next design review. #softwareengineering #engineeringproblems #careergrowth

I made a full video breaking down each of these moves with exact words you can use on your next call. Built for engineers. Watch here : youtu.be/kMiu_3V37iw?si… #DecodedEngineer #engineeringproblems #softwareengineering

60) A rectangular object has: Left side = 350 mm Right side = 80 mm Vertical height = 250 mm The object is inclined at 30°. Draw its isometric view. #EngineeringStudents #EngineeringProblems

58) A circle of 50 mm diameter is resting on HP at one end (A) of its diameter AC. The diameter AC is inclined at 30° to HP, and the top view of the circle is inclined at 45° to VP. Draw the projections of the circle. #EngineeringProblems #EngineeringDrawing

55) Section of Solids A right circular cone, base diameter 60 mm and axis 80 mm, rests on HP. It is cut by a plane 45° to HP and ⟂ VP, intersecting the axis 40 mm above the base. Draw: Front View Sectional Top View True Shape of Section #EngineeringStudents #EngineeringProblems

How often do you see redesigns caused by bad or missing data? 👇 Drop a number or story—we’ve all experienced it. #EngineeringProblems #Areli

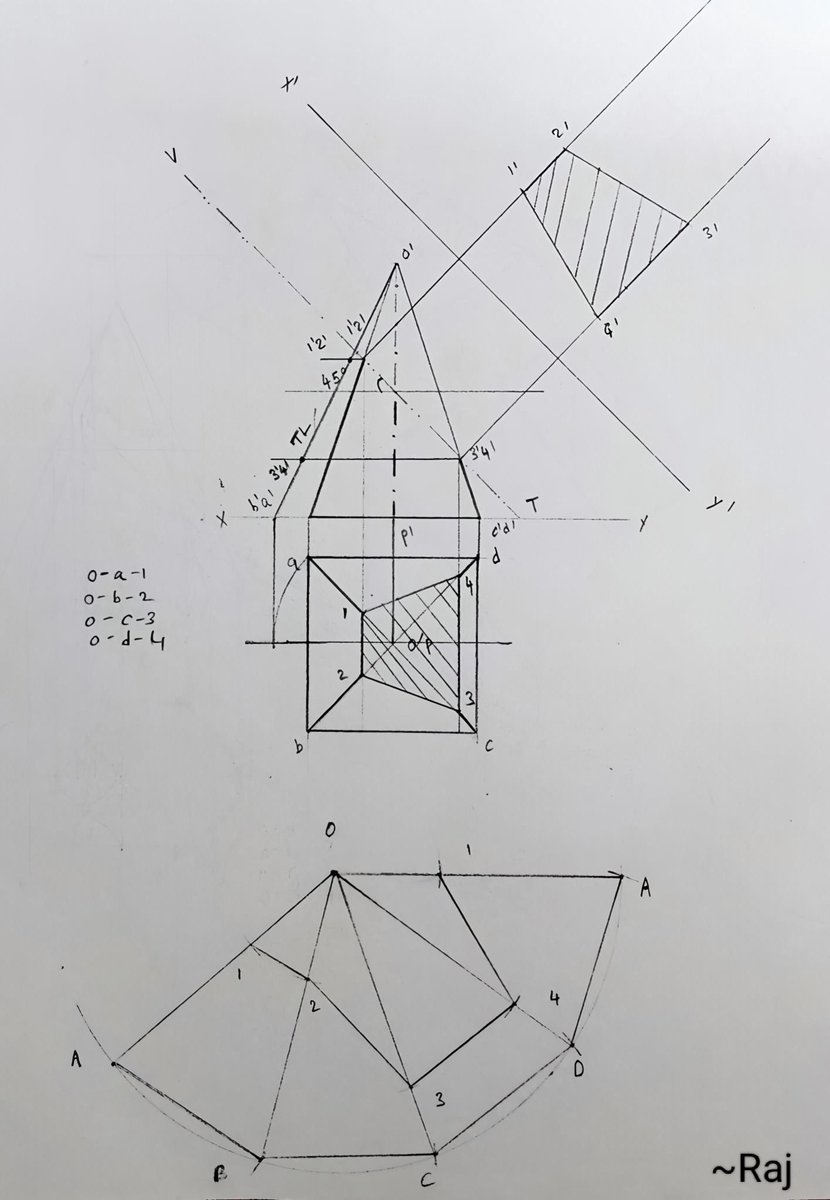

53) A square pyramid, base 40 mm and axis 60 mm, rests on HP with one base edge parallel to VP. It is cut by a plane ⟂ VP and 45° to HP, bisecting the axis. Draw: Sectional TV, True Shape of Section & Development of Lateral Surface #EngineeringProblems #EngineeringDrawing

Ah yes… a ±0.0001 tolerance on a flathead slot 📏 Over-tolerancing is one of the fastest ways to drive up cost and slow down production. #EngineeringProblems #ManufacturingLife #CNCMachining #DesignForManufacturing

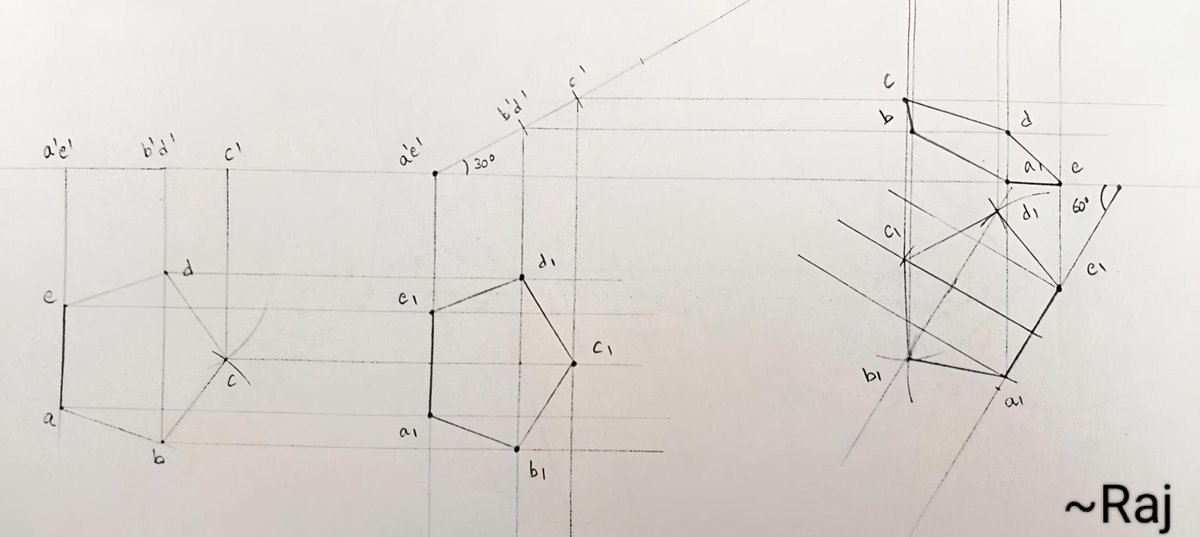

50) Projection of Plane A pentagonal plate, side 25 mm, rests on one of its edges on HP. That edge makes 30° with HP and the plane is inclined 60° to VP. Draw the projections of the plane. #EngineeringStudents #EngineeringProblems

😂⚙️ Is this a BUS topology or just pure luck? Looking at this mess is enough to give any Engineer a massive headache. 🧠💥👀 #cablemanagement #engineeringproblems #telecom #utilitypole

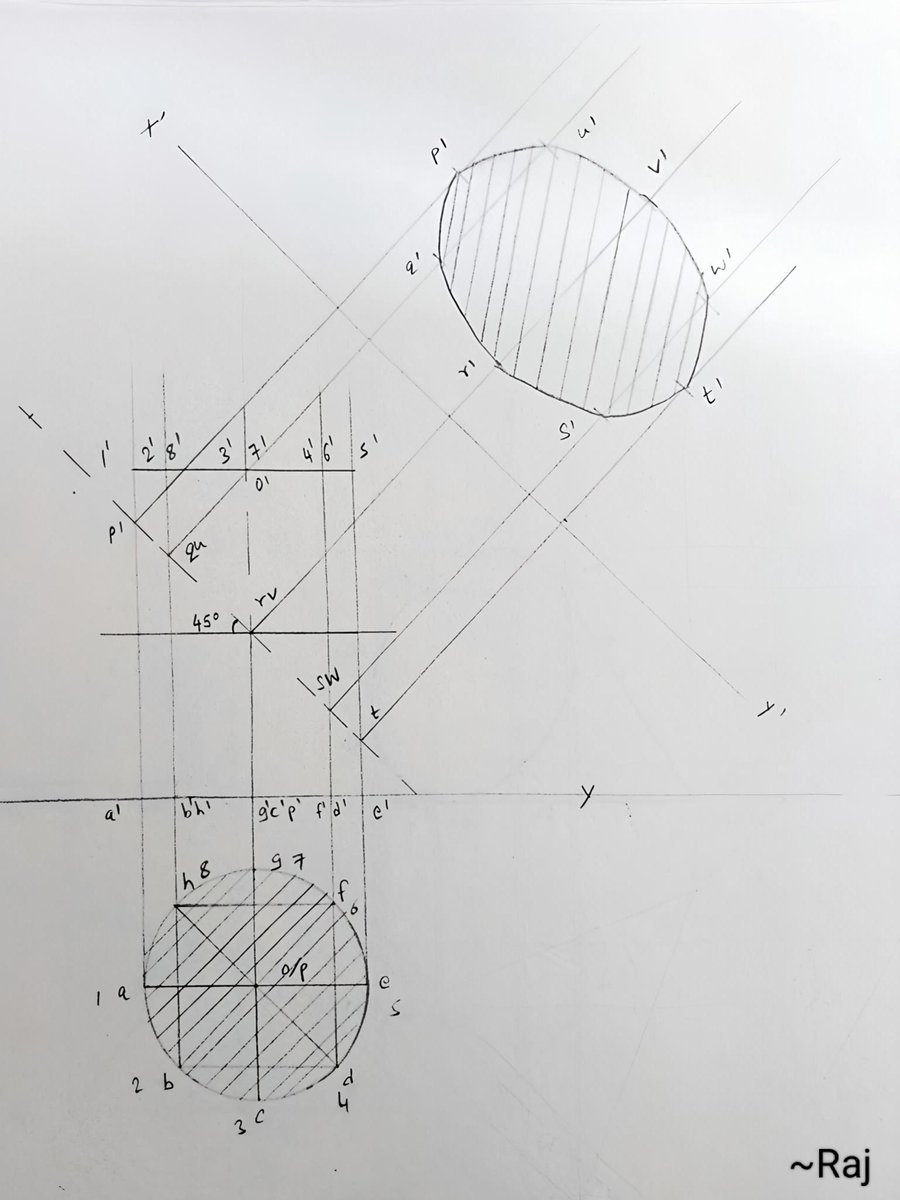

48) Section of Solids A cylinder, 40 mm diameter and 60 mm height, stands on HP with its axis vertical. It is cut by a plane ⊥ VP and 45° to HP, intersecting the axis 30 mm above the base. Draw FV, sectional TV and true shape of section. #EngineeringProblems #EngineeringDrawing

Engineers: What’s the biggest challenge in your valve systems right now? • Leaks • Maintenance downtime • Material compatibility • Pressure issues • Something else? Drop it in the comments — curious what you’re seeing in the field. #EngineeringProblems #Valves

45) Projection of Solids A square prism, base side 30 mm, when projected forms a cylinder of 60 mm diameter above the reference plane. The axis is inclined 30° to HP and 30° to VP. Draw the projections of the solid. #EngineeringStudents #EngineeringProblems

tomorrow's problems start with tomorrow morning first step: caffeinated chaos #engineeringproblems

How often do you see redesigns caused by bad or missing data? 👇 Drop a number or story—we’ve all experienced it. #EngineeringProblems #Areli

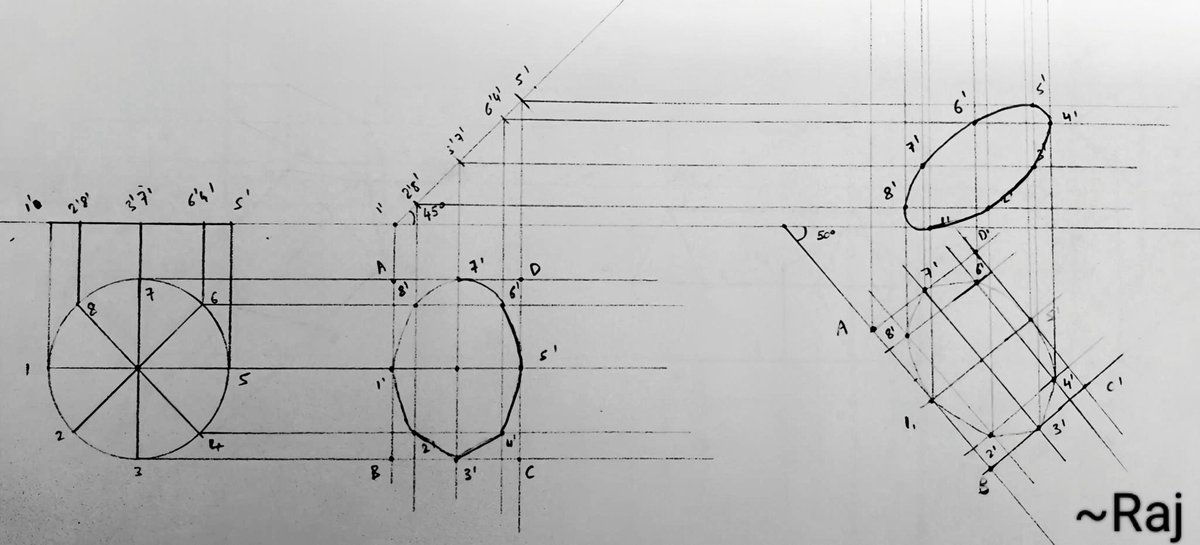

43) Projection of Plane A circle of 50 mm diameter rests on HP at a point on its circumference. Its plane is inclined 45° to HP and 50° to VP. Draw the projections of the circle. #EngineeringProblems #EngineeringDrawing

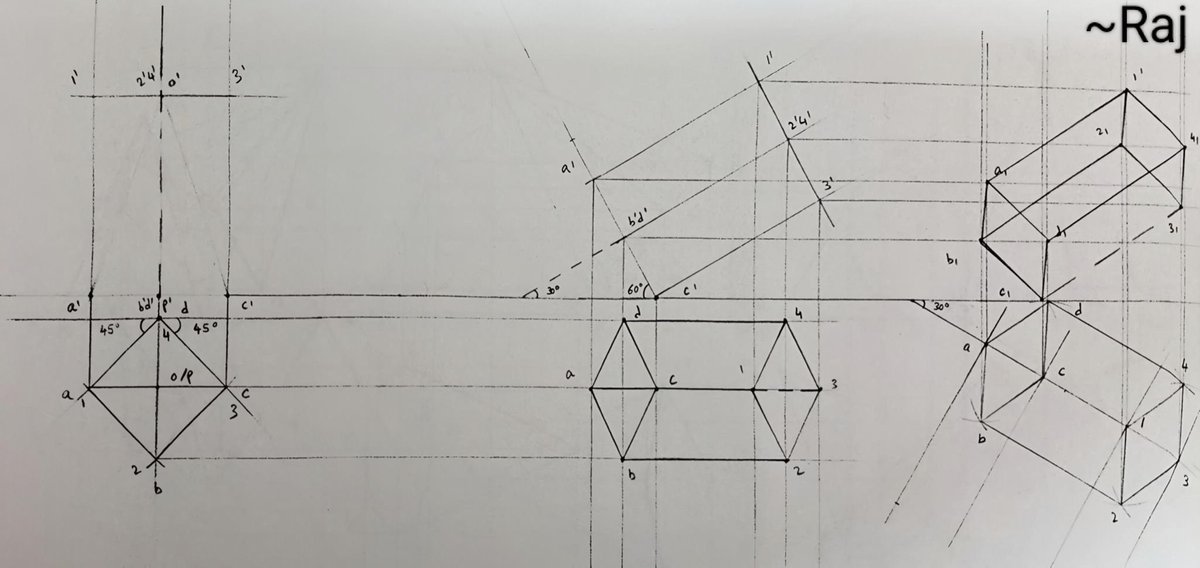

40) Projection of Solids A hexagonal prism Base side – 30 mm Height – 70 mm Axis inclined 30° to HP. Two opposite rectangular faces ⊥ HP and 45° to VP. Draw the required projections. #EngineeringStudents #EngineeringProblems

What’s the one engineering problem that slows you down every single time? Calculations, debugging, design decisions, or something else? Let’s talk about it👇 ,you might not be the only one facing it. #EngineeringProblems #EngiChat #BuildInPublic #EngineeringLife #EngineeringAI

38) Projection of Solids A square prism is placed below XY. Above XY its projections form a 60 mm rectangle. The rectangle is then inclined at 50° and projected downward to obtain the final solid. Draw the required projections. #EngineeringProblems #EngineeringDrawing
