Bill
Bill@Torment1979·
@zaxour hi I’m having an issue with my pow block. I get video and audio out on the standard composite ports. But I get nothing out of my 10-pin. I don’t have any video mods installed. I have the pow audio jumped. Do I need to jump #3 pounds-cvbs?
English
1
0
0
5
Lonely Gamer
Lonely Gamer@LonelyGamerVibe·

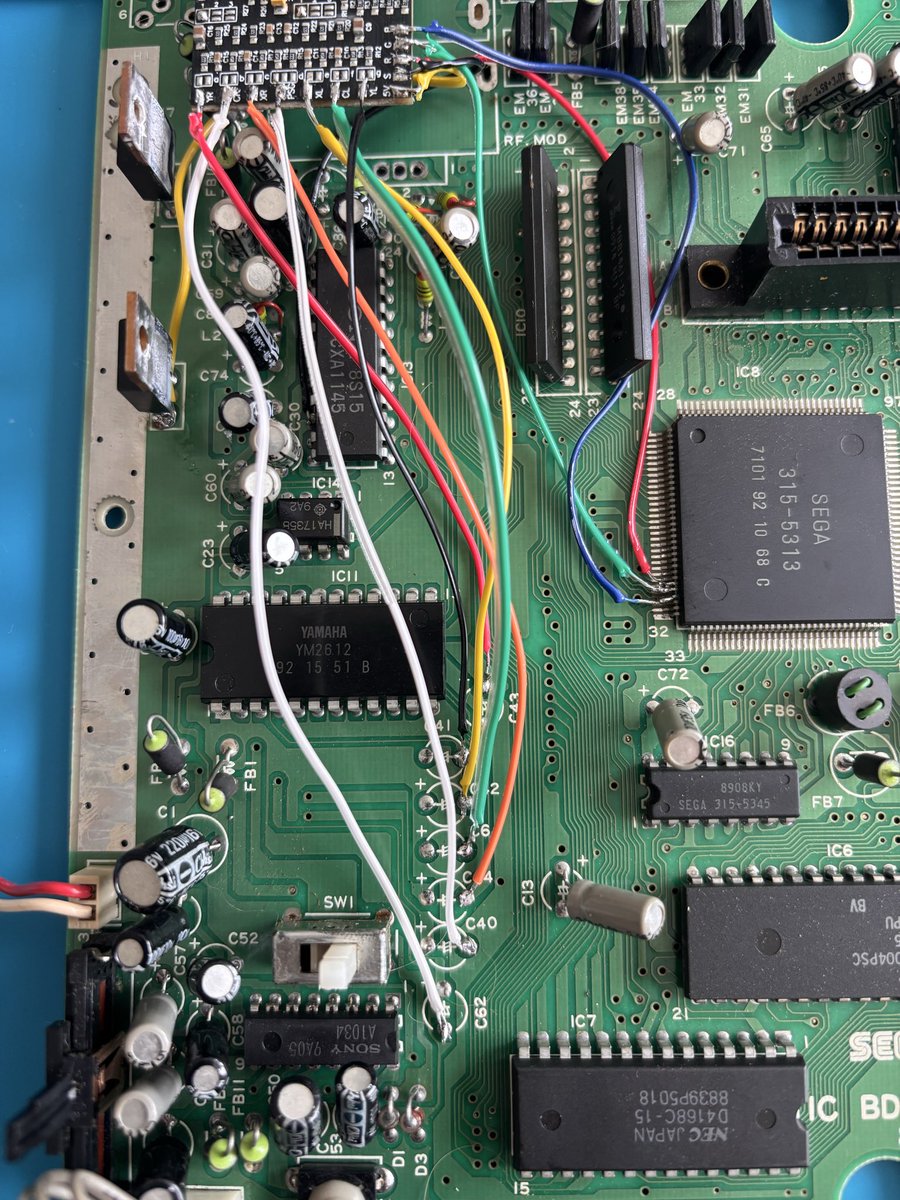

@zaxour So if I understand correctly the HL and HR points on the motherboard connect to the 3BP on any of the red points marked in this picture?
Lonely Gamer tweet media
English
1
0
0
14
Lonely Gamer
Lonely Gamer@LonelyGamerVibe·

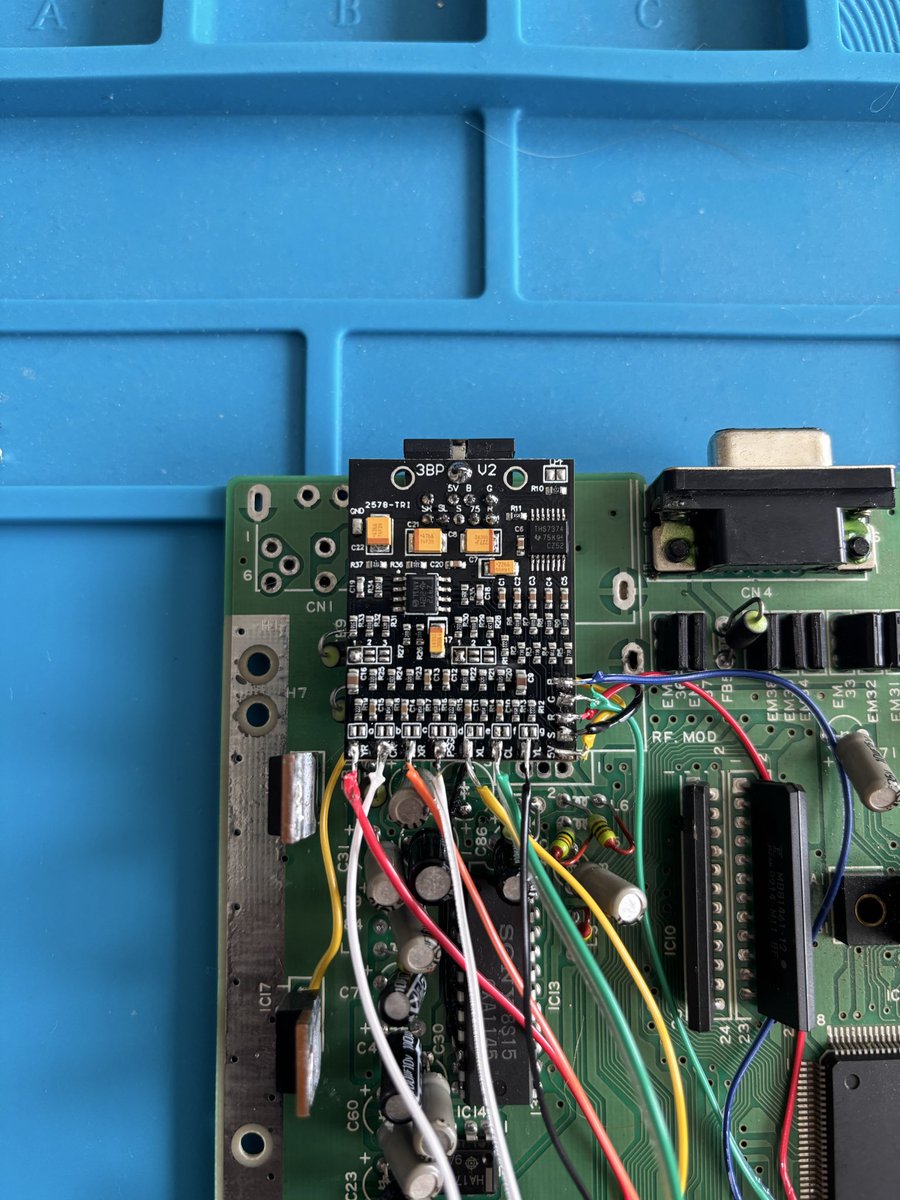

@zaxour I could use your help if possible. I’ve gotten to this point of the triple bypass following your manual from github. Since I’m not restoring CVBS, what am I missing besides the 3.5k resistors in the RGB channels? I also have no clue what to do with HL/HR…
Lonely Gamer tweet mediaLonely Gamer tweet media
English
1
0
0
23
Zaxour 阿宅
Zaxour 阿宅@zaxour·
@jeffqchen 啊,了解,沒有聽過耶 表示我們有遇到那麼沒禮貌的大陸人 😂
中文
1
0
1
138
Jeff Chen
Jeff Chen@jeffqchen·
@zaxour 灣=蛙,大陸人對於台灣人的稱呼,很不禮貌☝️
中文
1
0
0
55
Zaxour 阿宅
Zaxour 阿宅@zaxour·
@jeffqchen 什麼意思啦 雖然我知道「蛙」的意思,但不知道這個是不是個reference 😂
中文
1
0
3
143
V64jr
V64jr@v64jr·
@retroaccess @zaxour The Internet’s perpetual Sega Saturn reversed audio channel pinout strikes again. 👍😅
English
1
0
4
532
Zaxour 阿宅 retweetledi
Retro Access
Retro Access@retroaccess·

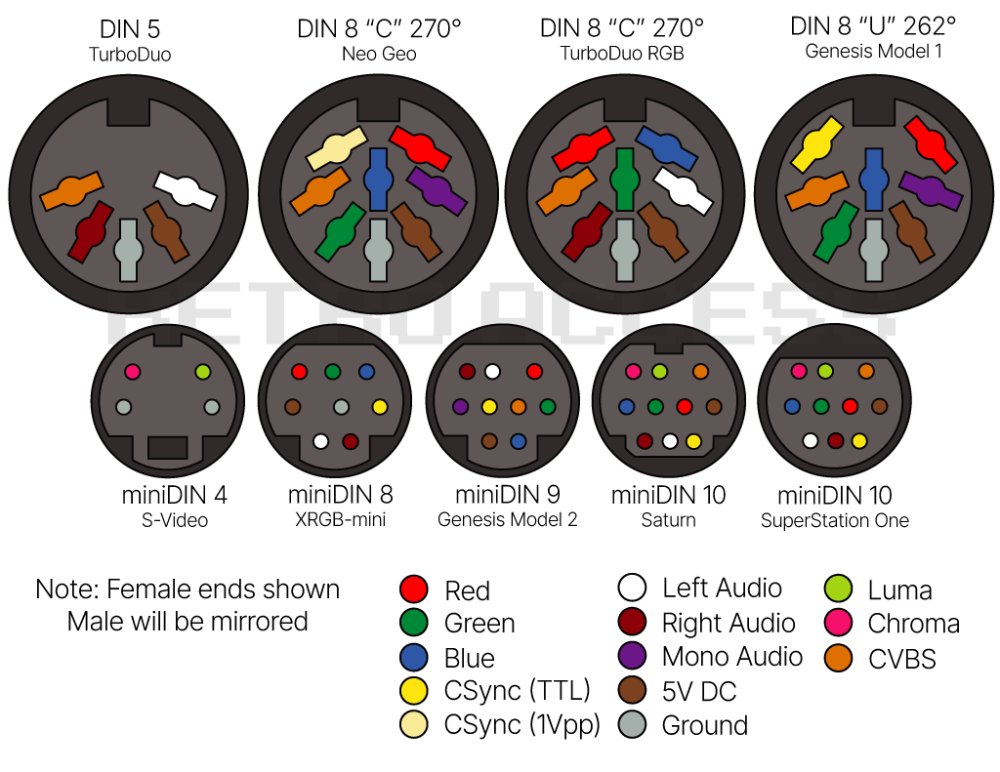

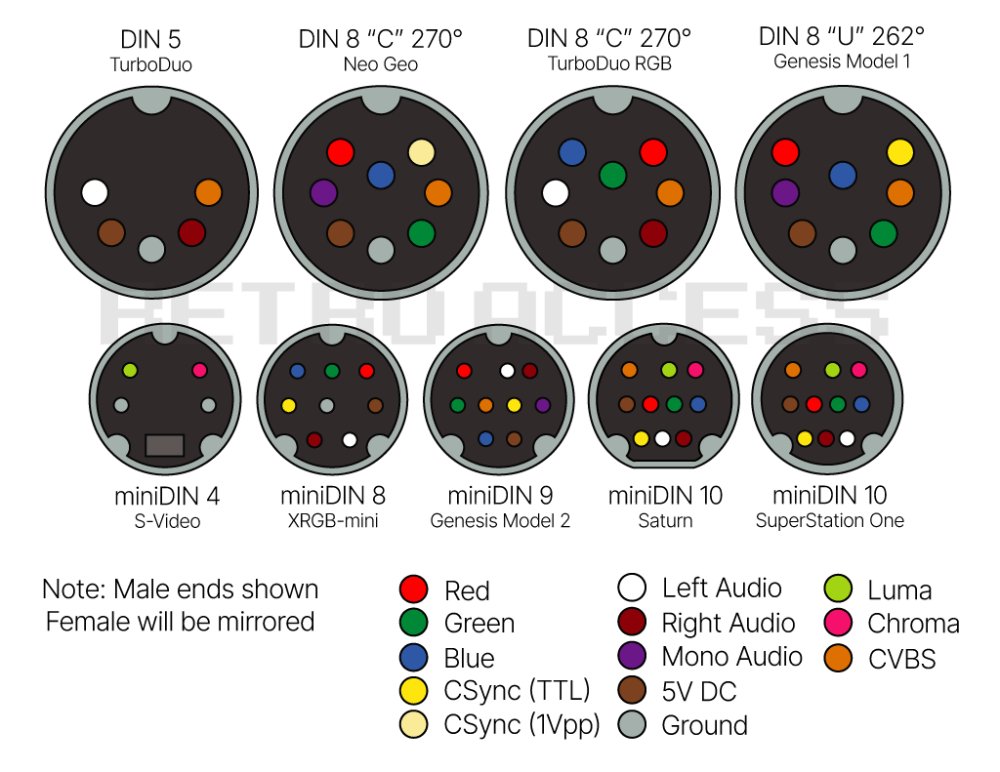

It has come to our attention that the SuperStation One does not follow the Sega Saturn pinout, instead the audio channels are swapped. Our pinout figures in the Retro Access Knowledge Center have been updated to reflect this. retro-access.com/knowledge-cent…
Retro Access tweet mediaRetro Access tweet media
English
7
21
124
8.2K
Zaxour 阿宅 retweetledi
Jeff Chen
Jeff Chen@jeffqchen·
[External USB Port for ODE for Panasonic 3DO FZ-1] An external side USB port solution for ODEs installed inside a Panasonic 3DO FZ-1 console. This is slightly different from the GoldStar one. Please be ware that soldering is required for installation. Link in reply🔗
Jeff Chen tweet mediaJeff Chen tweet mediaJeff Chen tweet media
English
7
9
89
3.9K
Zaxour 阿宅 retweetledi
Kytor
Kytor@KytorIndustries·
I have noticed there are a number of incorrect PlayStation AV Multi Out diagrams floating around in the aether, typically they show the audio channels reversed. In actuality, Left is on pin 2, right is pin 4. I put together this diagram to clarify the correct pinout.
Kytor tweet media
English
5
43
324
10.1K
Zaxour 阿宅 retweetledi
krikzz
krikzz@krikzz·
I made a small diagnostic tool called MegaDoctor. It is intended to help find hardware faults during Mega Drive / Genesis console repairs. github.com/krikzz/megadoc…
krikzz tweet media
English
26
146
786
25.2K
Zaxour 阿宅
Zaxour 阿宅@zaxour·
@v64jr @SnoopKatt @RSDCDN depends heavily on what signals HDNes requires from the PPU and what is interrupted. NESRGB and Lava both use the same set of signals, so I can say those are fine.
English
0
0
1
52
Zaxour 阿宅
Zaxour 阿宅@zaxour·

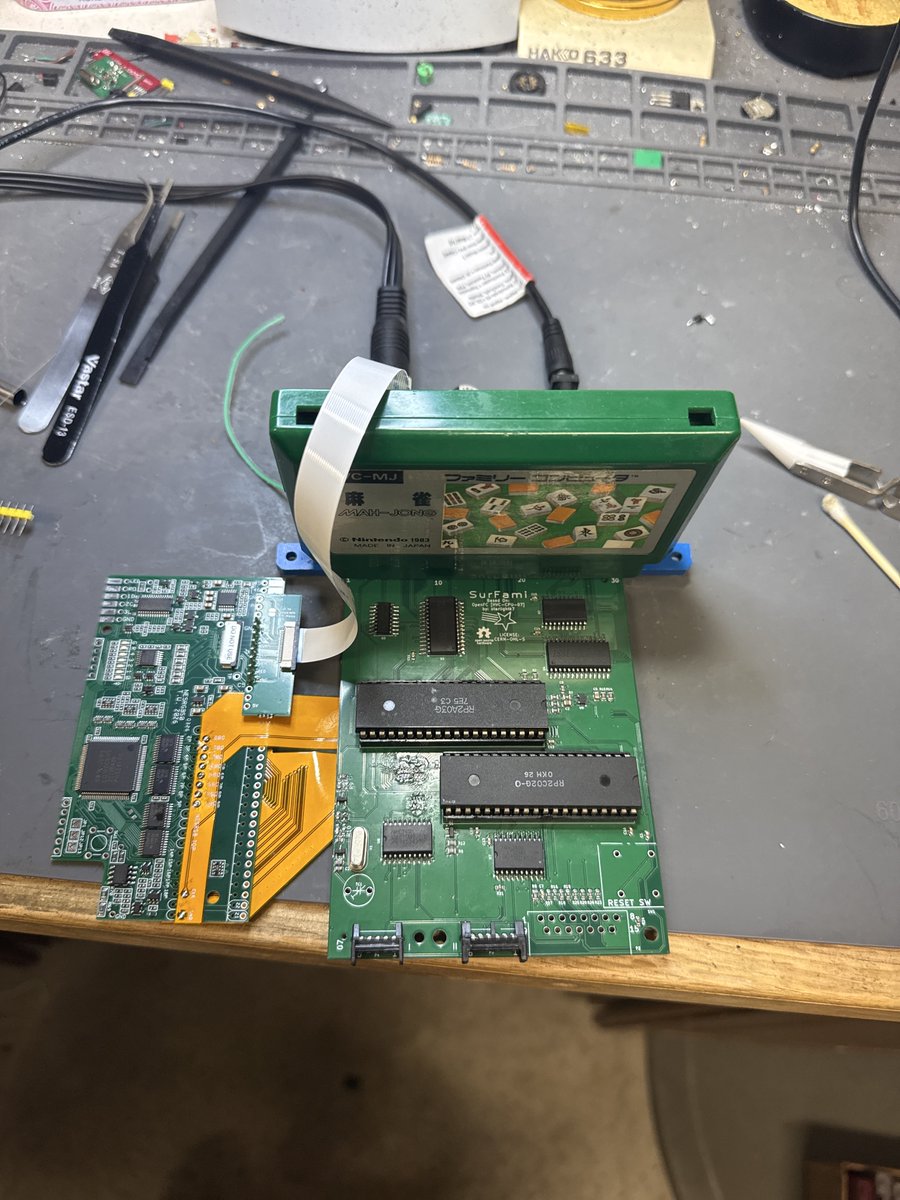

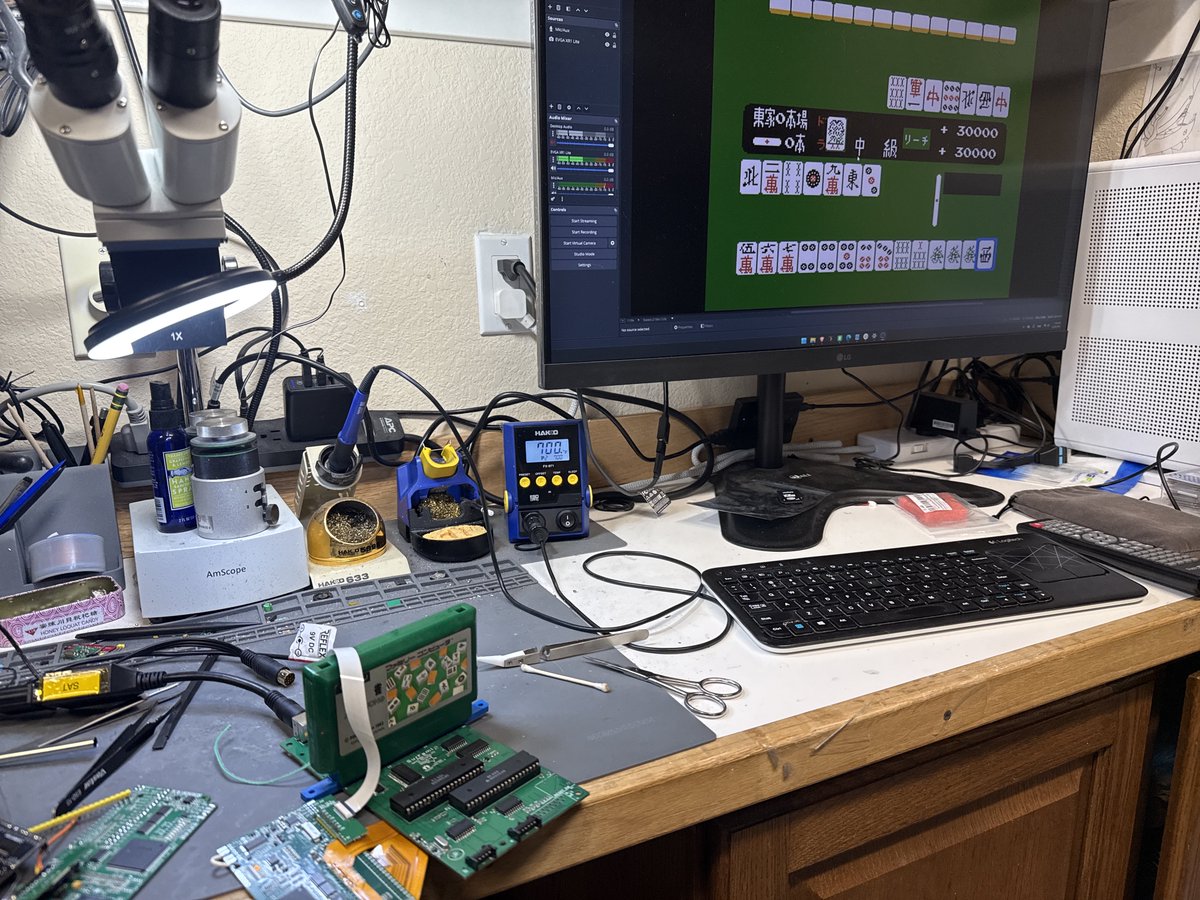

Experimenting with nesrgb V5…
Zaxour 阿宅 tweet mediaZaxour 阿宅 tweet media
English
5
5
87
3.3K
Embedr
Embedr@embedrapp·
@zaxour testing with the mah jong cart is a classy move. bench looks surgically clean too.
English
1
0
0
91
Zaxour 阿宅
Zaxour 阿宅@zaxour·
@Alfred47920954 @samson7point1 If you’re using on an original NES board, no worries. SMTendo has additional ground planes, which bring some capacitance - the resistors are added to dampen the step response, otherwise it crashes
English
1
0
1
19
Alfred Reis
Alfred Reis@Alfred47920954·
@zaxour @samson7point1 I noticed some extra resistors and jumper wires were added. Are there any known issues with the open-source PPU Lite module? I’ve also placed an SMT assembly order with JLCPCB.😢😢
English
1
0
0
33
Zaxour 阿宅
Zaxour 阿宅@zaxour·
PPU-LITE is a really cool open source project, but there were some things I wanted to change about the designs, so I made a remix! It's about 14mm narrower than the original, but about as deep, and utilizes a 4 layer stackup.
Zaxour 阿宅 tweet media
English
5
14
121
4.8K
Fytchii
Fytchii@FytchiiAD·
@zaxour im super interested in what you're running this off, any test consoles ive use have all been toploaders or my own av fami, i've never heard of this open source board! this is super neat huh
English
1
0
0
44
SnoopKatt
SnoopKatt@SnoopKatt·
@zaxour @RSDCDN But could your flexes be used to install this on a stock NES without desoldering the PPU?
English
1
0
0
85
Zaxour 阿宅
Zaxour 阿宅@zaxour·
@RSDCDN Well…this is a surface mount Famicom, so the PPU would have to come from somewhere, but this allows you to solder the PPU in so you can use the original eject lever
English
1
0
4
287
