A quick welcome to all new followers over here. I am Atul and I make electronic project as a hobby and have been for the best part of 7 years. In some cases, I occasionally document these projects on my site and YT page. 1/6

There are 3 solutions to this 1) A shotkkey diode (or any diode with low forward bias voltage) at the USB to prevent back flow and also at the output of the DC-DC 2) simply isolate the dc-dc and USB. Even without 5V, even if grounds are combined, data tranfer will occur to the SBC even if powered by the DC DC. Your PC hence will be completely isolated. 3) you can use a MOSFET to change the supply of priority such that when the DC-DC is connected, the USB wont be used, but when the USB is connected, power will only flow from the USB (Can also be implemented with a telecom Relay).

回路初心者で質問です。 オンボードマイコンでUSB給電とDCDC給電を同時に行っても、DCDCに逆流(?)してDCDCやその間のSBDが壊れないようにするにはどうすればいいのですか? USBケーブルとマイコンの改造以外でお願いします

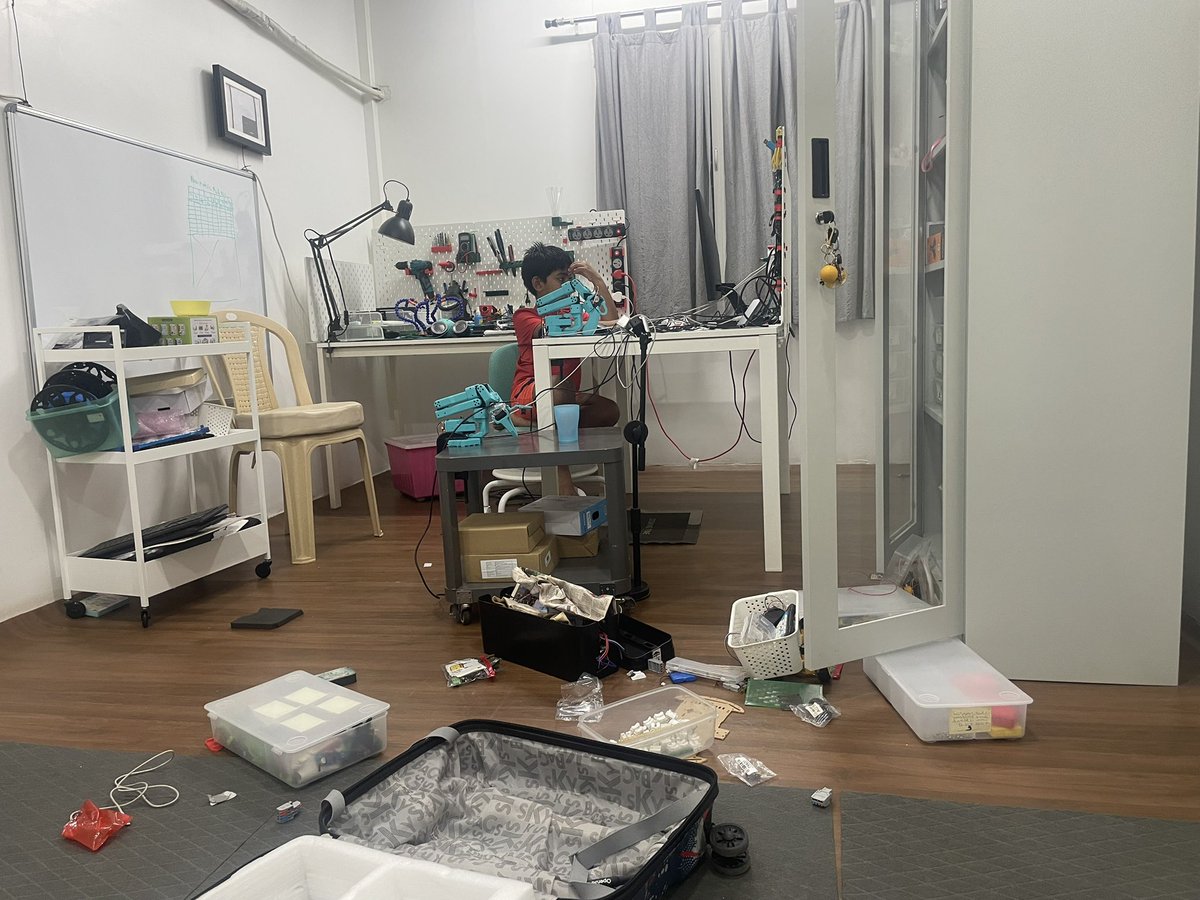

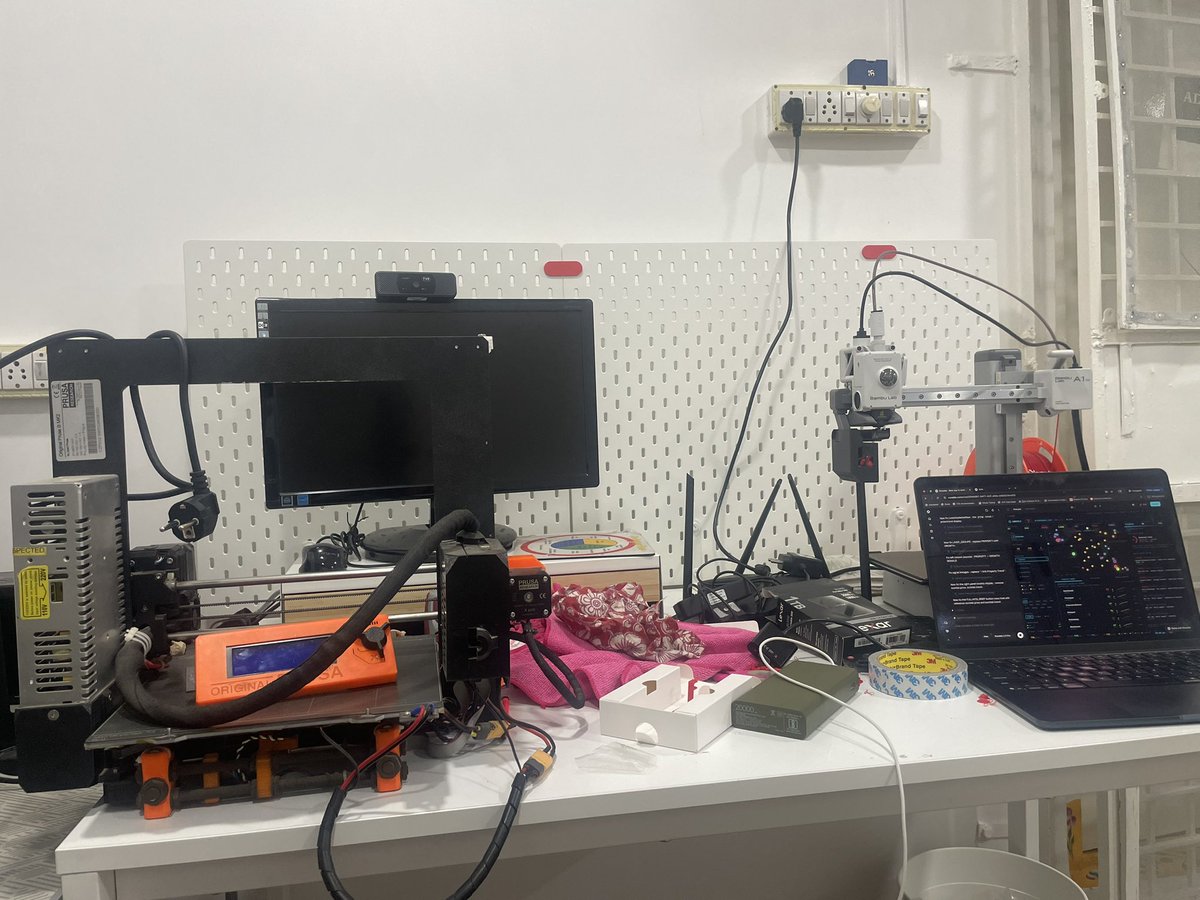

@CaptVenk Its never "mess"❌️. Its simply Organised Chaos👍.

Tidyness is temporary. Mess is permanent. Accepted this reality.

@JeremySCook Inductive spike at startup resetting the chip probably, a diode in series and is the chip being powered by the ISP programmer or an external power supply? External supply might have a better result probably.

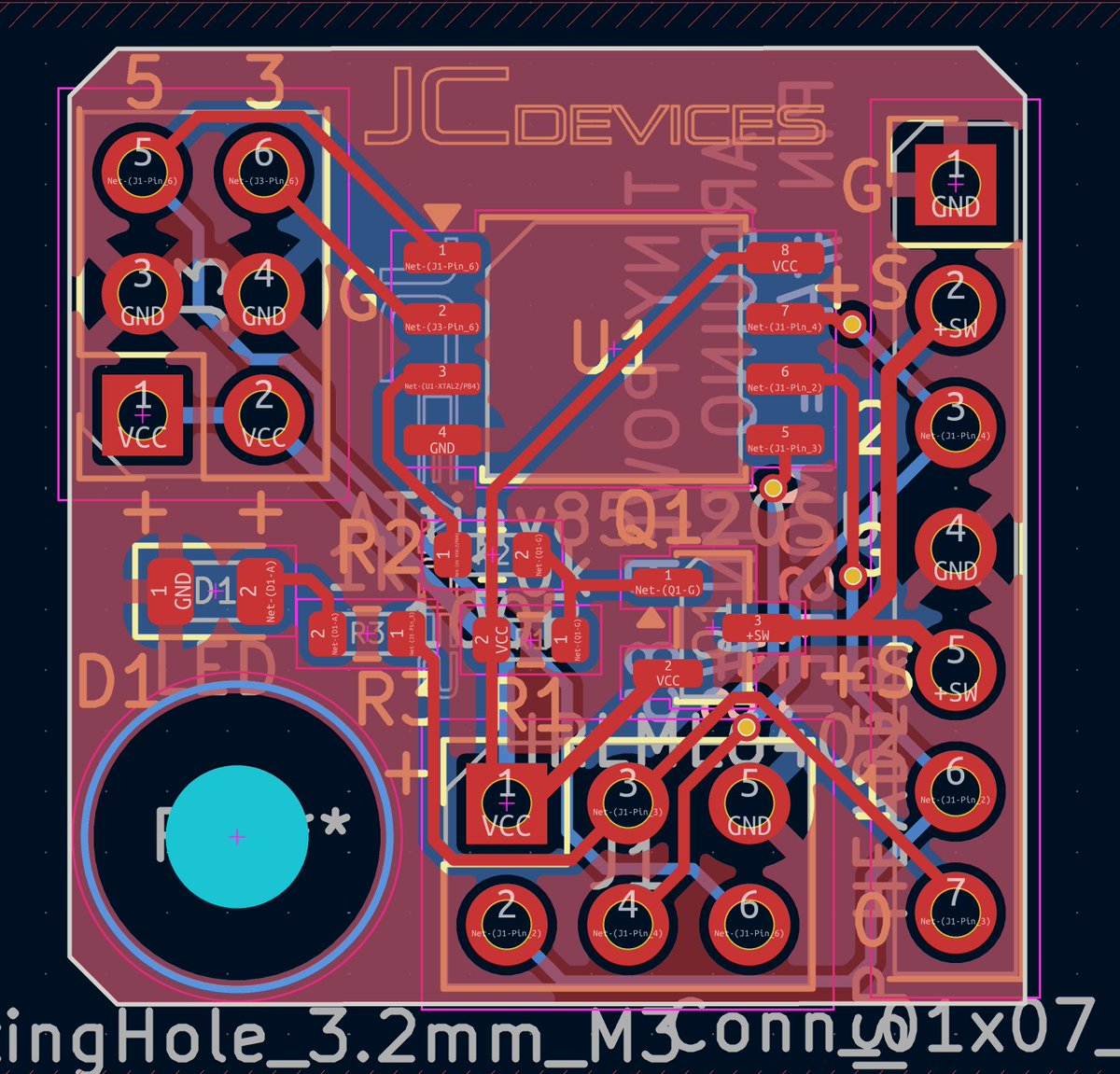

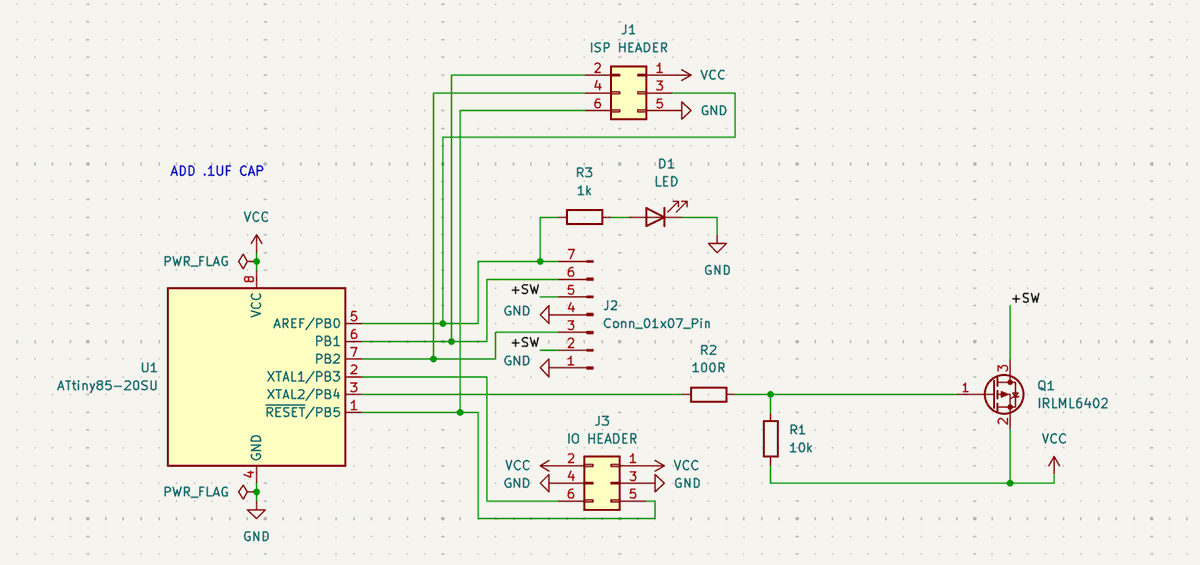

Trying to use this to power a hobby servo and have been getting some strange behavior - resets apparently, works intermittently. Thoughts? Tried using a .1 uf cap on the VCC of the ATTiny chip and some other combinations of caps at +SW and VCC.

New PCB! @MicrochipMakes @JLCPCB

DIP 8 form factor LED Driver with nA deepsleep power draw. An atrivatech revolution indeed. Also no streaking even at 1/6000 shutter speed. Suitable for recording environments as well.

If you don't mind loosing 1.4V and want reverse polarity protection, use a bridge rectifier with 4 diodes (in DC).

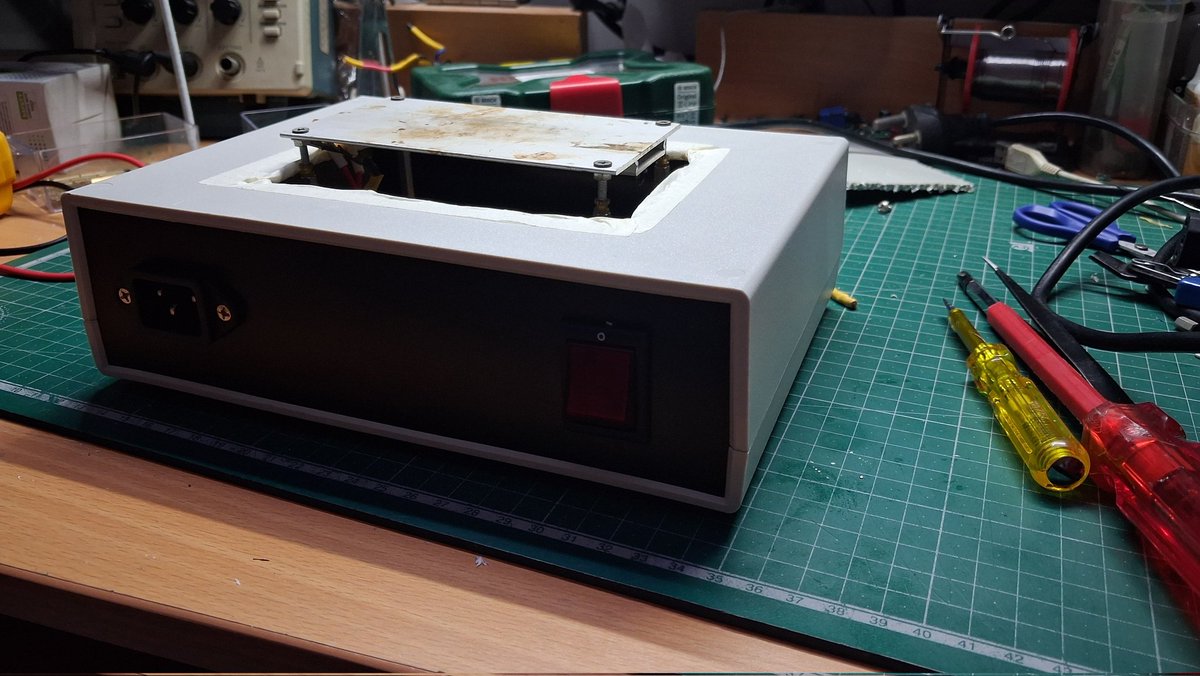

Succesfully integrated my DIY soldering hot plate into a proper case with protection. No more flimsy MDY shaking.

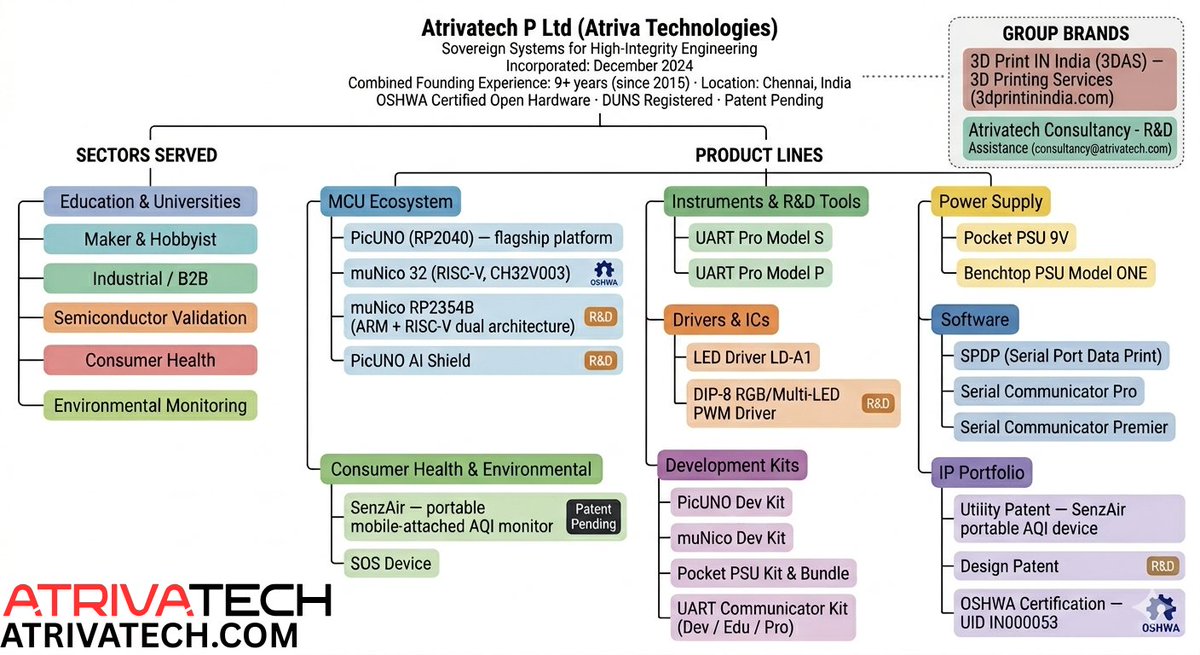

At Atrivatech, we serve some of the key industries in the electronics space all the way from ideation (With our MCU ecosystems) all the way to implementation (With our consultancy). Parallelly, we also offer R&D tools to enable businesses. For the industry clients, we have special modular low power PWM LED Drivers (Our LD-A/BX series) and special chip offerings (LD-M Series, for RGB LEDs, patterned lighting). One of the first offerings from Atrivatech (initially as ESC crasci) was the SOS Device which pioneered with a unique IOT based worldwide notifying solution which now is a part of our key R&D Portfolio while our project SenzAir (Almost hitting the market soon) is a portable mobile phone connectable AQI solution from our consumer product division. IP wise, patent and open-source contributions aside, we also have custom protocols and other hardware IP as well. Very soon, we will be expanding our Industrial division with some new offerings related to device safety. Stay tuned. If any of these seem interesting, feel free to connect!

@brahma_4u Standardisation testing and quality control of India. They have specific checks for biometric devices and CCTVs

@atulresc Ohh ok what's STQC?

How are they verifying it?

@_devalopr Misumi?

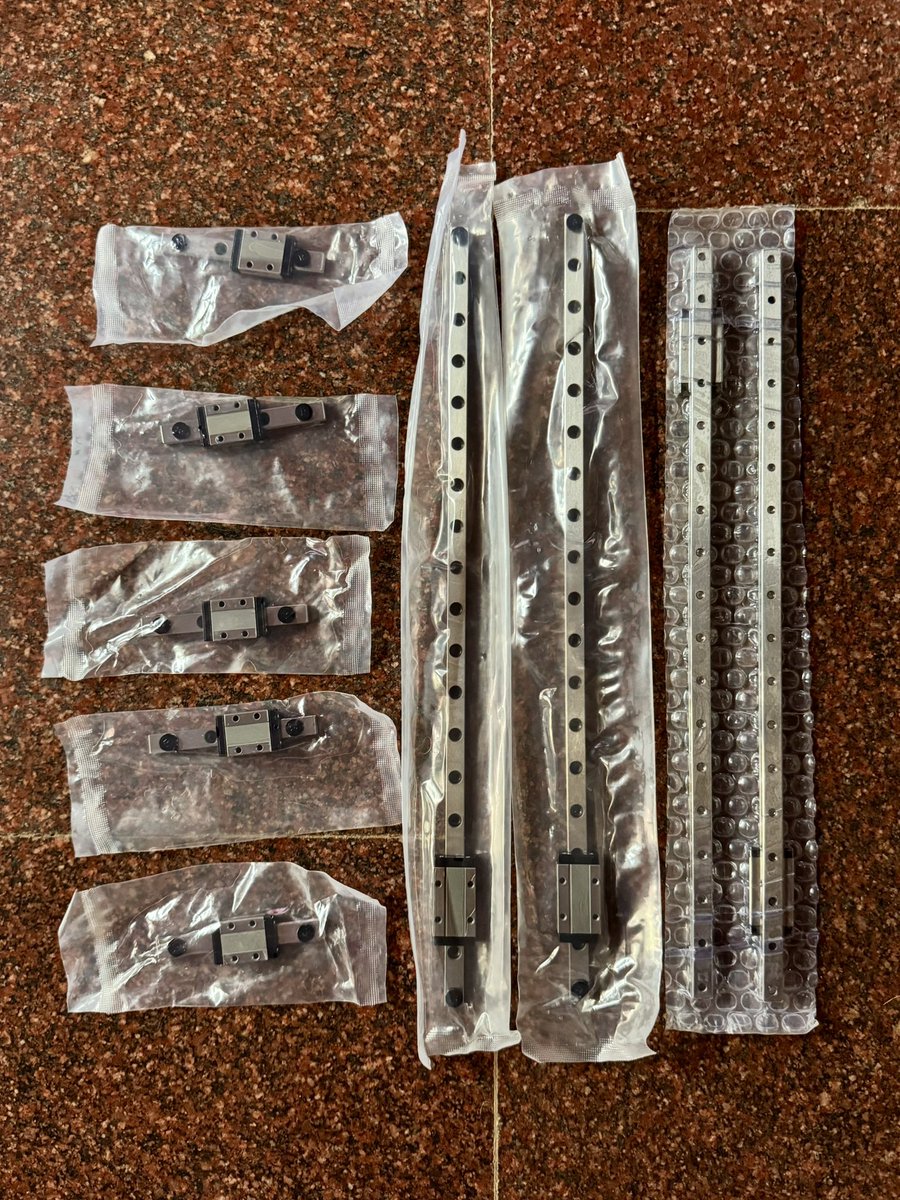

Our first import as a company. I have personally imported 20-30 of these rails before tho. This is getting expensive as USD is getting more expensive. It’d be great if someone made these rails in India at the same quality and similar price point. If not, we’ll be making this internally at some point. There’s a lot of performance to be gained by optimising the geometry of these rails in some applications :)

Experimentations this weekend.

@ivishaltejwani Dubakoor (duplicate) chips likely. Very common with Max485 and other maxim Chips.

assembled pcb cheaper than plain IC make it make sense @robulabs

Super simple dual rail power supply with an Op-Amp

Building an annoying device.

@karthikRanga92 @AgamRobotics The Indian mind cannot comprehend the power of R&D and innovation usually.

Made 2 posts. We built our own drone, 80% indigenous designed and developed inhouse by @AgamRobotics right from avionics parts, frames, etc. But not much response 😔 Look at the noise I made regarding the imports and people are going wild. Some are even fighting with me.

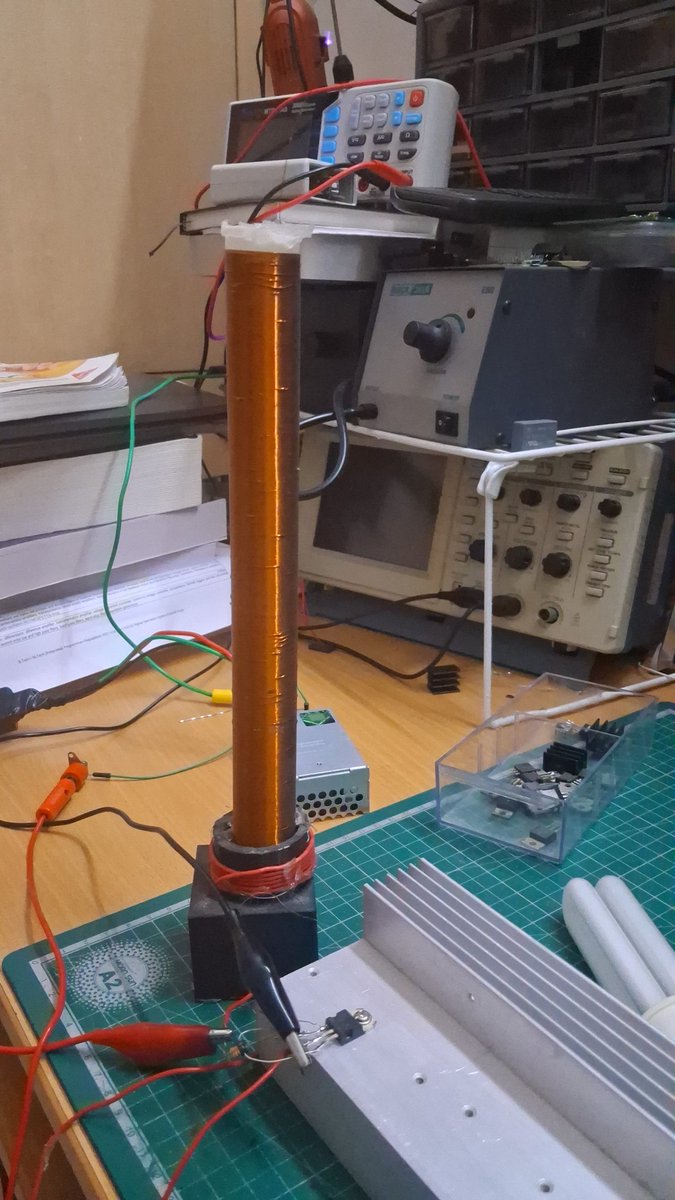

Coil continues to work after 1+ year on the shelf.

registration**

Tomorrow is the last date for registering to the PicUNO innovation challenge, a contest being conducted by us to see who is able to utilise the PicUNO the best, registerations are still open at atrivatech.com/picuno-innovat… . First place gets Rs 9K and participation certificates for all. Dont miss this opportunity.
